Digital Key Eye Point 8-291K and 8-292K

產品料號8-291K

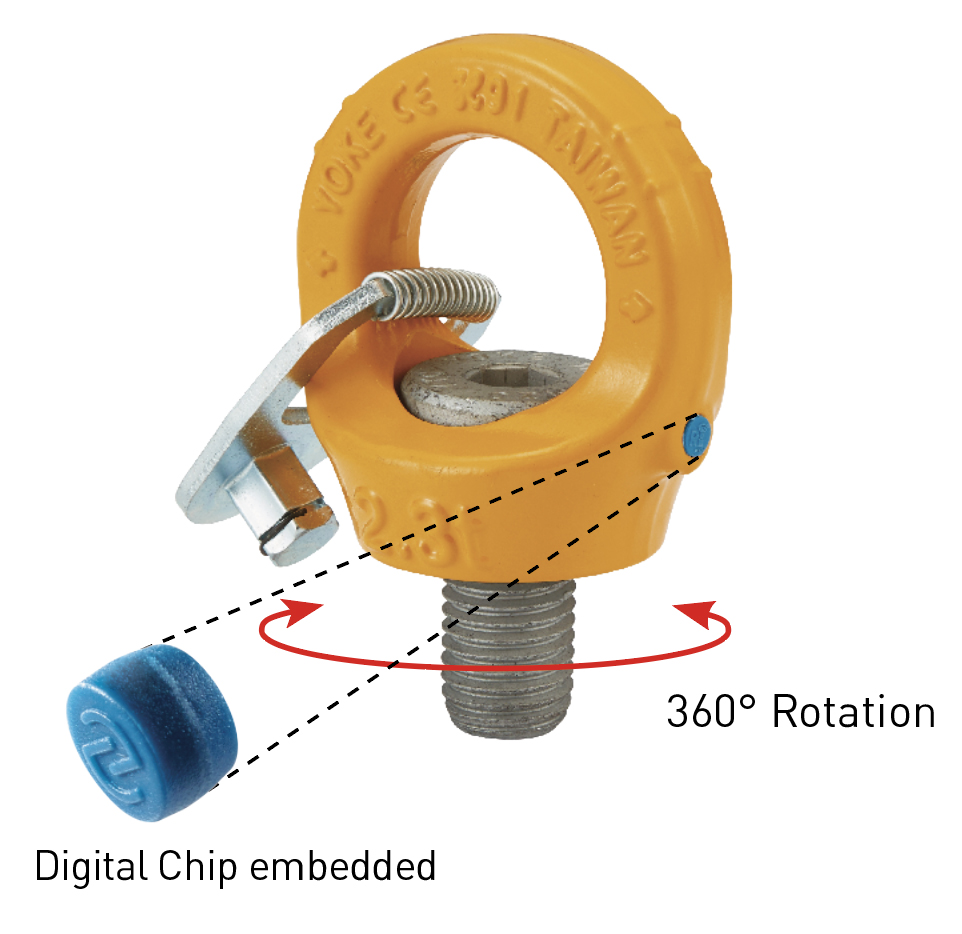

• Rotates through 360° adjustable in the direction
of the load.
• Manufactured from alloy steel, quenched and
tempered.
• Tested in accordance with EN1677-1.
• Certified by DGUV GS-OA 15-04
• Load rated parts are 100% magnaflux crack
detected.
• Individual forged parts and cap screw are
traceable to Test Certification.
• Bolts are Metric thread.
• Proof tested to 2.5 times the WLL.
• Fatigue rated to 20,000 cycles at 1.5 times the
WLL.
• All YOKE Lifting points meet or exceed all the
requirements of ASME B30.26.
• Quick and simple assembly, just a tapped hole is
required.

產品比較規格表

公制（毫米）
英制（英吋）

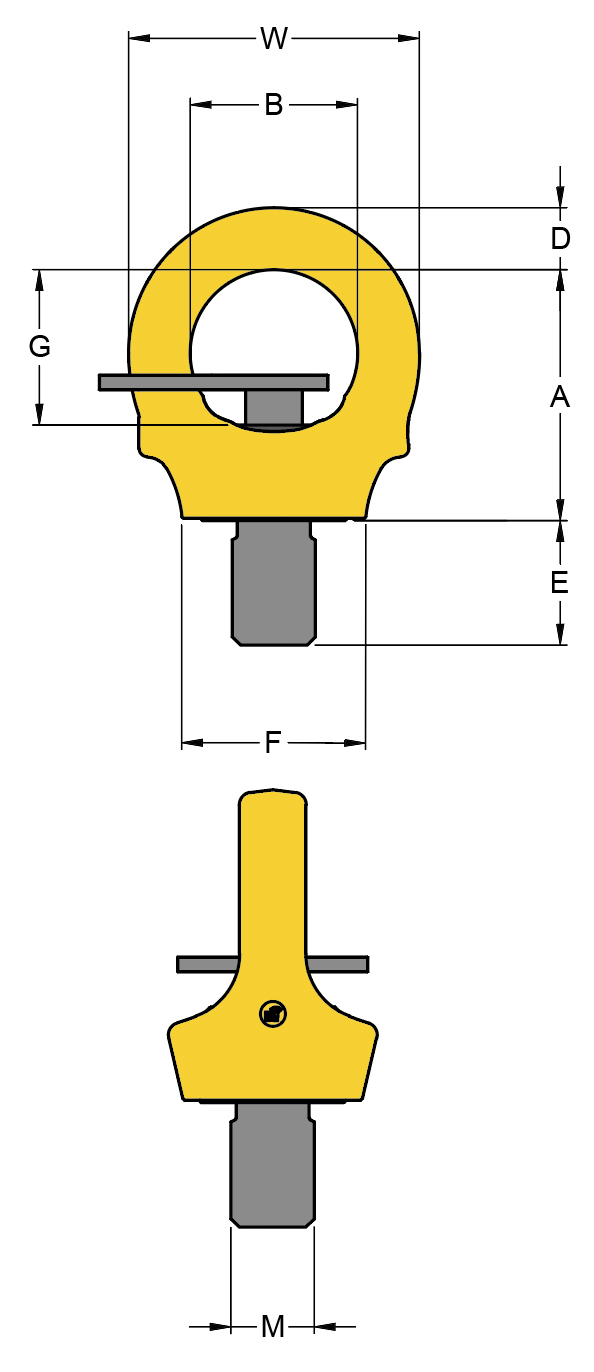

Item NO.	Compare	Dimensions	Net Weight	Torque in	Dimensions									Thread version		Working Load Limit
		F	kilogram 1	Nm	J	W	S	H	G	D	C	B	A1	Pitch	M	Tonnes
8-291K-001	加入比較	23	0.1	5	33	34	6	4	19	7	7	20	30	1	M 6	0.10
8-291K-003	加入比較	25	0.1	10	41	44	6	6	24	9	9	25	38	1.25	M 8	0.30
8-291K-004	加入比較	25	0.1	10	41	44	6	6	24	9	9	25	38	1.5	M 10	0.40
8-291K-007	加入比較	33	0.2	10	47	52	8	9	30	11	10	30	45	1.75	M 12	0.75
8-291K-015	加入比較	35	0.4	30	56	61	10	11	34	13	14	35	52	2	M 16	1.50
8-291K-023	加入比較	44	0.6	70	65	70	12	15	37	15	16	40	60	2.5	M 20	2.30
8-291K-032	加入比較	53	1.1	150	78	84	14	19	47	18	19	49	72	3	M 24	3.20
8-291K-045	加入比較	62	2.1	350	95	105	17	23	59	22	24	61	91	3.5	M 30	4.50
8-291K-070	加入比較	76	3.7	410	114	126	22	31	72	27	29	73	110	4	M 36	7.00
8-291K-090	加入比較	89	5.8	550	132	147	24	38	81	32	34	83	128	4.5	M 42	9.00
8-291K-120	加入比較	105	8.6	550	150	168	27	44	94	37	38	95	145	5	M 48	12.00
8-291K-140	加入比較	124	11	800	166	178	27	49	92	43	40	102	148	5.5	M 56	16.00
8-291K-150	加入比較	124	11.8	800	166	178	27	49	92	43	40	102	148	6	M 64	18.00

Item NO.	Compare	Dimensions	N.W.	Torque in	Dimensions									Thread version		Working Load Limit
		F	lbs	Nm	J	W	S	H	G	D	C	B	A1	TPI	M	Tonnes
8-292K-003	加入比較	0.99	0.3	10	1.6	1.73	0.25	0.24	0.92	0.37	0.33	1	1.49	18 UNC	5/16	0.30
8-292K-004	加入比較	0.99	0.3	10	1.6	1.73	0.25	0.24	0.92	0.37	0.33	1	1.49	16 UNC	3/8	0.40
8-292K-007	加入比較	1.3	0.5	10	1.85	2.05	0.31	0.37	1.16	0.43	0.39	1.19	1.79	13 UNC	1/2	0.75
8-292K-015	加入比較	1.38	0.9	30	2.2	2.4	0.37	0.45	1.32	0.51	0.55	1.39	2.06	11 UNC	5/8	1.50
8-292K-023	加入比較	1.74	1.4	70	2.56	2.76	0.5	0.6	1.47	0.58	0.63	1.59	2.38	10 UNC	3/4	2.30
8-292K-025	加入比較	1.74	1.5	150	2.56	2.76	0.5	0.6	1.47	0.58	0.63	1.59	2.38	9 UNC	7/8	2.30
8-292K-032	加入比較	2.08	2.5	150	3.07	3.31	0.56	0.75	1.79	0.7	0.75	1.91	2.85	8 UNC	1	3.20
8-292K-045	加入比較	2.43	4.7	350	3.75	4.13	0.63	0.91	2.23	0.88	0.94	2.38	3.57	7 UNC	1 1/4	4.50
8-292K-070	加入比較	2.99	8.7	410	4.49	4.96	0.87	1.2	2.71	1.05	1.14	2.85	4.32	6 UNC	1 1/2	7.00
8-292K-090	加入比較	3.51	12.7	550	5.2	5.79	1	1.5	3.09	1.26	1.34	3.26	5.02	5 UNC	1 3/4	9.00
