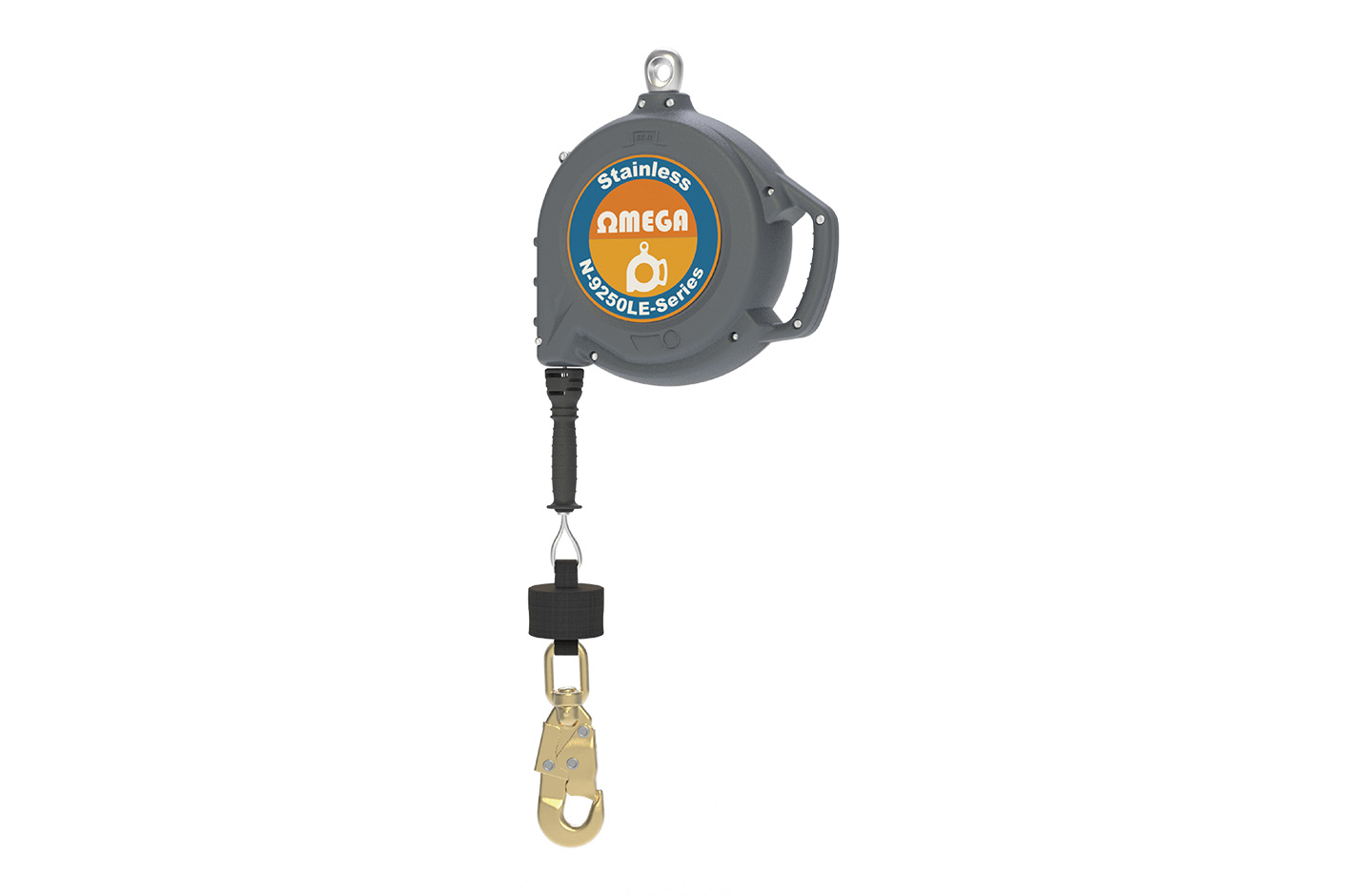

OMEGA-Stainless Cable Self-Retracting Device Horizontal Application
Item No.N-9250LECE
The OMEGA SERIES sets a new standard in fall protection with its advanced spring-loaded rubber handle, specially designed to minimize unintentional cable lock-ups and ensure smooth, uninterrupted performance. Its ergonomic carrying handle makes transportation around the job site effortless, adding convenience to demanding tasks. Additionally, the swivel top connection point reduces lifeline snagging or tangling, enhancing both safety and efficiency. Combining innovative features with user-focused design, the OMEGA SERIES delivers exceptional reliability and ease of use in every application.
Class 2
| Complies with | EN360-2023 |
| Housing | Thermoplastic |
| Cable | 3/16” (5.3mm) Stainless steel |
| Max Arresting Distance(ANSI) | 42 inches |
| Max Arresting Force(ANSI) | 1,350 lbs |
| Max Arrest Distance (EN) | 1.4 m |
| Max Arresting Force (EN) | 6 kN |
| Capacity(ANSI) | 310 lbs |
| Capacity(OSHA) | 420 lbs |
| Capacity(EN) | 140 kgs |

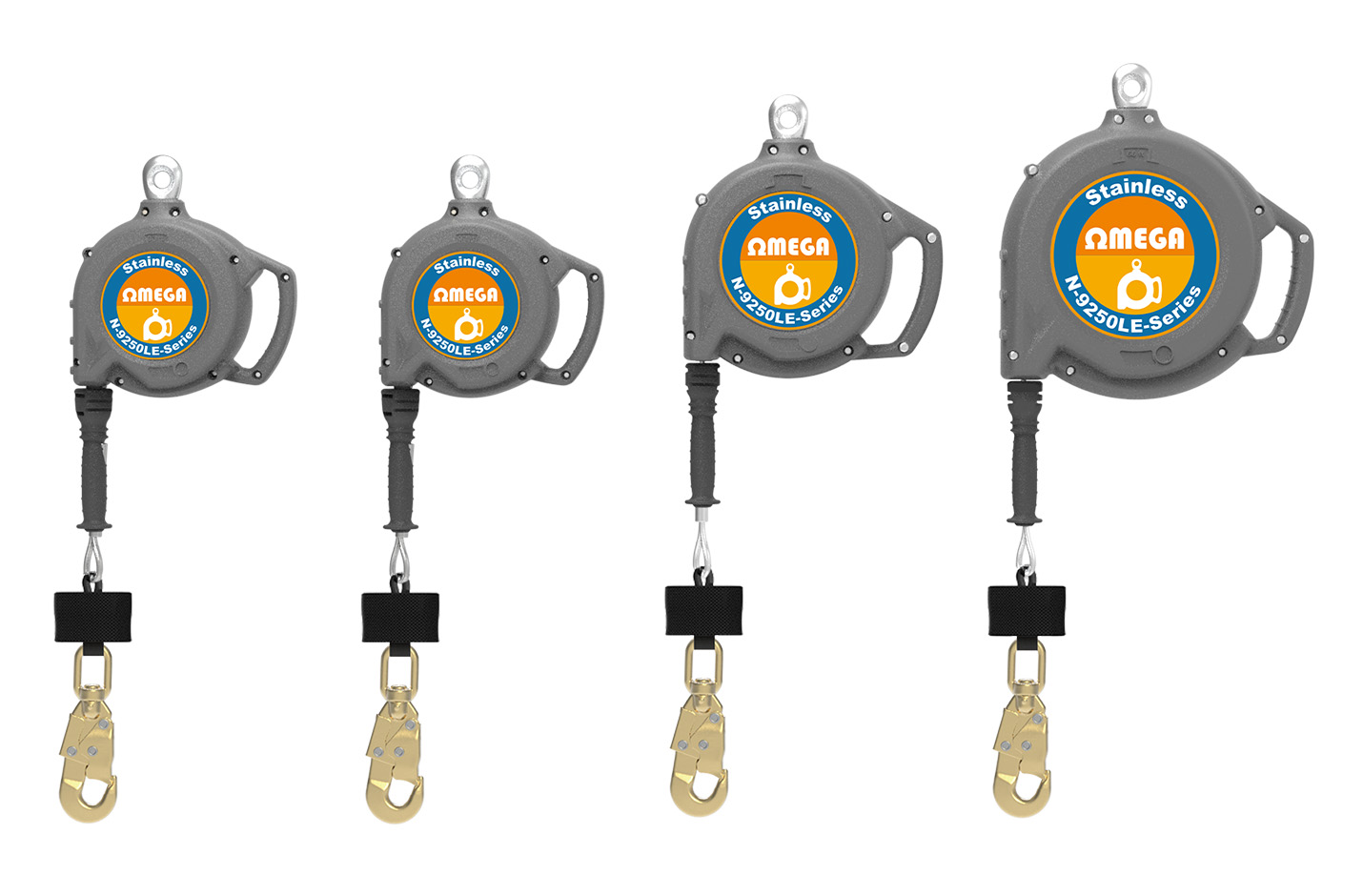

| Item NO. | Compare | Net Weight | Working Length | Dimension(A) | Dimension(B) | Dimension(C) | Meets | Housing | Cable | Capacity | Max Arresting Distance | Max Arresting Force | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kg | M | mm | mm | mm | EN360-2023 | ANSI | OSHA | EN | EN | EN | ||||
| N-9250LECE-20 | Compare | 4 | 6 | 860 | 226 | 86 | ✔ | Thermoplastic | 3/16” (5.3mm) Stainless steel | 310 lbs | 420 lbs | 140 kgs | 1.4 m | 6 kN |
| N-9250LECE-30 | Compare | 4.7 | 9.1 | 860 | 226 | 86 | ✔ | Thermoplastic | 3/16” (5.3mm) Stainless steel | 310 lbs | 420 lbs | 140 kgs | 1.4 m | 6 kN |
| N-9250LECE-50 | Compare | 7.1 | 15 | 920 | 259 | 97 | ✔ | Thermoplastic | 3/16” (5.3 mm) Stainless steel | 310 lbs | 420 lbs | 140 kgs | 1.4 m | 6 kN |
| N-9250LECE-66 | Compare | 9.4 | 20 | 950 | 292 | 99 | ✔ | Thermoplastic | 3/16” (4.8mm) Stainless steel | 310 lbs | 420 lbs | 140 kgs | 1.4 m | 6 kN |
| Item NO. | Compare | Net Weight | Working Length | Dimension(A) | Dimension(B) | Dimension(C) | Meets | Housing | Cable | Capacity | Max Arresting Distance | Max Arresting Force | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lbs | ft | Inches | Inches | Inches | EN360-2023 | ANSI | OSHA | EN | ANSI | ANSI | ||||
| N-9250LECE-20 | Compare | 8.8 | 20 | 33.9 | 8.9 | 3.4 | ✔ | Thermoplastic | 3/16” (5.3mm) Stainless steel | 310 lbs | 420 lbs | 140 kgs | 42 inches | 1,350 lbs |
| N-9250LECE-30 | Compare | 10.4 | 30 | 33.9 | 8.9 | 3.4 | ✔ | Thermoplastic | 3/16” (5.3mm) Stainless steel | 310 lbs | 420 lbs | 140 kgs | 42 inches | 1,350 lbs |
| N-9250LECE-50 | Compare | 15.7 | 50 | 36.2 | 10.2 | 3.8 | ✔ | Thermoplastic | 3/16” (5.3mm) Stainless steel | 310 lbs | 420 lbs | 140 kgs | 42 inches | 1,350 lbs |
| N-9250LECE-66 | Compare | 20.7 | 66 | 37.4 | 11.5 | 3.9 | ✔ | Thermoplastic | 3/16” (4.8mm) Stainless steel | 310 lbs | 420 lbs | 140 kgs | 42 inches | 1,350 lbs |
