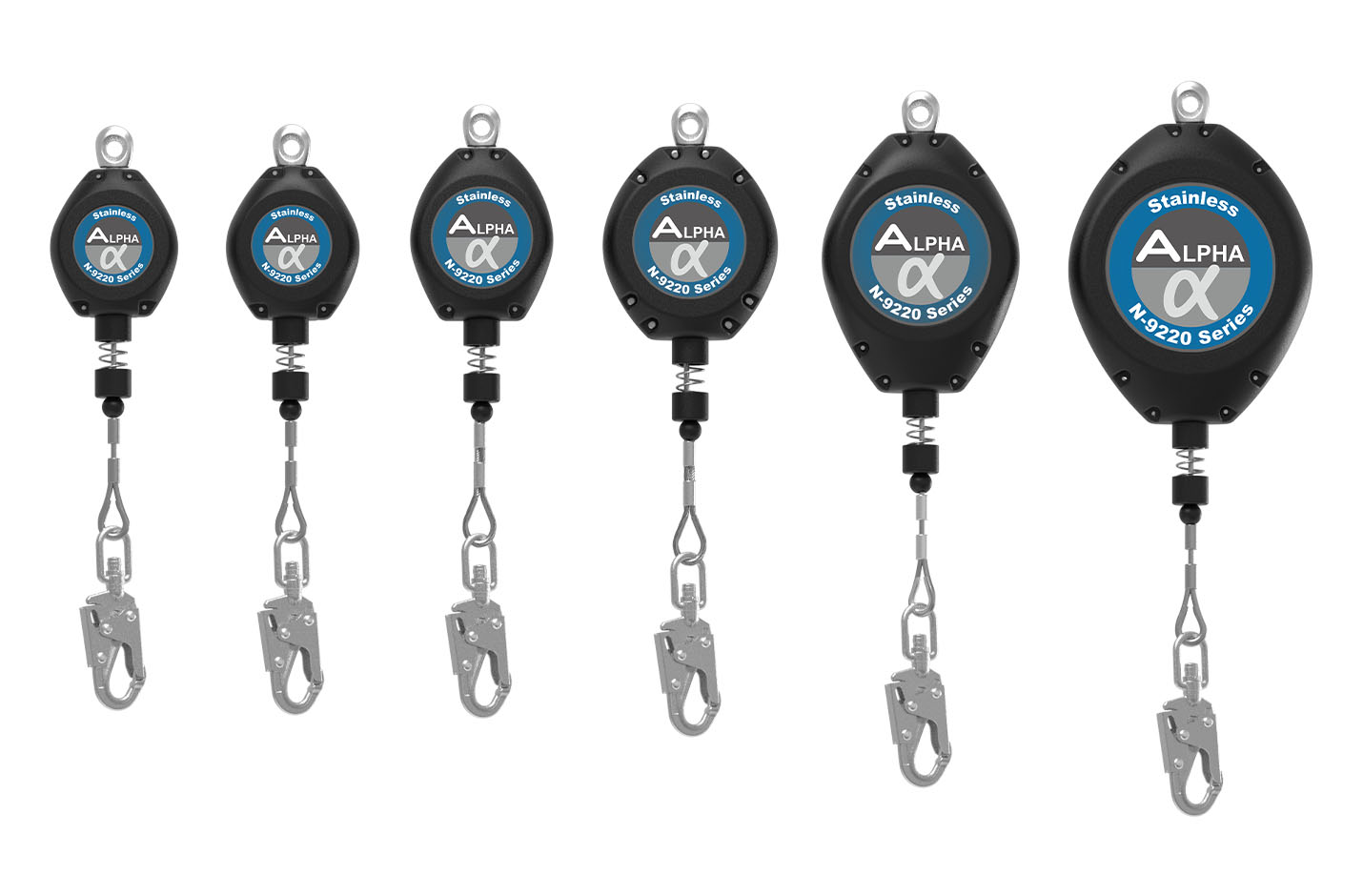

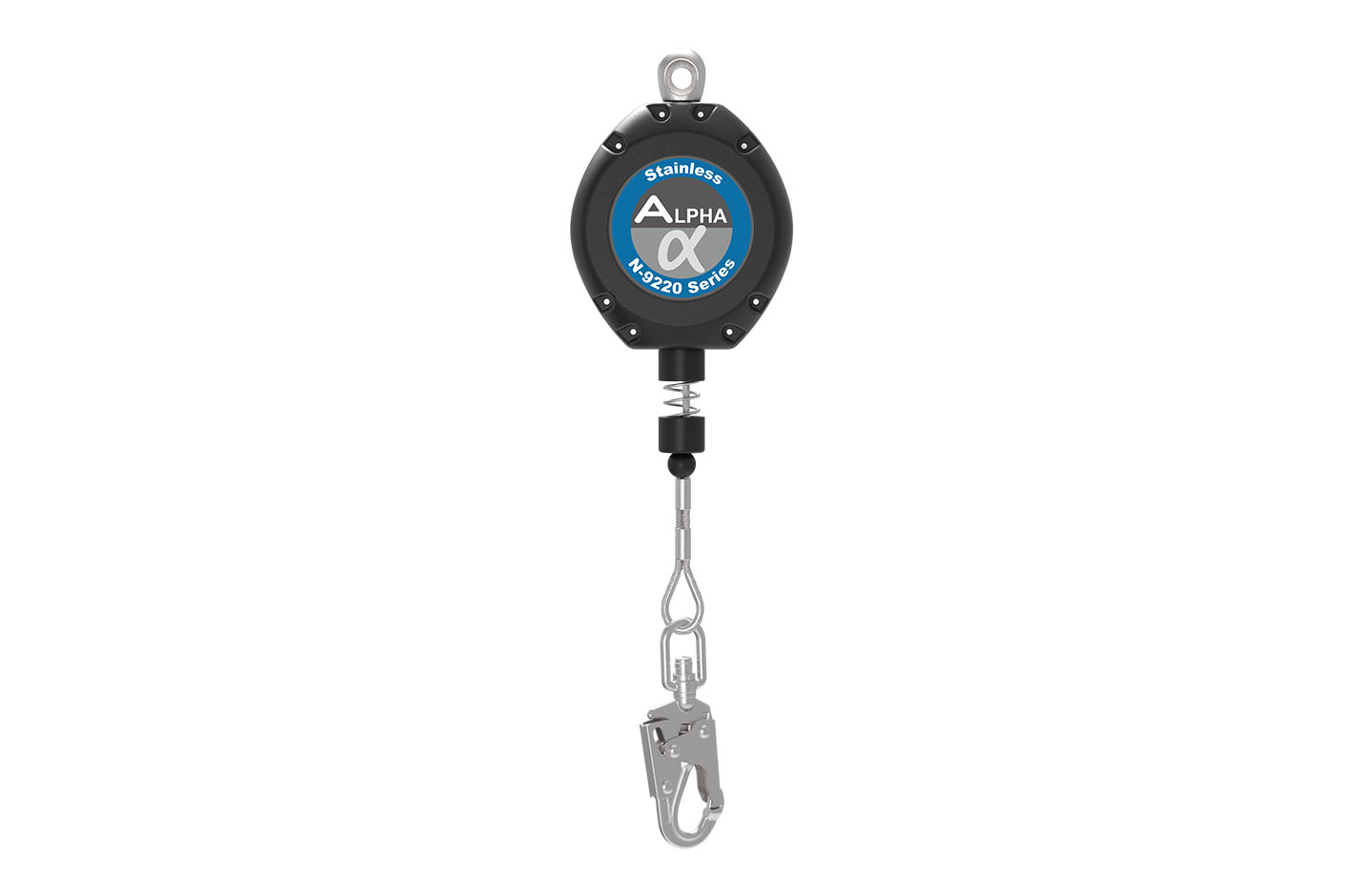

ALPHA-Stainless Cable Self-Retracting Device

Item No.N-9220
The ALPHA-Stainless Cable Self Retracting Device is a reliable, high-performance fall protection solution engineered for elevated work environments.
Compare Datasheet
Class 1
Class 1
Specifications
 Complies with  ANSI Z359.14-2021
 CE EN360-2023
 CSA Z259.2.2-17
 Housing  Thermoplastic
 Cable  3/16” (5.3mm) Stainless steel
 Max Arresting Distance(ANSI)  42 inches
 Max Arresting Force(ANSI)  1,350 lbs
 Max Arrest Distance (EN)  1.4 m
 Max Arresting Force (EN)  6 kN
 Capacity(ANSI)  310 lbs
 Capacity(OSHA)  420 lbs
 Capacity(EN)  140 kgs
Item NO. Compare Net WeightWorking LengthDimension(A)Dimension(B)Dimension(C)MeetsHousingCableCapacityMax Arresting DistanceMax Arresting Force
kgMmmmmmmANSI Z359.14-2021CSA Z259.2.2-17EN360-2023ANSIOSHAENENEN
N-9220-11 Compare 2.5 3.3 610 119 81 ✔ ✔ ✔ Thermoplastic 3/16” (5.3mm) Stainless steel 310 lbs 420 lbs 140 kgs 1.4 m 6 kN
N-9220-15 Compare 2.7 4.5 630 140 81 ✔ ✔ ✔ Thermoplastic 3/16” (5.3mm) Stainless steel 310 lbs 420 lbs 140 kgs 1.4 m 6 kN
N-9220-20 Compare 3.3 6 640 180 86 ✔ ✔ ✔ Thermoplastic 3/16” (5.3mm) Stainless steel 310 lbs 420 lbs 140 kgs 1.4 m 6 kN
N-9220-30 Compare 4.3 9.1 709 191 89 ✔ ✔ ✔ Thermoplastic 3/16” (5.3mm) Stainless steel 310 lbs 420 lbs 140 kgs 1.4 m 6 kN
N-9220-50 Compare 6.5 15 734 236 97 ✔ ✔ ✔ Thermoplastic 3/16” (5.3mm) Stainless steel 310 lbs 420 lbs 140 kgs 1.4 m 6 kN
N-9220-66 Compare 8.8 20 775 259 97 ✔ ✔ ✔ Thermoplastic 3/16” (5.3mm) Stainless steel 310 lbs 420 lbs 140 kgs 1.4 m 6 kN
Item NO. Compare Net WeightWorking LengthDimension(A)Dimension(B)Dimension(C)MeetsHousingCableCapacityMax Arresting DistanceMax Arresting Force
lbsftInchesInchesInchesANSI Z359.14-2021CSA Z259.2.2-17EN360-2023ANSIOSHAENANSIANSI
N-9220-11 Compare 5.6 11 24 4.7 3.2 ✔ ✔ ✔ Thermoplastic 3/16” (5.3mm) Stainless steel 310 lbs 420 lbs 140 kgs 42 inches 1,350 lbs
N-9220-15 Compare 6 15 24.8 5.5 3.2 ✔ ✔ ✔ Thermoplastic 3/16” (5.3mm) Stainless steel 310 lbs 420 lbs 140 kgs 42 inches 1,350 lbs
N-9220-20 Compare 7.3 20 25.2 7.1 3.4 ✔ ✔ ✔ Thermoplastic 3/16” (5.3mm) Stainless steel 310 lbs 420 lbs 140 kgs 42 inches 1,350 lbs
N-9220-30 Compare 9.5 30 27.9 7.5 3.5 ✔ ✔ ✔ Thermoplastic 3/16” (5.3mm) Stainless steel 310 lbs 420 lbs 140 kgs 42 inches 1,350 lbs
N-9220-50 Compare 14.4 50 28.9 9.3 3.8 ✔ ✔ ✔ Thermoplastic 3/16” (5.3mm) Stainless steel 310 lbs 420 lbs 140 kgs 42 inches 1,350 lbs
N-9220-66 Compare 19.4 66 30.5 10.2 3.8 ✔ ✔ ✔ Thermoplastic 3/16” (5.3mm) Stainless steel 310 lbs 420 lbs 140 kgs 42 inches 1,350 lbs
