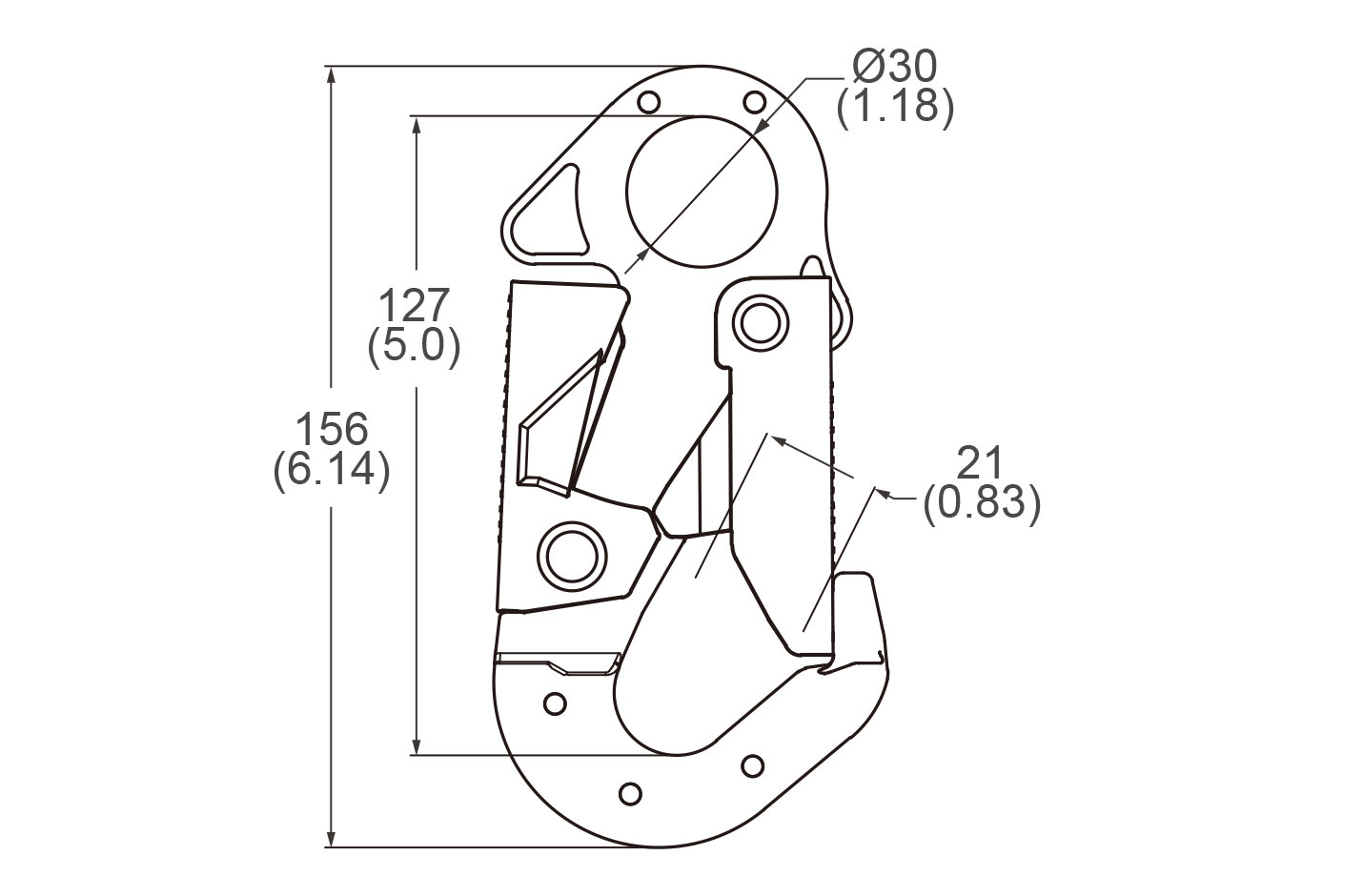

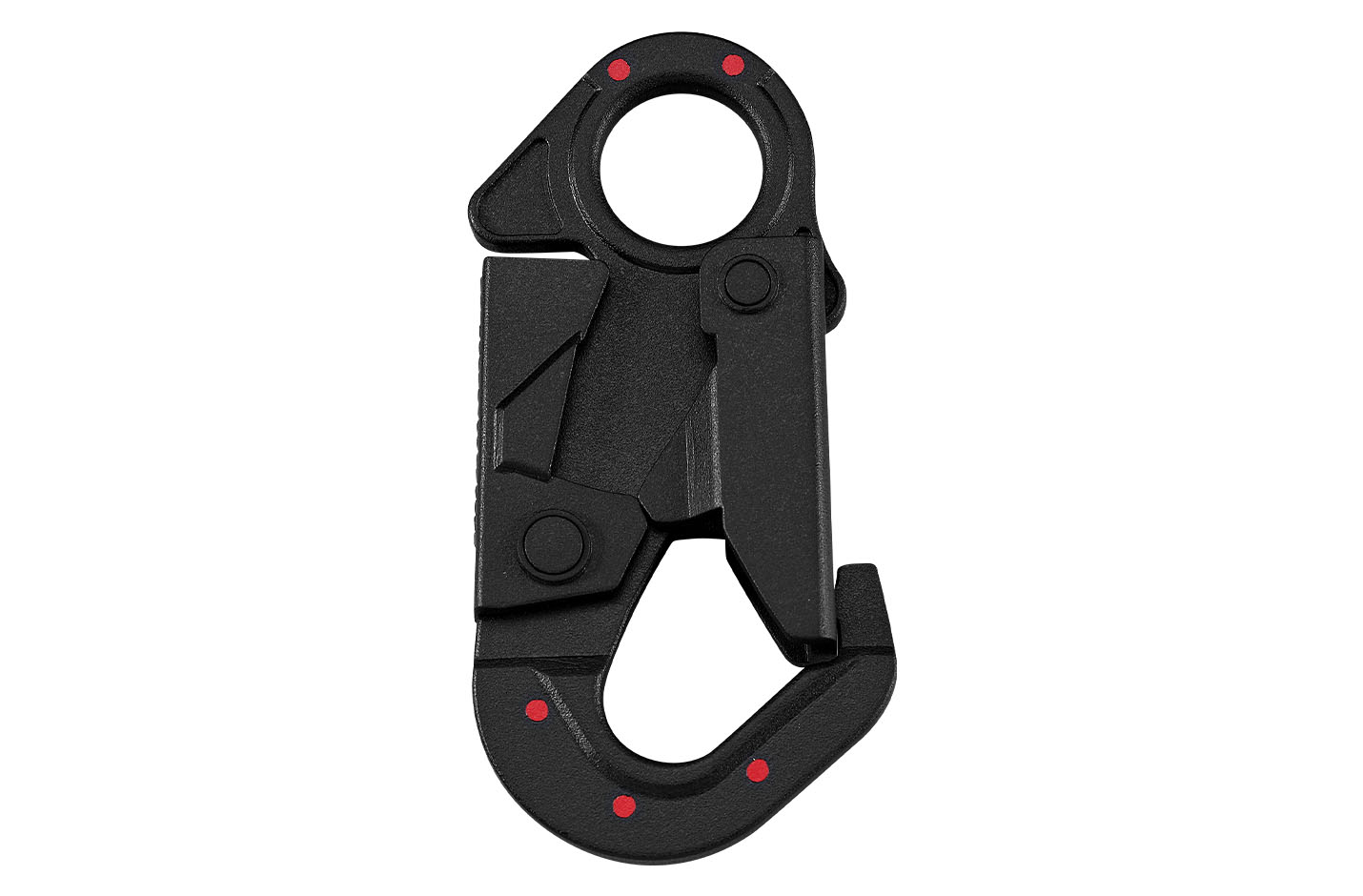

Overmolded ANSI Rope Snap Hook
Item No.N-DE360
Core: Sheet steel / Overmold: Glass fiber reinforced nylon
100% proof loaded to 3600 lbs / 16kN
Min. Breaking load : 5000 lbs / 23 kN
Meets :
● ANSI Z359.12-2019
● CSA Z259.12-16
● EN 362 : 2004
Maximum 9kV Dielectric Resistance
Net weight : 14.2 oz. / 404 g
Patented
100% proof loaded to 3600 lbs / 16kN
Min. Breaking load : 5000 lbs / 23 kN
Meets :
● ANSI Z359.12-2019
● CSA Z259.12-16
● EN 362 : 2004
Maximum 9kV Dielectric Resistance
Net weight : 14.2 oz. / 404 g
Patented
| Item NO. | Compare | Net Weight | Gate Strength | 100% proof loaded#ibest*80 | Min. Breaking load#ibest*81 | Meets | Maximum Dielectric Resistance#ibest*104 | Body#ibest*75 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| g | 3600 Lbs Gate Strength | ANSI Z359.12-2019 | CSA Z259.12-16 | EN 362 : 2004 | ||||||
| N-DE360 | Compare | 404 | ✔ | 3600lbs / 16 kN | 5000 lbs / 23 kN | ✔ | ✔ | ✔ | 9kV | Sheet steel |
| Item NO. | Compare | Net Weight | Gate Strength | 100% proof loaded#ibest*80 | Min. Breaking load#ibest*81 | Meets | Maximum Dielectric Resistance#ibest*104 | Body#ibest*75 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| oz.#ibest*74 | 3600 Lbs Gate Strength#ibest*82 | ANSI Z359.12-2019#ibest*89 | CSA Z259.12-16#ibest*90 | EN 362 : 2004#ibest*91 | ||||||
| N-DE360 | Compare | 14.2 | ✔ | 3600lbs / 16 kN | 5000 lbs / 23 kN | ✔ | ✔ | ✔ | 9kV | Sheet steel |
