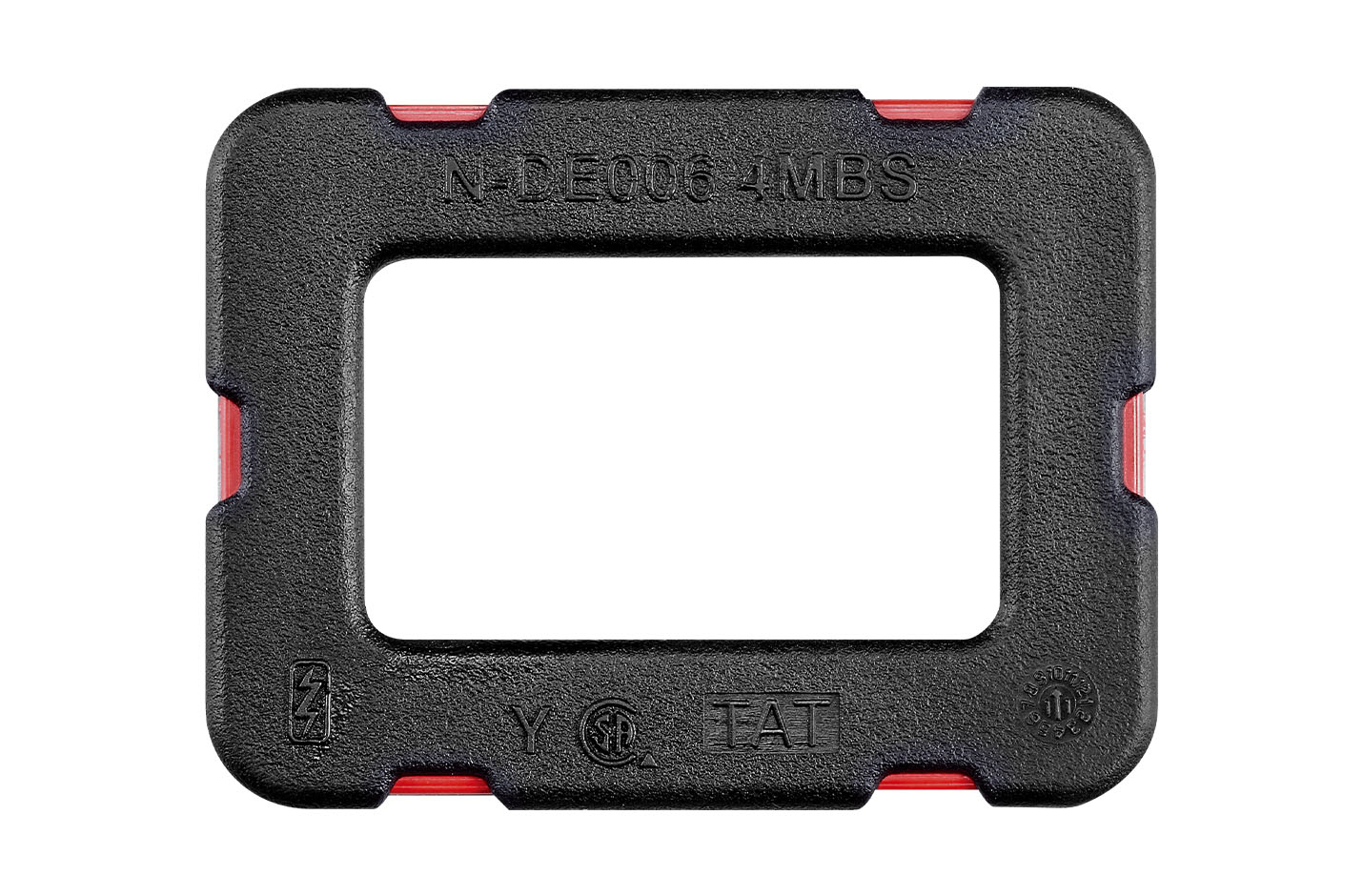

Overmolded Quick Buckle

Item No.N-DE006

Core: Sheet steel / Overmold: Glass fiber reinforced nylon
Min. Breaking load : 4000 lbs / 18 kN
Meets :
● ANSI Z359.12-2019
● CSA Z259.12-16
Maximum 9kV Dielectric Resistance
Net weight : 2.2 oz. / 61 g

Compare Datasheet

Sales Sheet

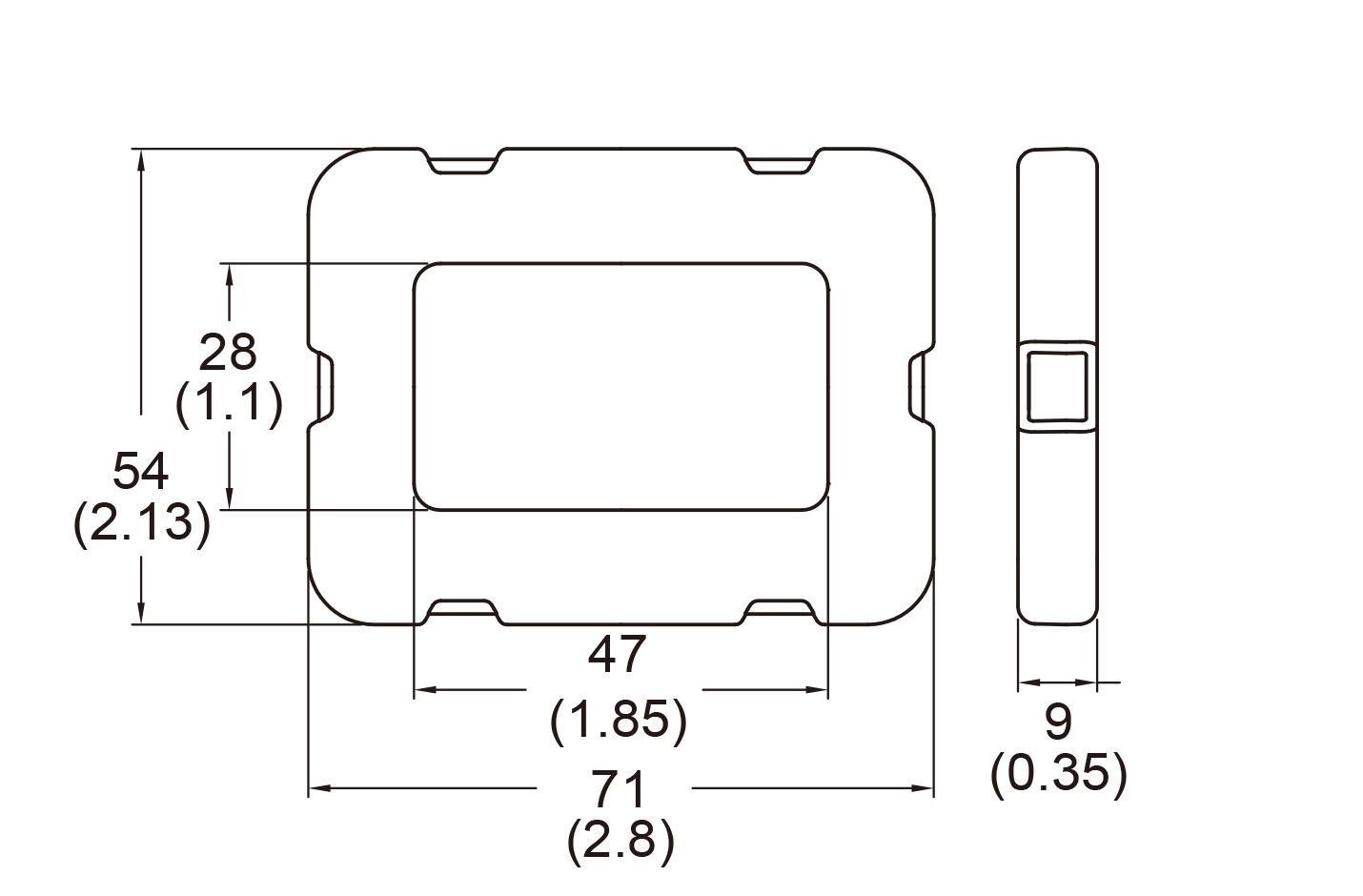

Metric (mm)
Imperial (inch)

Item NO.	Compare	Net Weight	Min. Breaking load#ibest*81	Meets		Maximum Dielectric Resistance#ibest*104	Body#ibest*75
		g		ANSI Z359.12-2019	CSA Z259.12-16
N-DE006	Compare	61	4000 lbs / 18 kN	✔	✔	9kV	Sheet steel

Item NO.	Compare	Net Weight	Min. Breaking load#ibest*81	Meets		Maximum Dielectric Resistance#ibest*104	Body#ibest*75
		oz.#ibest*74		ANSI Z359.12-2019#ibest*89	CSA Z259.12-16#ibest*90
N-DE006	Compare	2.2	4000 lbs / 18 kN	✔	✔	9kV	Sheet steel
