Gate Strength
| Item NO. | Compare | Net Weight | Gate Strength | 100% proof loaded#ibest*80 | Min. Breaking load#ibest*81 | Meets | Color#ibest*103 | Body#ibest*75 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| g | 3600 Lbs Gate Strength | ANSI Z359.12-2019 | CSA Z259.12-16 | EN 362 : 2004 | ||||||

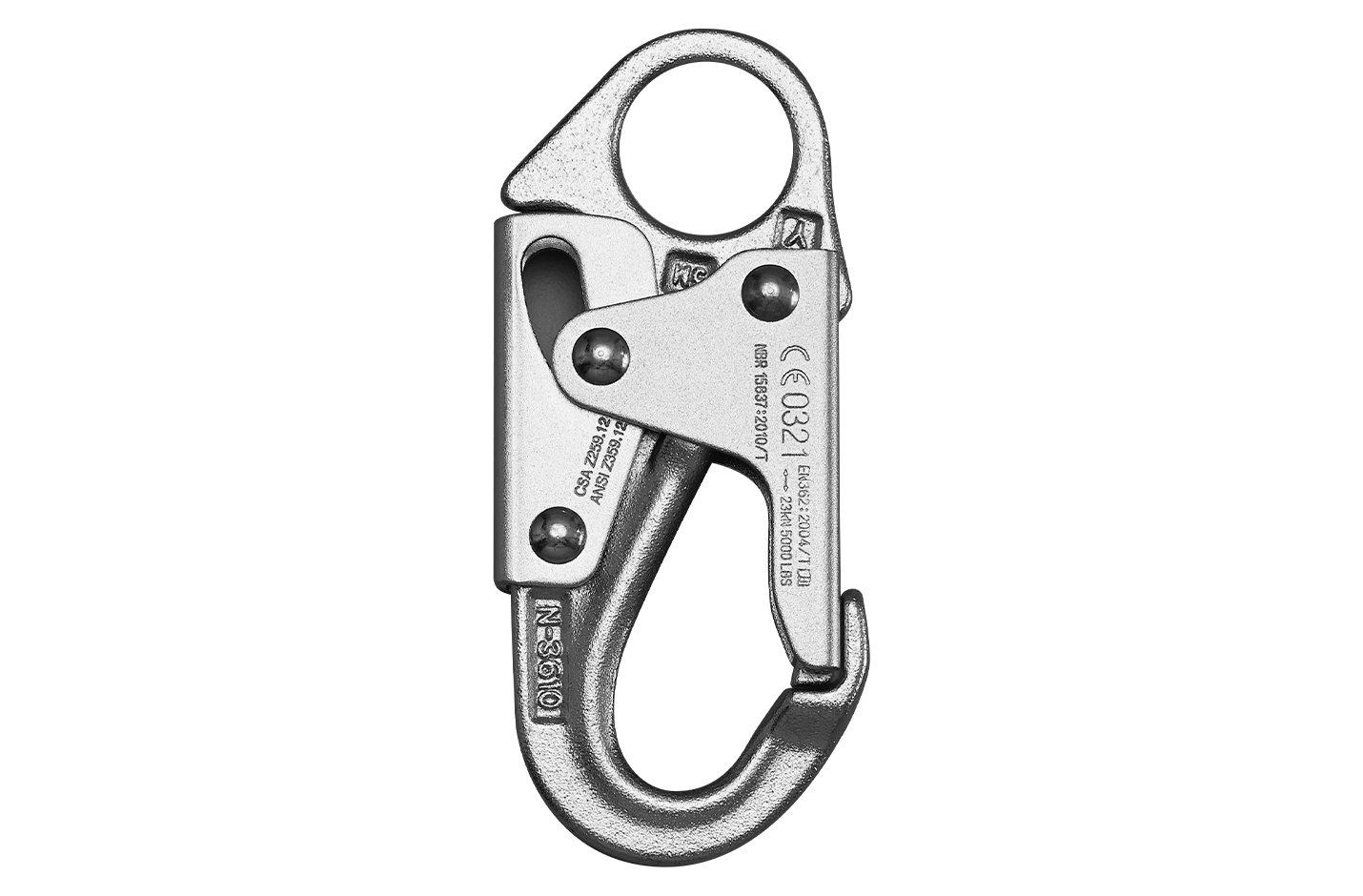

| N-3610 | Compare | 388 | ✔ | 3600 lbs / 16 kN | 5000 lbs / 23 kN | ✔ | ✔ | ✔ | Zinc Plated | Forged steel |
| Item NO. | Compare | Net Weight | Gate Strength | 100% proof loaded#ibest*80 | Min. Breaking load#ibest*81 | Meets | Color#ibest*103 | Body#ibest*75 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| oz.#ibest*74 | 3600 Lbs Gate Strength#ibest*82 | ANSI Z359.12-2019#ibest*89 | CSA Z259.12-16#ibest*90 | EN 362 : 2004#ibest*91 | ||||||
| N-3610 | Compare | 13.6 | ✔ | 3600 lbs / 16 kN | 5000 lbs / 23 kN | ✔ | ✔ | ✔ | Zinc Plated | Forged steel |
