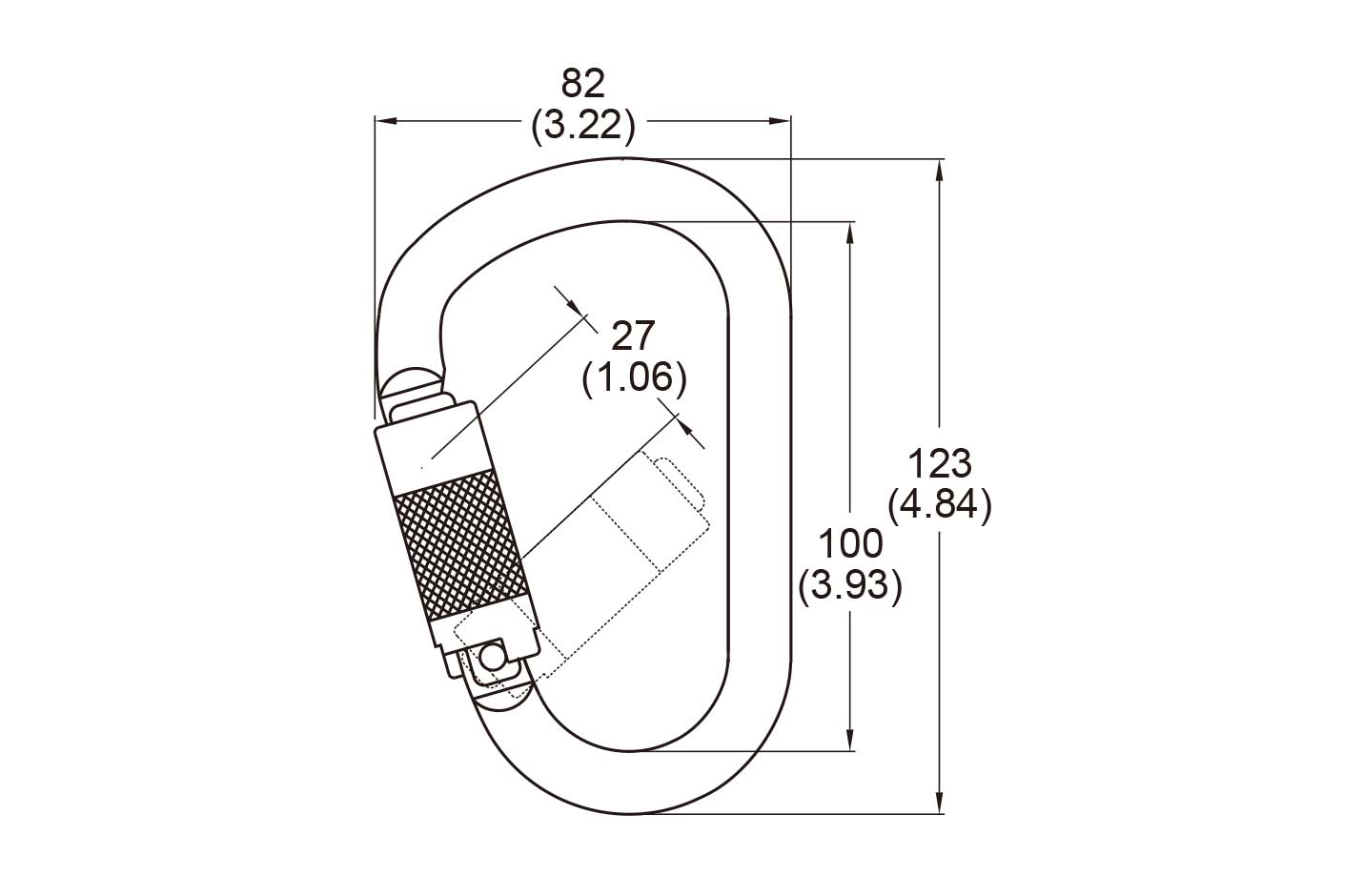

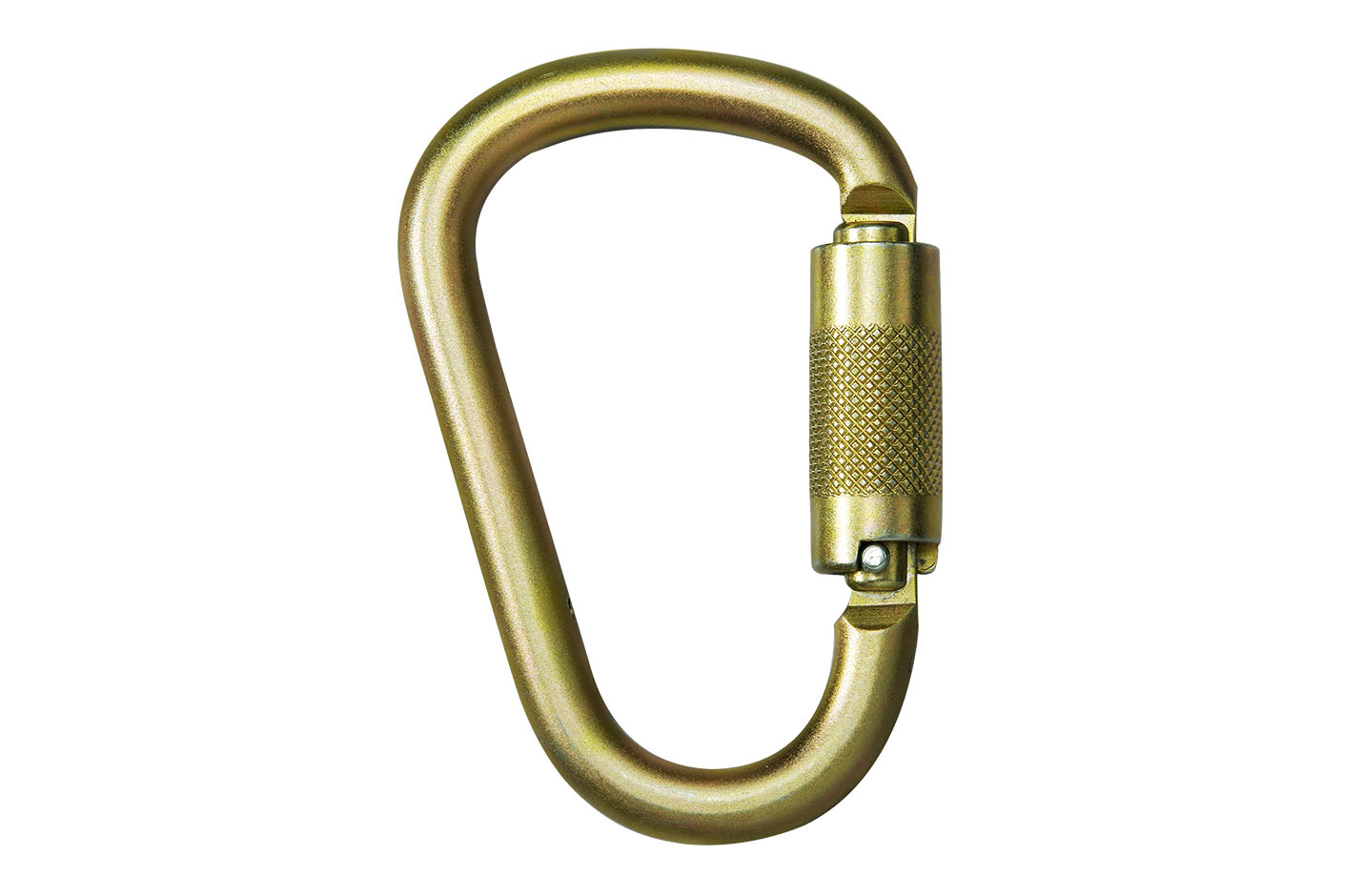

Steel Carabiner

Item No.N-247G-CP

Alloy steel, heat treated
100% proof loaded to 3600 lbs / 16 kN
Min. Breaking load : 5000 lbs / 23 kN

Meets :
● ANSI Z359.12-2019
● CSA Z259.12-16
● EN 362 : 2004

Net weight : 11.0 oz. / 313 g.
Zinc Plated

Compare Datasheet

Gate Srength

Metric (mm)
Imperial (inch)

Item NO.	Compare	Net Weight	Gate Feature			Body	Gate Strength	100% proof loaded#ibest*80	Min. Breaking load#ibest*81	Meets			Color#ibest*103	Body#ibest*75
		g	Screw gate	Twist Locking	TripleLocking	Captive Pin	3600 Lbs Gate Strength			ANSI Z359.12-2019	CSA Z259.12-16	EN 362 : 2004
N-247-0	Compare	313	✔	-	-	-	-	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Zinc Plated	Alloy steel
N-247	Compare	313	-	✔	-	-	-	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Zinc Plated	Alloy steel
N-247G-CP	Compare	313	-	✔	-	✔	✔	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Zinc Plated	Alloy steel
N-247G-TRCP	Compare	313	-	-	✔	✔	✔	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Zinc Plated	Alloy steel

Item NO.	Compare	Net Weight	Gate Feature			Body	Gate Strength	100% proof loaded#ibest*80	Min. Breaking load#ibest*81	Meets			Color#ibest*103	Body#ibest*75
		oz.#ibest*74	Screw gate#ibest*84	Twist Locking#ibest*85	TripleLocking#ibest*86	Captive Pin#ibest*87	3600 Lbs Gate Strength#ibest*82			ANSI Z359.12-2019#ibest*89	CSA Z259.12-16#ibest*90	EN 362 : 2004#ibest*91
N-247-0	Compare	11	✔	-	-	-	-	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Zinc Plated	Alloy steel
N-247	Compare	11	-	✔	-	-	-	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Zinc Plated	Alloy steel
N-247G-CP	Compare	11	-	✔	-	✔	✔	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Zinc Plated	Alloy steel
N-247G-TRCP	Compare	11	-	-	✔	✔	✔	3600lbs / 16 kN	5000 lbs / 23 kN	✔	✔	✔	Zinc Plated	Alloy steel
