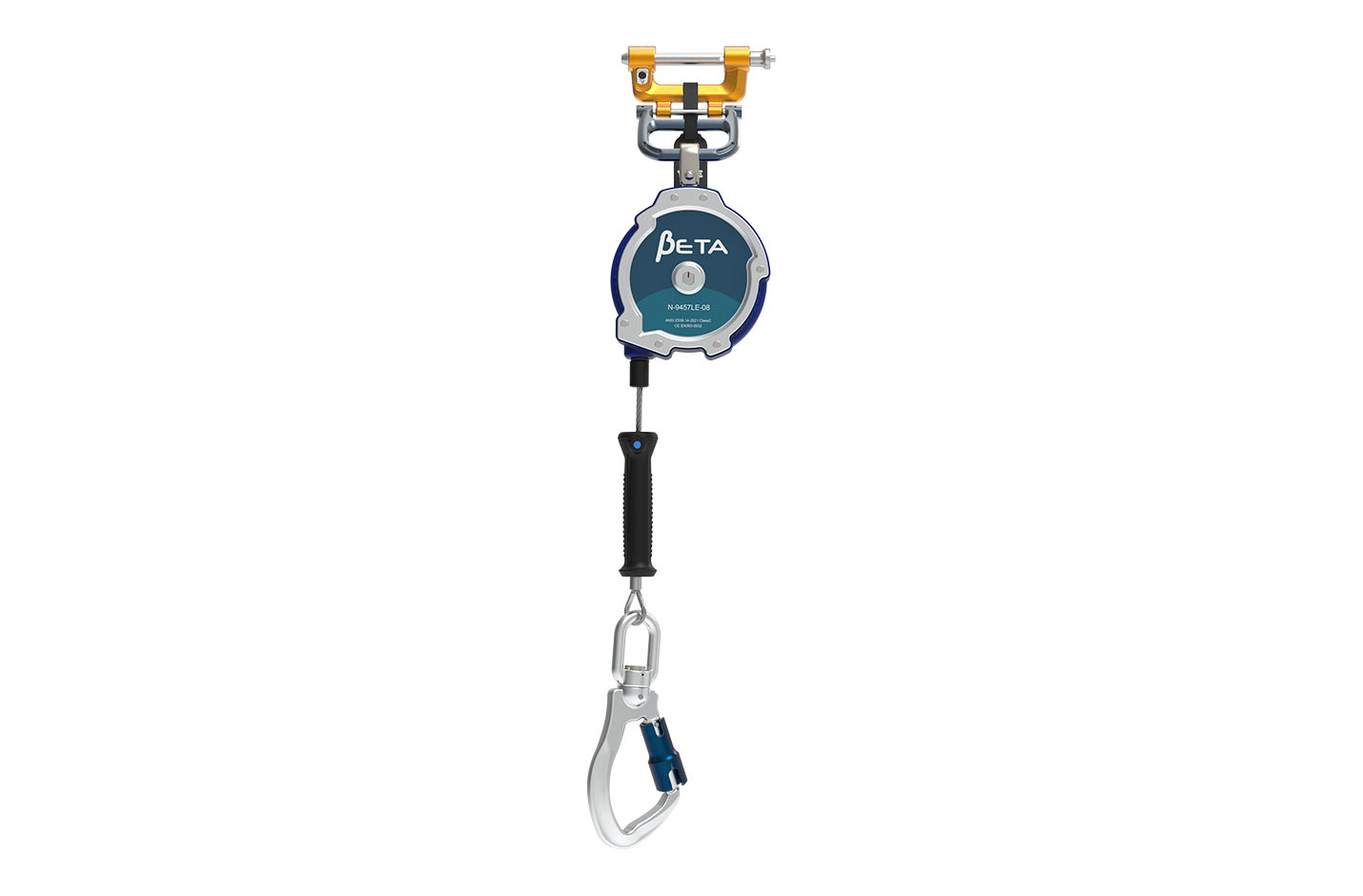

BETA-Cable Personal Fall Limiter (PFL)
Item No.N-9457LE-08U
Equipped with a movable, patent-pending BRACKET design, this product is easy to install and offers convenient mobility. Despite its lightweight design, it meets ANSI CLASS 2 standards and is embedded with a Digital Chip for added functionality.
Class 2
| Complies with | ANSI Z359.14-2021 CE EN360-2023 CSA Z259.2.2-17 |
| Housing | Thermoplastic / Stainless steel |
| Cable | 3/16” (4.8mm) Galvanized Steel |
| Max Arresting Distance(ANSI) | 42 inches |
| Max Arresting Force(ANSI) | 1,350 lbs |
| Max Arrest Distance (EN) | 1.4 m |
| Max Arresting Force (EN) | 6 kN |
| Capacity(ANSI) | 310 lbs |
| Capacity(OSHA) | 420 lbs |
| Capacity(EN) | 140 kgs |
| Item NO. | Compare | Net Weight | Working Length | Dimension(A) | Dimension(B) | Dimension(C) | Meets | Housing#ibest*194 | Cable#ibest*196 | Capacity | Max Arresting Distance | Max Arresting Force | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kg | M | mm | mm | mm | ANSI Z359.14-2021 | CSA Z259.2.2-17 | EN360-2023 | ANSI | OSHA | EN | EN | EN | ||||
| N-9457LE-08U | Compare | 2.1 | 2.4 | 701 | 125 | 44 | ✔ | ✔ | ✔ | Thermoplastic / Stainless steel | 3/16” (4.8mm) Galvanized Steel | 310 lbs | 420 lbs | 140 kgs | 1.4 m | 6 kN |
| Item NO. | Compare | Net Weight | Working Length | Dimension(A) | Dimension(B) | Dimension(C) | Meets | Housing#ibest*194 | Cable#ibest*196 | Capacity | Max Arresting Distance | Max Arresting Force | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lbs#ibest*218 | ft#ibest*200 | Inches#ibest*206 | Inches#ibest*208 | Inches#ibest*210 | ANSI Z359.14-2021#ibest*212 | CSA Z259.2.2-17#ibest*214 | EN360-2023#ibest*213 | ANSI#ibest*197 | OSHA#ibest*198 | EN#ibest*199 | ANSI#ibest*202 | ANSI#ibest*204 | ||||
| N-9457LE-08U | Compare | 4.6 | 8 | 27.6 | 4.9 | 1.7 | ✔ | ✔ | ✔ | Thermoplastic / Stainless steel | 3/16” (4.8mm) Galvanized Steel | 310 lbs | 420 lbs | 140 kgs | 42 inches | 1,350 lbs |
