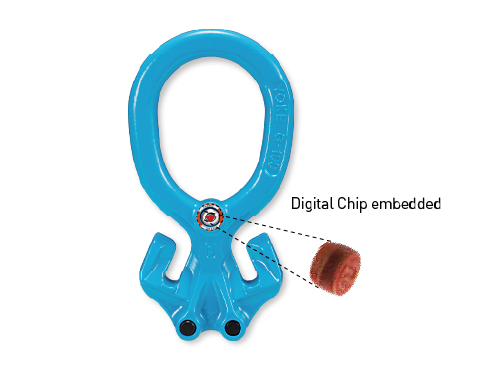

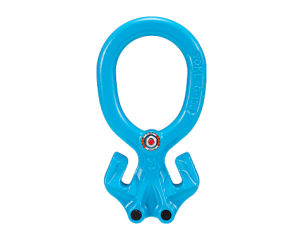

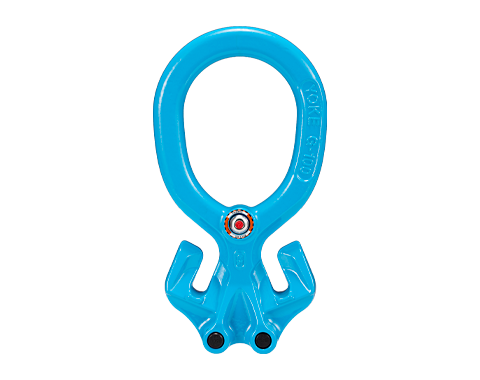

G-100 X-Link Double

Item No.X-A08

• Quenched and Tempered Alloy Steel.
• At least 25% greater WLL than traditional G80
products.
• Manufactured in accordance with EN 1677 and ASTM
A952/ A 952M.
• Proof Load tested at 2.5 times the WLL with
certification for each batch manufactured.
• Design Factor 4:1.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• Tempering temperature at a minimum of 400°C.
• Each link is marked with batch number that links
to the test certificate with full traceability to raw
materials.
• Integrated One-Piece Design – Multiple Functions in
One Component.
• Minimizes connection points and improves operational
safety.
• Fully integrated shortening clutch and master link.
• No reduction in WLL when shortening chain.
• Speedy assembly.
• Light weight system.
• Cost effective compared to slings which use multiple
components.

Compare Datasheet

Metric (mm)
Imperial (inch)

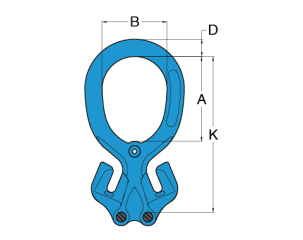

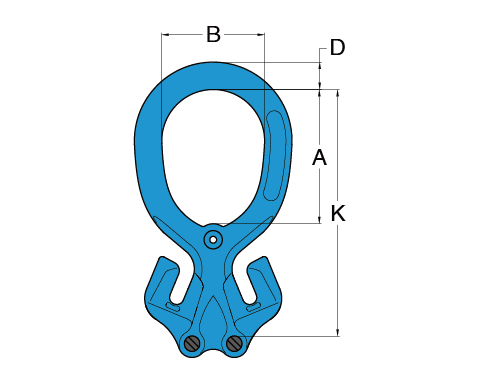

Item NO.	Compare	For Grade 100 Chain	WLL β 0-45°	Used to single hook according to DlN 15401 NO.	Dimensions				N.W.
		mm	tonnes		A	B	D	K	kg
X-A08-06	Compare	6	2	4	85	60	17	145	0.8
X-A08-08	Compare	8	3.5	6	98	75	21	171	1.6
X-A08-10	Compare	10	5.6	10	118	90	24	216	2.8
X-A08-13	Compare	13	9.4	12	143	105	31	263	5.7
X-A08-16	Compare	16	14	16	166	120	35	311	9.4

Item NO.	Compare	For Grade 100 Chain	WLL β 0-45°	Dimensions				N.W.
		inch	lbs	A	B	D	K	lbs
X-A08-06	Compare	7/32	4400	3.33	2.36	0.67	5.69	1.8
X-A08-08	Compare	5/16	7700	3.84	2.95	0.83	6.73	3.4
X-A08-10	Compare	3/8	12300	4.63	3.54	0.94	8.5	6.2
X-A08-13	Compare	1/2	20700	5.63	4.13	1.22	10.35	12.5
X-A08-16	Compare	5/8	30800	6.54	4.72	1.38	12.24	20.8
