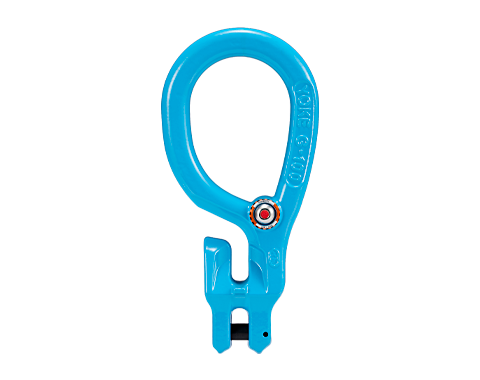

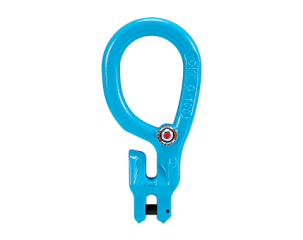

G-100 X-Link Single

Item No.X-A07

• Quenched and Tempered Alloy Steel.
• At least 25% greater WLL than traditional G80
products.
• Manufactured in accordance with EN 1677 and ASTM
A952/ A 952M.
• Proof Load tested at 2.5 times the WLL with
certification for each batch manufactured.
• Design Factor 4:1.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• Tempering temperature at a minimum of 400°C.

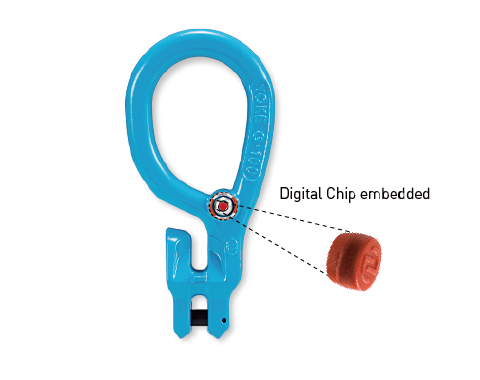

• Each link is marked with batch number that links
to the test certificate with full traceability to raw
materials.
• Integrated One-Piece Design – Multiple Functions in
One Component.
• Minimizes connection points and improves
operational safety.
• Fully integrated shortening clutch and master link.
• No reduction in WLL when shortening chain.
• Speedy assembly.
• Light weight system.
• Cost effective compared to slings which use
multiple components.

Compare Datasheet

Metric (mm)
Imperial (inch)

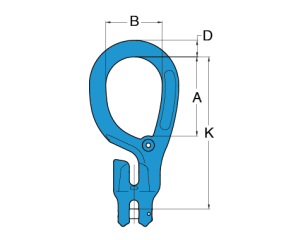

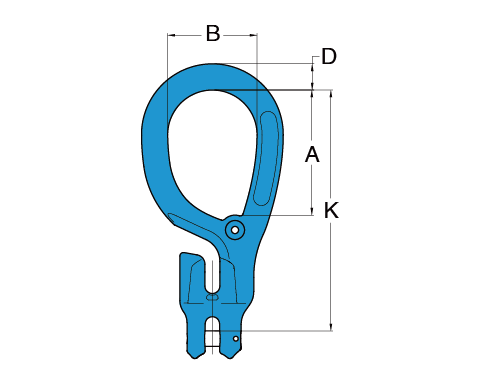

Item NO.	Compare	For Grade 100 Chain	WLL β 0-45°	Used to single hook according to DlN 15401 NO.	Dimensions				N.W.
		mm	tonnes		A	B	D	K	kg
X-A07-06	Compare	6	1.4	4	80	60	15	138	0.6
X-A07-08	Compare	8	2.5	4	86	60	18	163	1
X-A07-10	Compare	10	4	6	105	75	22	202	1.9
X-A07-13	Compare	13	6.7	10	129	90	26	259	3.7
X-A07-16	Compare	16	10	12	157	105	31	314	6.5

Item NO.	Compare	For Grade 100 Chain	WLL β 0-45°	Dimensions				N.W.
		inch	lbs	A	B	D	K	lbs
X-A07-06	Compare	7/32	3000	3.13	2.36	0.59	5.43	1.2
X-A07-08	Compare	5/16	5500	3.39	2.36	0.71	6.42	2.2
X-A07-10	Compare	3/8	8800	4.13	2.95	0.87	7.96	4.3
X-A07-13	Compare	1/2	14700	5.08	3.54	1.02	10.19	8.2
X-A07-16	Compare	5/8	22000	6.17	4.13	1.22	12.37	14.4
