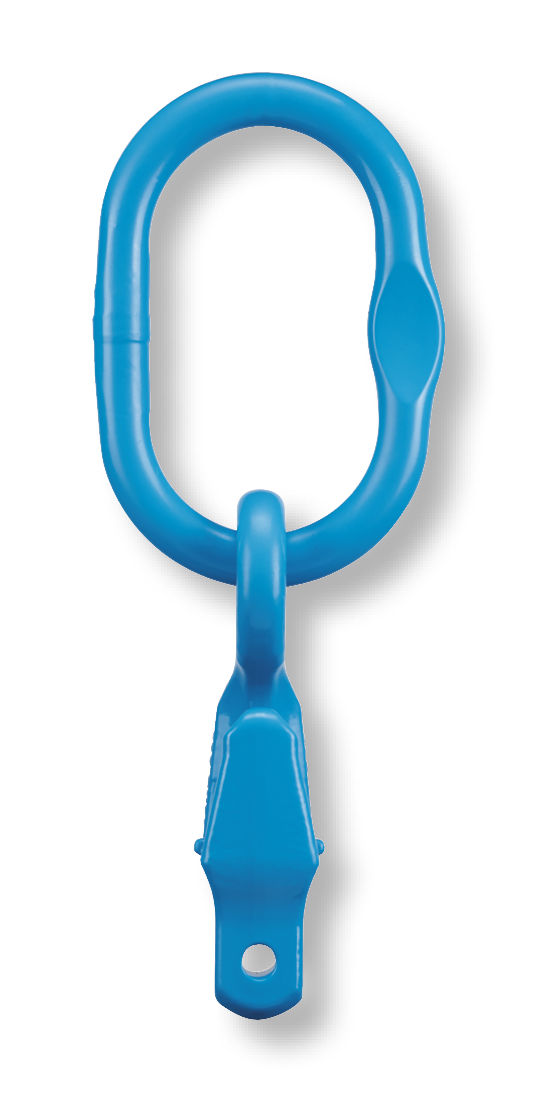

G-100 Adjustable Master Link, Single Leg
Item No.X-A04
• Quenched and Tempered Alloy Steel.
• At least 25% greater WLL than traditional G80 products.
• Manufactured in accordance with EN 1677 and ASTM A952/ A 952M.
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
• Design Factor 4:1.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• Tempering temperature at a minimum of 400°C.
• Each link is marked with batch number that links to the test certificate with full traceability to raw materials.
• Fully integrated shortening clutch and master link.
• No reduction in WLL when shortening chain.
• Speedy assembly.
• Light weight system.
• Cost effective compared to slings which use multiple components.
• At least 25% greater WLL than traditional G80 products.
• Manufactured in accordance with EN 1677 and ASTM A952/ A 952M.
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
• Design Factor 4:1.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• Tempering temperature at a minimum of 400°C.
• Each link is marked with batch number that links to the test certificate with full traceability to raw materials.
• Fully integrated shortening clutch and master link.
• No reduction in WLL when shortening chain.
• Speedy assembly.
• Light weight system.
• Cost effective compared to slings which use multiple components.

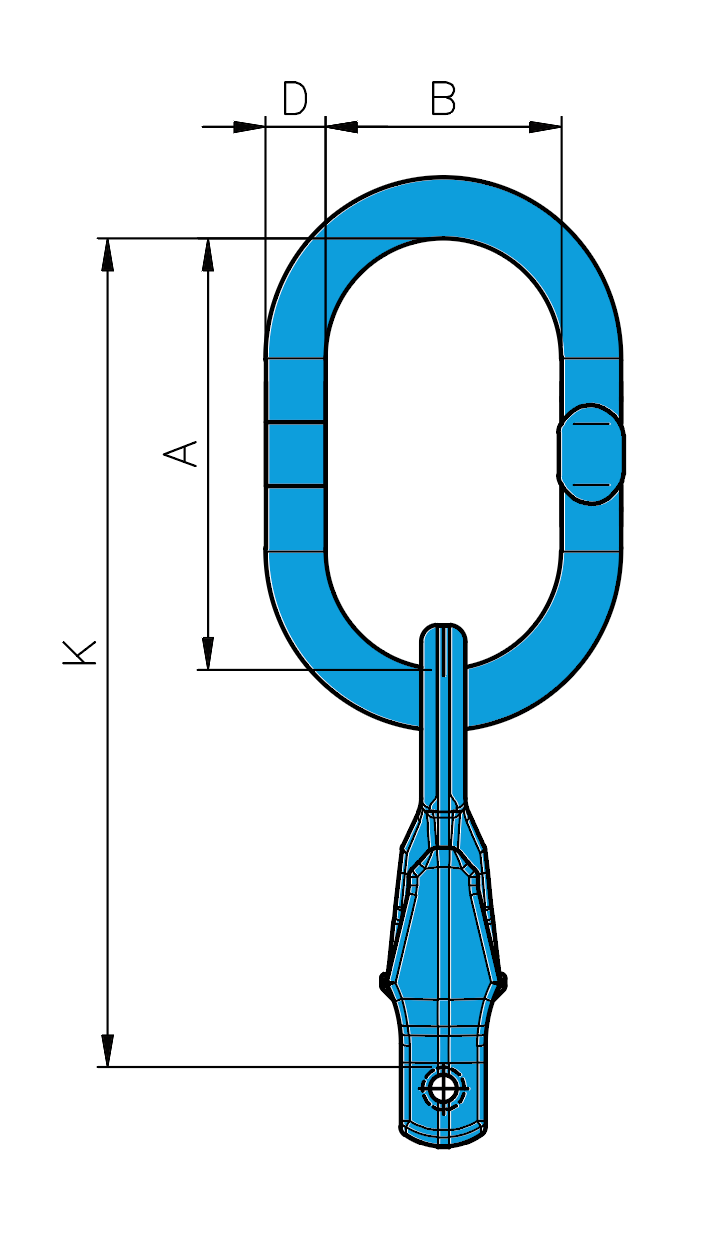

| Item NO. | Compare | For Grade 100 Chain | WLL β 0-45° | Used to single hook according to DlN 15401 NO. | Dimensions | |||
|---|---|---|---|---|---|---|---|---|
| mm | tonnes | A | B | D | K | |||
| X-A04-06 | Compare | 6 | 1.4 | 4 | 120 | 70 | 13 | 196 |
| X-A04-08 | Compare | 7,8 | 2.5 | 5 | 140 | 80 | 16 | 242 |
| X-A04-10 | Compare | 10 | 4 | 6 | 160 | 95 | 19 | 285 |
| X-A04-13 | Compare | 13 | 6.7 | 10 | 170 | 105 | 22 | 328 |
| X-A04-16 | Compare | 16 | 10 | 10 | 190 | 110 | 28 | 392 |
| Item NO. | Compare | For Grade 100 Chain | WLL β 0-45° | Used to single hook according to DlN 15401 NO. | Dimensions | |||
|---|---|---|---|---|---|---|---|---|
| inch | lbs | A | B | D | K | |||
| X-A04-06 | Compare | 7/32 | 3000 | 4 | 4.72 | 2.76 | 0.51 | 7.7 |
| X-A04-08 | Compare | 1/4-5/16 | 5500 | 5 | 5.51 | 3.15 | 0.63 | 9.53 |
| X-A04-10 | Compare | 45724 | 8800 | 6 | 6.3 | 3.74 | 0.75 | 11.22 |
| X-A04-13 | Compare | 45659 | 14700 | 10 | 6.69 | 4.13 | 0.87 | 12.92 |
| X-A04-16 | Compare | 45785 | 22000 | 10 | 7.48 | 4.33 | 1.1 | 15.41 |
