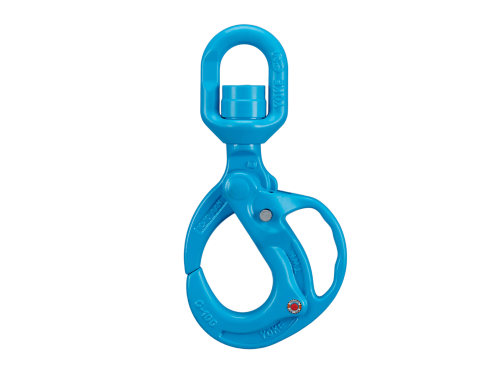

G-100 Swivel Grip Safe Locking Hook
Item No.X-952N
• Quenched and Tempered Alloy Steel.
• Manufactured in accordance with EN 1677- 3.
• Manufactured in accordance with ASTM A952/A952M, DIN PAS 1061.
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
• Design Factor 4:1.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• Tempering temperature minimum 400°C
• Magnaflux crack detection is performed 100% on each batch.
• Built with ball bearing and enables full swivel feature under load.
• Each link is marked with batch number that links to the test certificate with full traceability to raw materials.
• Manufactured in accordance with EN 1677- 3.
• Manufactured in accordance with ASTM A952/A952M, DIN PAS 1061.
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
• Design Factor 4:1.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• Tempering temperature minimum 400°C
• Magnaflux crack detection is performed 100% on each batch.
• Built with ball bearing and enables full swivel feature under load.
• Each link is marked with batch number that links to the test certificate with full traceability to raw materials.

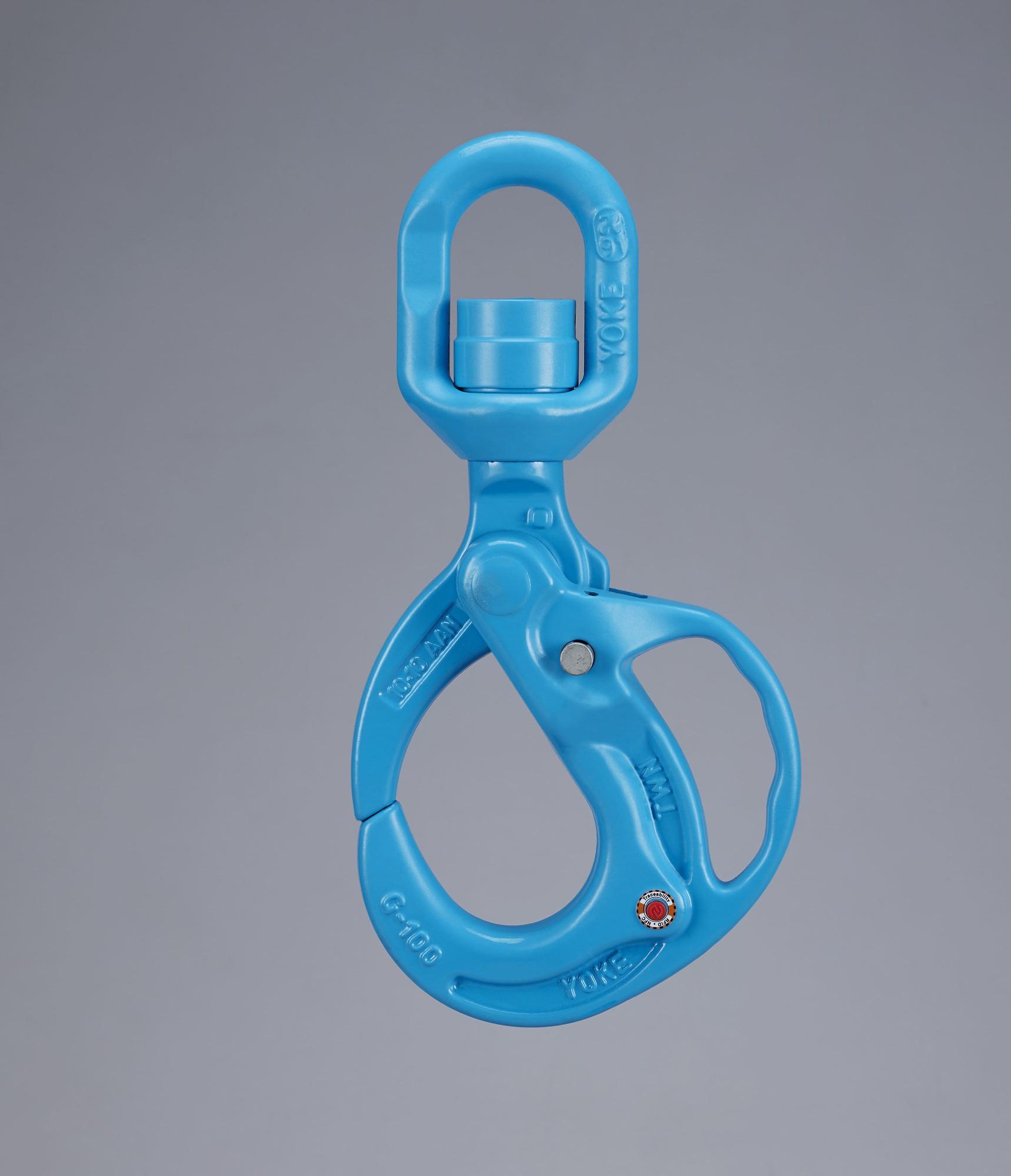

G-100 Swivel Grip Safe Locking Hook
Go Digital
Each product is assigned a unique Serial Number,enabling full Traceability and linking to anESPR-compliant Digital Product Passport (DPP).

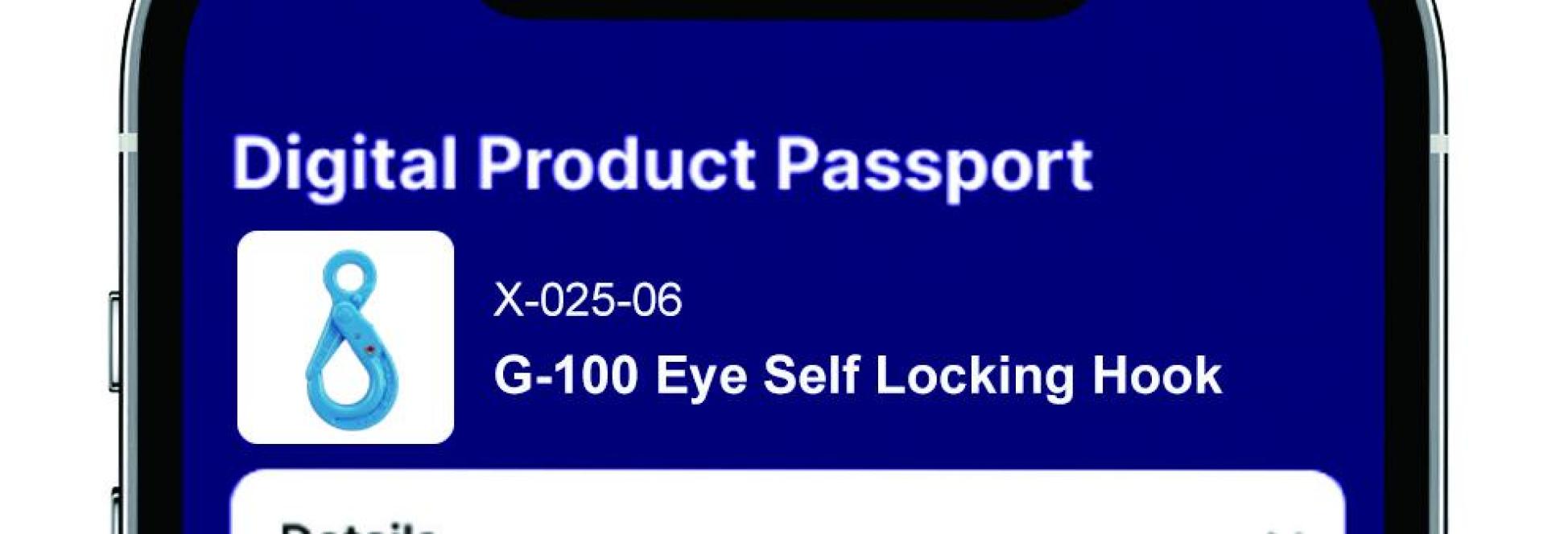

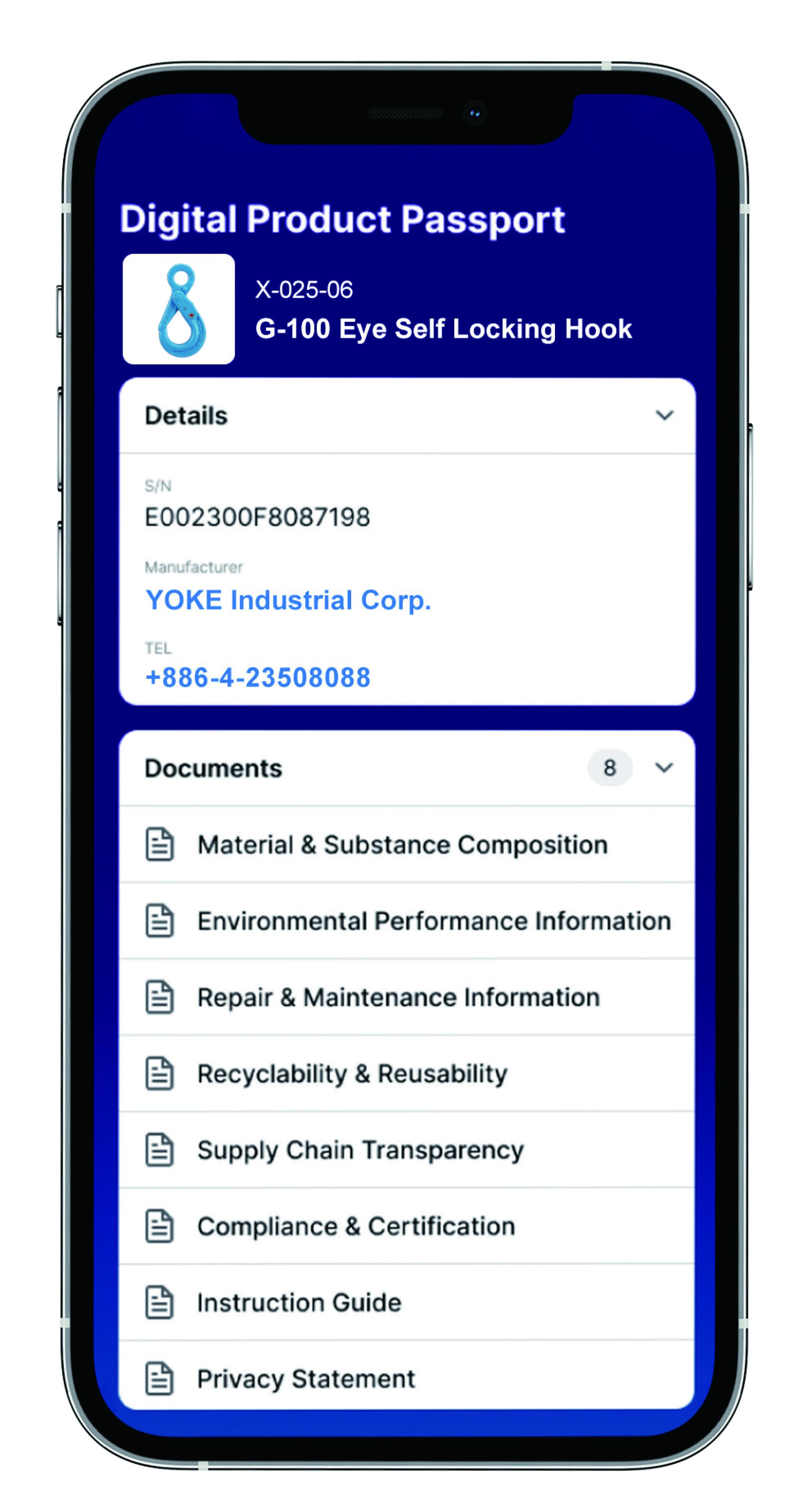

Digital Product Passport (DPP)
Digital Product Passport
We are fully prepared for the 2026 DPP requirements. Feel free to contact us to learn more.

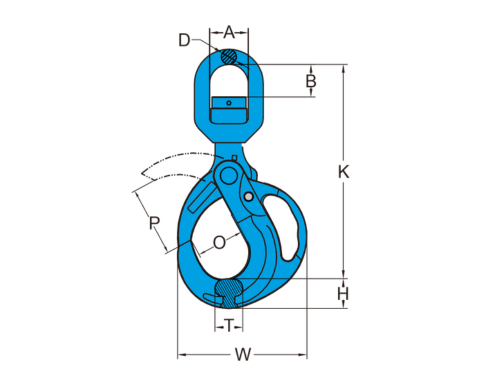

| Item NO. | Compare | Working Load Limit | For Grade 100 Chain | Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | mm | A | B | D | H | K | O | P | T | W | ||
| X-952N-10 | Compare | 4 | 10 | 41 | 35 | 16 | 31 | 226 | 49 | 46 | 27 | 137 |
| X-952N-13 | Compare | 6.7 | 13 | 46 | 44 | 21 | 39 | 283 | 64 | 80 | 34 | 174 |
| X-952N-16 | Compare | 10 | 16 | 61 | 50 | 23 | 47 | 347 | 78 | 114 | 39 | 212 |
| X-952N-20 | Compare | 16 | 20 | 74 | 82 | 25 | 55 | 433 | 92 | 127 | 54 | 251 |
| X-952N-22 | Compare | 19 | 22 | 97 | 96 | 33 | 59 | 476 | 98 | 151 | 56 | 258 |
| Item NO. | Compare | Working Load Limit | For Grade 100 Chain | Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lbs | inch | A | B | D | H | K | O | P | T | W | ||
| X-952N-10 | Compare | 8800 | 45724 | 1.61 | 1.38 | 0.63 | 1.22 | 8.9 | 1.93 | 1.81 | 1.06 | 5.39 |
| X-952N-13 | Compare | 15000 | 45659 | 1.81 | 1.73 | 0.83 | 1.54 | 11.14 | 2.52 | 3.15 | 1.34 | 6.85 |
| X-952N-16 | Compare | 22600 | 45785 | 2.4 | 1.97 | 0.91 | 1.85 | 13.66 | 3.07 | 4.49 | 1.54 | 8.35 |
| X-952N-20 | Compare | 35300 | 45720 | 2.91 | 3.23 | 0.98 | 2.17 | 17.05 | 3.62 | 5 | 2.13 | 9.88 |
| X-952N-22 | Compare | 42700 | 45846 | 3.82 | 3.78 | 1.3 | 2.32 | 18.74 | 3.86 | 5.94 | 2.2 | 10.16 |
