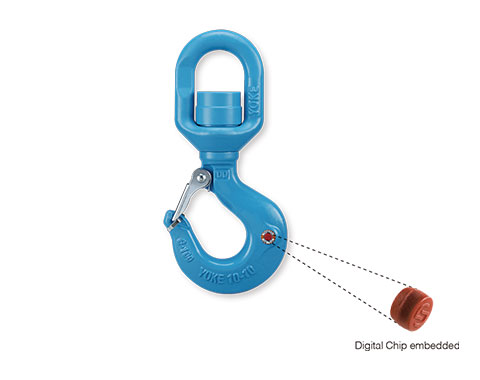

G-100 Swivel Bearing Hook
Item No.X-175N
● Quenched and Tempered Alloy Steel.
● At least 25% greater WLL than traditional G80 products.
● Manufactured in accordance with EN 1677-2 and ASME B30.26.
● Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
● Design Factor 4:1.
● Fatigue rated to 20,000 cycles at 1.5 times the WLL.
● Tempering temperature minimum 400°C
● Magnaflux crack detection is performed 100% on each batch.
● Built with ball bearing and enables full swivel feature under load.
● At least 25% greater WLL than traditional G80 products.
● Manufactured in accordance with EN 1677-2 and ASME B30.26.
● Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
● Design Factor 4:1.
● Fatigue rated to 20,000 cycles at 1.5 times the WLL.
● Tempering temperature minimum 400°C
● Magnaflux crack detection is performed 100% on each batch.
● Built with ball bearing and enables full swivel feature under load.

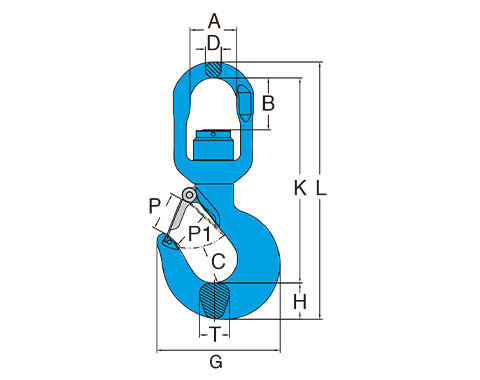

| Item NO. | Compare | Working Load Limit | For Grade 100 Chain | Hook Feature Code | Dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | mm | A | B | C | D | G | H | K | L | P | P1 | T | |||
| X-175N-05 | Compare | 1.0 | 5 | AA | 32 | 23 | 25 | 12 | 78 | 19 | 123 | 154 | 26 | 22 | 16 |
| X-175N-06 | Compare | 1.4 | 6 | BB | 32 | 23 | 25 | 12 | 81 | 23 | 131 | 165 | 24 | 19 | 17 |
| X-175N-07 | Compare | 2.5 | 7.8 | CC | 36 | 29 | 26 | 13 | 90 | 27 | 145 | 184 | 24 | 20 | 22 |
| X-175N-10 | Compare | 4.0 | 10 | DD | 41 | 35 | 29 | 16 | 102 | 29 | 172 | 217 | 28 | 25 | 24 |
| X-175N-13 | Compare | 6.7 | 13 | EE | 46 | 44 | 38 | 21 | 122 | 38 | 218 | 277 | 35 | 31 | 31 |
| X-175N-16 | Compare | 10.0 | 16 | FF | 61 | 50 | 49 | 23 | 160 | 48 | 261 | 332 | 43 | 39 | 35 |
| X-175N-20 | Compare | 16.0 | 18-20 | GG | 74 | 82 | 62 | 25 | 196 | 56 | 327 | 410 | 61 | 57 | 47 |
| X-175N-22 | Compare | 19.0 | 22 | HH | 97 | 96 | 65 | 33 | 221 | 64 | 372 | 471 | 72 | 62 | 56 |
| X-175N-26 | Compare | 26.5 | 26 | JJ | 123 | 116 | 71 | 51 | 277 | 76 | 469 | 599 | 86 | 81 | 68 |
| X-175N-32 | Compare | 40.0 | 32 | KK | 123 | 116 | 87 | 51 | 353 | 93 | 503 | 651 | 89 | 83 | 76 |
| Item NO. | Compare | Working Load Limit | For Grade 100 Chain | Hook Feature Code | Dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | inch | A | B | C | D | G | H | K | P | P1 | S | T | |||
| X-175N-05 | Compare | 1 | 3/16 | AA | 1.26 | 0.91 | 0.98 | 0.47 | 3.07 | 0.75 | 4.84 | 1.02 | 0.87 | 6.06 | 0.63 |
| X-175N-06 | Compare | 1.4 | 7/32 | BB | 1.26 | 0.91 | 0.98 | 0.47 | 3.19 | 0.91 | 5.16 | 0.94 | 0.75 | 6.5 | 0.67 |
| X-175N-07 | Compare | 2.5 | 1/4 | CC | 1.42 | 1.14 | 1.02 | 0.51 | 3.54 | 1.06 | 5.71 | 0.94 | 0.79 | 7.24 | 0.87 |
| X-175N-10 | Compare | 4 | 3/8 | DD | 1.61 | 1.38 | 1.14 | 0.63 | 4.02 | 1.14 | 6.77 | 1.1 | 0.98 | 8.54 | 0.94 |
| X-175N-13 | Compare | 6.7 | 1/2 | EE | 1.81 | 1.73 | 1.5 | 0.83 | 4.8 | 1.5 | 8.58 | 1.38 | 1.22 | 10.91 | 1.22 |
| X-175N-16 | Compare | 10 | 5/8 | FF | 2.4 | 1.97 | 1.93 | 0.91 | 6.3 | 1.89 | 10.28 | 1.69 | 1.54 | 13.07 | 1.38 |
| X-175N-20 | Compare | 16 | 3/4 | GG | 2.91 | 3.23 | 2.44 | 0.98 | 7.72 | 2.2 | 12.87 | 2.4 | 2.24 | 16.14 | 1.85 |
| X-175N-22 | Compare | 19 | 7/8 | HH | 3.82 | 3.78 | 2.56 | 1.3 | 8.7 | 2.52 | 14.65 | 2.83 | 2.44 | 18.54 | 2.2 |
| X-175N-26 | Compare | 26.5 | 1 | JJ | 4.84 | 4.57 | 2.8 | 2.01 | 10.91 | 2.99 | 18.46 | 3.39 | 3.19 | 23.58 | 2.68 |
| X-175N-32 | Compare | 40 | 1.25 | KK | 4.84 | 4.57 | 3.43 | 2.01 | 13.9 | 3.66 | 19.8 | 3.5 | 3.27 | 25.63 | 2.99 |
