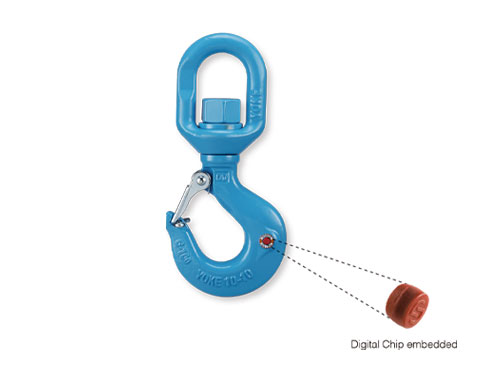

G-100 Swivel Hook
Item No.X-175
● Quenched and Tempered Alloy Steel.
● At least 25% greater WLL than traditional G80 products.
● Manufactured in accordance with EN 1677-2 and ASME B30.26.
● Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
● Design Factor 4:1.
● Fatigue rated to 20,000 cycles at 1.5 times the WLL.
● Tempering temperature minimum 400°C
● Magnaflux crack detection is performed 100% on each batch.
● At least 25% greater WLL than traditional G80 products.
● Manufactured in accordance with EN 1677-2 and ASME B30.26.
● Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
● Design Factor 4:1.
● Fatigue rated to 20,000 cycles at 1.5 times the WLL.
● Tempering temperature minimum 400°C
● Magnaflux crack detection is performed 100% on each batch.

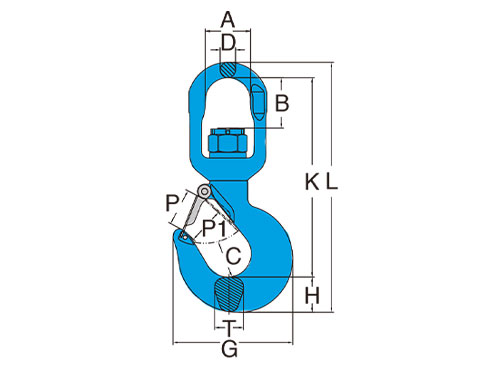

| Item NO. | Compare | Working Load Limit | For Grade 100 Chain | Hook Feature Code | Dimensions | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | mm | A | B | C | D | G | H | K | |||
| X-175-05 | Compare | 1.0 | 5 | AA | 32 | 23 | 25 | 12 | 78 | 19 | 123 |
| X-175-06 | Compare | 1.4 | 6 | BB | 32 | 23 | 25 | 12 | 81 | 23 | 131 |
| X-175-07 | Compare | 2.5 | 7,8 | CC | 36 | 29 | 26 | 13 | 90 | 27 | 145 |
| X-175-10 | Compare | 4.0 | 10 | DD | 41 | 35 | 29 | 16 | 102 | 29 | 172 |
| X-175-13 | Compare | 6.7 | 13 | EE | 46 | 44 | 38 | 21 | 122 | 38 | 218 |
| X-175-16 | Compare | 10.0 | 16 | FF | 61 | 50 | 49 | 23 | 160 | 48 | 261 |
| X-175-20 | Compare | 16.0 | 18 - 20 | GG | 74 | 82 | 62 | 25 | 196 | 56 | 327 |
| X-175-22 | Compare | 19.0 | 22 | HH | 97 | 96 | 65 | 33 | 221 | 64 | 372 |
| X-175-26 | Compare | 26.5 | 26 | JJ | 123 | 116 | 71 | 51 | 227 | 76 | 469 |
| X-175-32 | Compare | 40.0 | 32 | KK | 123 | 116 | 87 | 51 | 353 | 93 | 503 |
| Item NO. | Compare | Working Load Limit | For Grade 100 Chain | Hook Feature Code | Dimensions | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | inch | A | B | C | D | G | H | K | |||
| X-175-05 | Compare | 1.0 | 3/16 | AA | 1.26 | 0.91 | 0.98 | 0.47 | 3.07 | 0.75 | 4.84 |
| X-175-06 | Compare | 1.4 | 7/32 | BB | 1.26 | 0.91 | 0.98 | 0.47 | 3.19 | 0.91 | 5.16 |
| X-175-07 | Compare | 2.5 | 1/4 | CC | 1.42 | 1.14 | 1.02 | 0.51 | 3.54 | 1.06 | 5.71 |
| X-175-10 | Compare | 4.0 | 3/8 | DD | 1.61 | 1.38 | 1.14 | 0.63 | 4.02 | 1.14 | 6.77 |
| X-175-13 | Compare | 6.7 | 1/2 | EE | 1.81 | 1.73 | 1.50 | 0.83 | 4.80 | 1.50 | 8.58 |
| X-175-16 | Compare | 10.0 | 5/8 | FF | 2.40 | 1.97 | 1.93 | 0.91 | 6.30 | 1.89 | 10.28 |
| X-175-20 | Compare | 16.0 | 3/4 | GG | 2.91 | 3.23 | 2.44 | 0.98 | 7.72 | 2.20 | 12.87 |
| X-175-22 | Compare | 19.0 | 7/8 | HH | 3.82 | 3.78 | 2.56 | 1.30 | 8.70 | 2.52 | 14.65 |
| X-175-26 | Compare | 26.5 | 1 | JJ | 4.84 | 4.57 | 2.80 | 2.01 | 10.91 | 2.99 | - |
| X-175-32 | Compare | 40.0 | 11/4 | KK | 4.84 | 4.57 | 3.43 | 2.01 | 13.90 | 3.66 | - |
