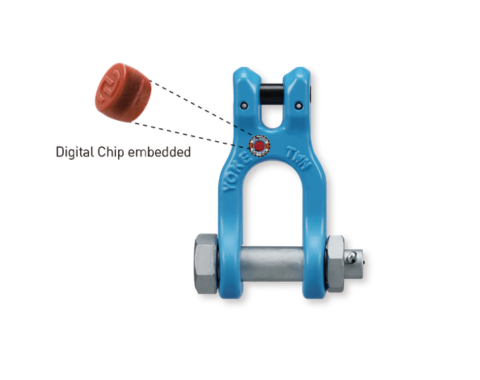

G-100 Clevis Shackle

Item No.X-066
• Quenched and Tempered Alloy Steel.
• At least 25% greater WLL than traditional G80 products.
• Manufactured in accordance with EN 1677- 1 and ASME B30.26.
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
• Design Factor 4:1.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• Tempering temperature minimum 400°C
• Magnaflux crack detection is performed 100% on each batch.
Compare Datasheet

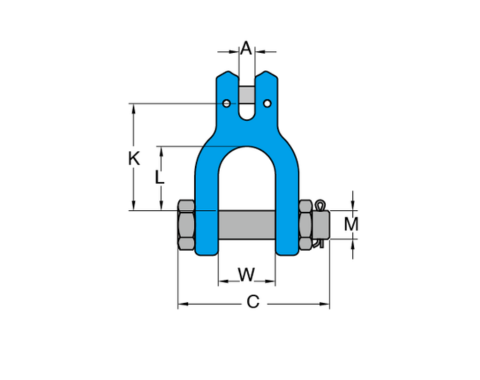

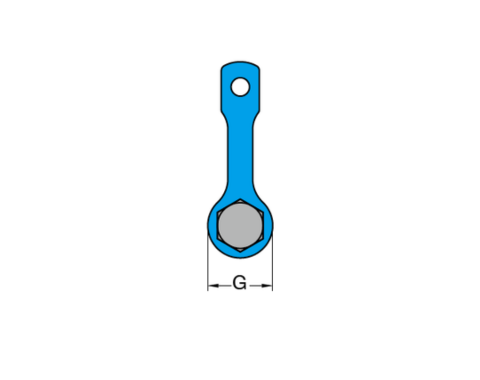

Item NO. Compare DimensionsWorking Load LimitFor Grade 100 ChainDimensions
MtonnesmmACGKLW
X-066-07 Compare 16 2.5 7, 8 10 81 34 60 36 32
X-066-10 Compare 20 4.0 10 12 94 40 78 48 34
X-066-13 Compare 22 6.7 13 15 121 44 98 64 50
X-066-16 Compare 28 10.0 16 18 140 55 112 67 60
