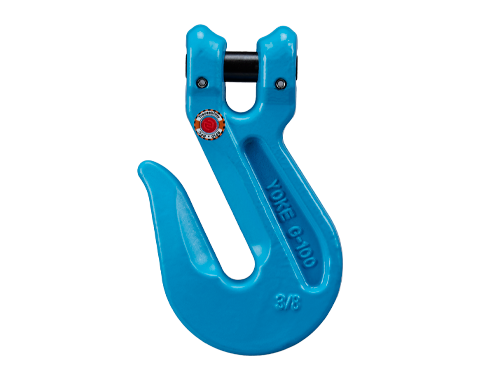

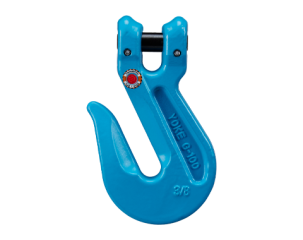

G-100 Clevis Grab Hook
Item No.X-0421
• Quenched and Tempered Alloy Steel.
• At least 25% greater WLL than traditional G80
products.
• Manufactured in accordance with DIN PAS 1061, EN
1677-1 and ASTM A952/A 952M.
• Certified by DGUV GS-OA-15-05.
• Proof Load tested at 2.5 times the WLL with
certification for each batch manufactured.
• Design Factor 4:1.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• Tempering temperature minimum 400°C
• Not for use with Omega Link
• Enables full WLL while in use, thanks to supporting
wings which prevent chain link deformation.
• For towing application only.
• At least 25% greater WLL than traditional G80
products.
• Manufactured in accordance with DIN PAS 1061, EN
1677-1 and ASTM A952/A 952M.
• Certified by DGUV GS-OA-15-05.
• Proof Load tested at 2.5 times the WLL with
certification for each batch manufactured.
• Design Factor 4:1.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• Tempering temperature minimum 400°C
• Not for use with Omega Link
• Enables full WLL while in use, thanks to supporting
wings which prevent chain link deformation.
• For towing application only.

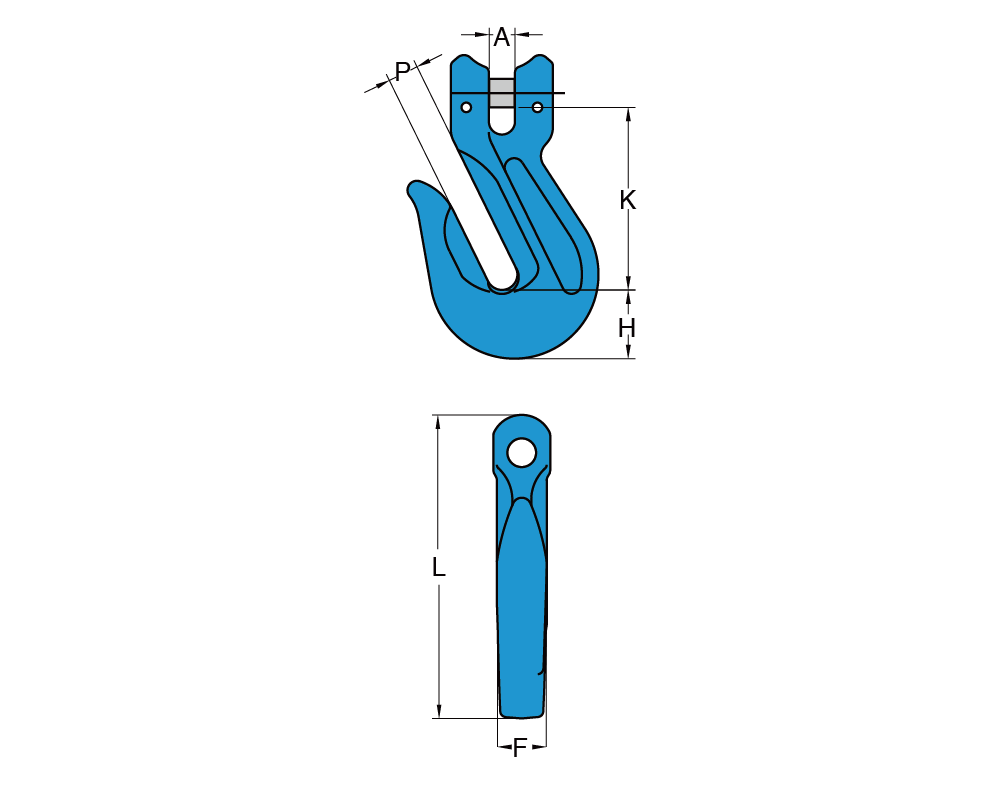

| Item NO. | Compare | Working Load Limit | For Grade 100 Chain | Dimensions | N.W. | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | mm | A | F | H | K | L | P | kg | ||
| X-0421-07 | Compare | 2.5 | 7, 8 | 10 | 16 | 22 | 54 | 93 | 10 | 0.4 |
| X-0421-10 | Compare | 4.0 | 10 | 12 | 21 | 29 | 77 | 128 | 13 | 0.8 |
| X-0421-13 | Compare | 6.7 | 13 | 15 | 26 | 38 | 99 | 165 | 17 | 1.6 |
| X-0421-16 | Compare | 10.0 | 16 | 18 | 33 | 45 | 114 | 195 | 21 | 2.7 |
| Item NO. | Compare | Working Load Limit | For Grade 100 Chain | Dimensions | N.W. | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| lbs | inch | A | F | H | K | L | P | lbs | ||
| X-0421-07 | Compare | 5700 | 1/4 - 5/16 | 0.39 | 0.63 | 0.87 | 2.13 | 3.66 | 0.39 | 0.9 |
| X-0421-10 | Compare | 8800 | 3/8 | 0.47 | 0.83 | 1.14 | 3.03 | 5.04 | 0.51 | 1.8 |
| X-0421-13 | Compare | 15000 | 1/2 | 0.59 | 1.02 | 1.50 | 3.90 | 6.50 | 0.67 | 3.5 |
| X-0421-16 | Compare | 22600 | 5/8 | 0.71 | 1.30 | 1.77 | 4.49 | 7.68 | 0.83 | 5.9 |
