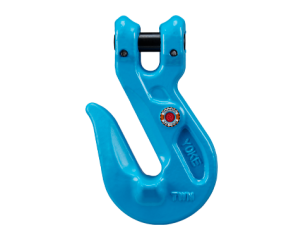

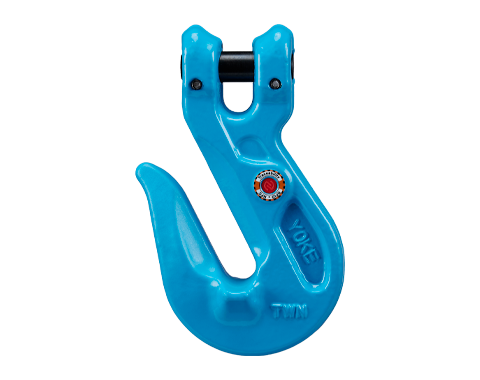

G-100 Clevis Grab Hook

Item No.X-042

• Quenched and Tempered Alloy Steel.
• At least 25% greater WLL than traditional G80
products.
• Manufactured in accordance with DIN PAS 1061, EN
1677-1 and ASTM A952/A 952M.
• Certified by DGUV GS-OA-15-05.
• Proof Load tested at 2.5 times the WLL with
certification for each batch manufactured.
• Design Factor 4:1.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• Tempering temperature minimum 400°C
• Not for use with Omega Link
• Enables full WLL while in use, thanks to supporting
wings which prevent chain link deformation.

Compare Datasheet

Metric (mm)
Imperial (inch)

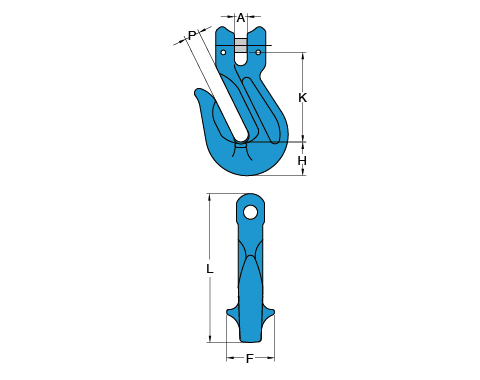

Item NO.	Compare	Working Load Limit	For Grade 100 Chain	Dimensions						N.W.
		tonnes	mm	A	F	H	K	L	P	kg
X-042-06	Compare	1.4	6	7	25	18	47	79	8	0.2
X-042-07	Compare	2.5	7, 8	10	30	22	54	93	10	0.4
X-042-10	Compare	4.0	10	12	41	29	78	128	13	0.8
X-042-13	Compare	6.7	13	15	52	38	99	165	17	1.6
X-042-16	Compare	10.0	16	18	57	45	114	195	21	2.7
X-042-20	Compare	16.0	20	22	73	52	130	222	24	4.8
X-042-22	Compare	19.0	22	24	70	56	139	247	26	6.4

Item NO.	Compare	Working Load Limit	For Grade 100 Chain	Dimensions						N.W.
		lbs	inch	A	F	H	K	L	P	lbs
X-042-06	Compare	3200	7/32	0.28	0.98	0.71	1.85	3.11	0.31	0.4
X-042-07	Compare	5700	1/4-5/16	0.39	1.18	0.87	2.13	3.66	0.39	0.9
X-042-10	Compare	8800	3/8	0.47	1.61	1.14	3.07	5.04	0.51	1.8
X-042-13	Compare	15000	1/2	0.59	2.05	1.50	3.90	6.50	0.67	3.5
X-042-16	Compare	22600	5/8	0.71	2.24	1.77	4.49	7.68	0.83	5.9
X-042-20	Compare	35300	3/4	0.87	2.87	2.05	5.12	8.74	0.94	10.6
X-042-22	Compare	42700	7/8	0.94	2.76	2.20	5.47	9.72	1.02	14.1
