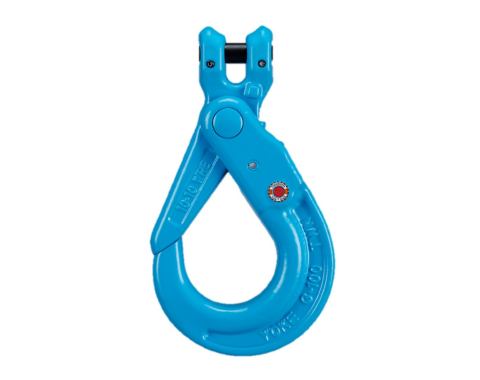

G-100 Clevis Self Locking Hook
Item No.X-026
• Quenched and Tempered Alloy Steel.
• At least 25% greater WLL than traditional G80 products.
• Manufactured in accordance with EN 1677- 3 and ASME B30.26, ASME B30.10, PAS1061.
• Certified by DGUV GS-OA-15-05
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
• Design Factor 4:1.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• Tempering temperature minimum 400°C
• Magnaflux crack detection is performed 100% on each batch.
• Each link is marked with batch number that links to the test certificate with full traceability to raw materials.
• At least 25% greater WLL than traditional G80 products.
• Manufactured in accordance with EN 1677- 3 and ASME B30.26, ASME B30.10, PAS1061.
• Certified by DGUV GS-OA-15-05
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
• Design Factor 4:1.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• Tempering temperature minimum 400°C
• Magnaflux crack detection is performed 100% on each batch.
• Each link is marked with batch number that links to the test certificate with full traceability to raw materials.

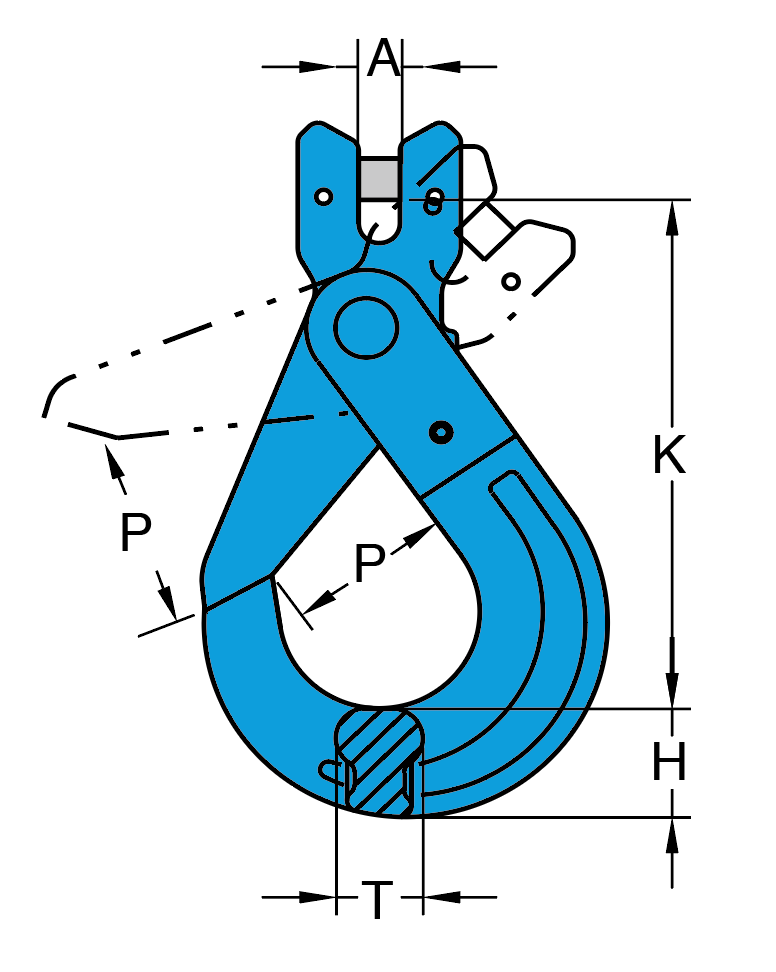

| Item NO. | Compare | Working Load Limit | For Grade 100 Chain | Dimensions | ||||
|---|---|---|---|---|---|---|---|---|
| tonnes | mm | A | H | K | P | T | ||
| X-026-06 | Compare | 3200 | 6 | 7 | 19 | 94 | 28 | 15 |
| X-026-07 | Compare | 5700 | 7,8 | 10 | 24 | 119 | 34 | 20 |
| X-026-10 | Compare | 8800 | 10 | 12 | 30 | 142 | 44 | 26 |
| X-026-13 | Compare | 15000 | 13 | 15 | 39 | 178 | 52 | 30 |
| X-026-16 | Compare | 22600 | 16 | 18 | 49 | 213 | 60 | 36 |
| X-026-20 | Compare | 35300 | 20 | 24 | 65 | 251 | 70 | 48 |
| X-026-22 | Compare | 42700 | 22 | 24 | 63 | 273 | 80 | 49 |
| Item NO. | Compare | Working Load Limit | For Grade 100 Chain | Dimensions | ||||
|---|---|---|---|---|---|---|---|---|
| lbs | inch | A | H | K | P | T | ||
| X-026-06 | Compare | 3200 | 7/32 | 0.28 | 0.75 | 3.7 | 1.1 | 0.59 |
| X-026-07 | Compare | 5700 | 1/4-5/16 | 0.39 | 0.94 | 4.69 | 1.34 | 0.79 |
| X-026-10 | Compare | 8800 | 45724 | 0.47 | 1.18 | 5.59 | 1.73 | 1.02 |
| X-026-13 | Compare | 15000 | 45659 | 0.59 | 1.54 | 7.01 | 2.05 | 1.18 |
| X-026-16 | Compare | 22600 | 45785 | 0.71 | 1.93 | 8.39 | 2.36 | 1.42 |
| X-026-20 | Compare | 35300 | 45720 | 0.94 | 2.56 | 9.88 | 2.76 | 1.89 |
| X-026-22 | Compare | 42700 | 45846 | 0.94 | 2.48 | 10.75 | 3.15 | 1.93 |
