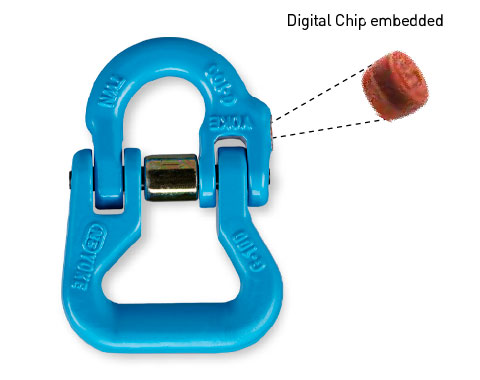

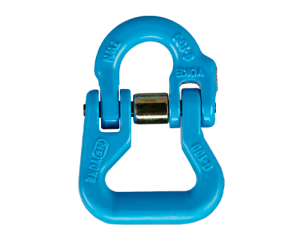

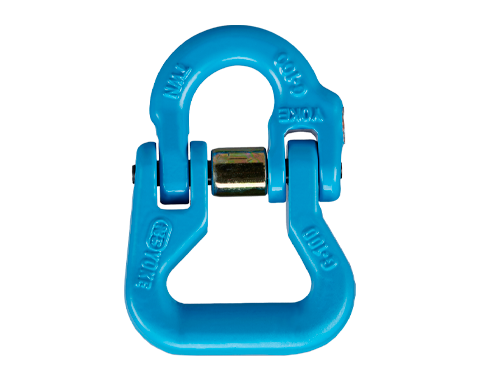

G-100 Web Sling Connector
Item No.X-016
• Quenched and Tempered Alloy Steel.
• At least 25% greater WLL than traditional G80
products.
• Manufactured in accordance with EN 1677- 1,
PAS1061 and ASME B30.26.
• Certified by DGUV GS-OA-15-05.
• Proof Load tested at 2.5 times the WLL with
certification for each batch manufactured.
• Design Factor 4:1.
• Fatigue rated to 20,000 cycles at 1.5 times the
WLL.
• Tempering temperature minimum 400°C
• Magnaflux crack detection is performed 100%
on each batch.
• At least 25% greater WLL than traditional G80
products.
• Manufactured in accordance with EN 1677- 1,
PAS1061 and ASME B30.26.
• Certified by DGUV GS-OA-15-05.
• Proof Load tested at 2.5 times the WLL with
certification for each batch manufactured.
• Design Factor 4:1.
• Fatigue rated to 20,000 cycles at 1.5 times the
WLL.
• Tempering temperature minimum 400°C
• Magnaflux crack detection is performed 100%
on each batch.

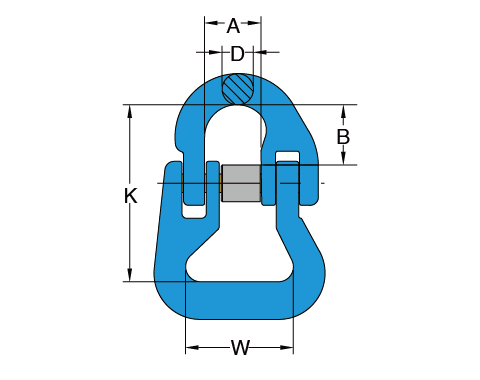

| Item NO. | Compare | Working Load Limit | For Grade 100 Chain | Dimensions | N.W. | ||||
|---|---|---|---|---|---|---|---|---|---|
| tonnes | mm | A | B | D | K | W | kg | ||
| X-016-06 | Compare | 1.4 | 6 | 15 | 17 | 7 | 56 | 39 | 0.2 |
| X-016-07 | Compare | 2.5 | 7, 8 | 18 | 23 | 9 | 63 | 39 | 0.3 |
| X-016-10 | Compare | 4.0 | 10 | 25 | 27 | 11 | 77 | 46 | 0.6 |
| X-016-13 | Compare | 6.7 | 13 | 30 | 37 | 16 | 97 | 53 | 1.1 |
| X-016-16 | Compare | 10.0 | 16 | 36 | 39 | 19 | 114 | 66 | 2.0 |
| X-016-20 | Compare | 16.0 | 20 | 42 | 46 | 23 | 132 | 79 | 3.2 |
| X-016-22 | Compare | 19.0 | 22 | 49 | 59 | 24 | 188 | 124 | 7.7 |
