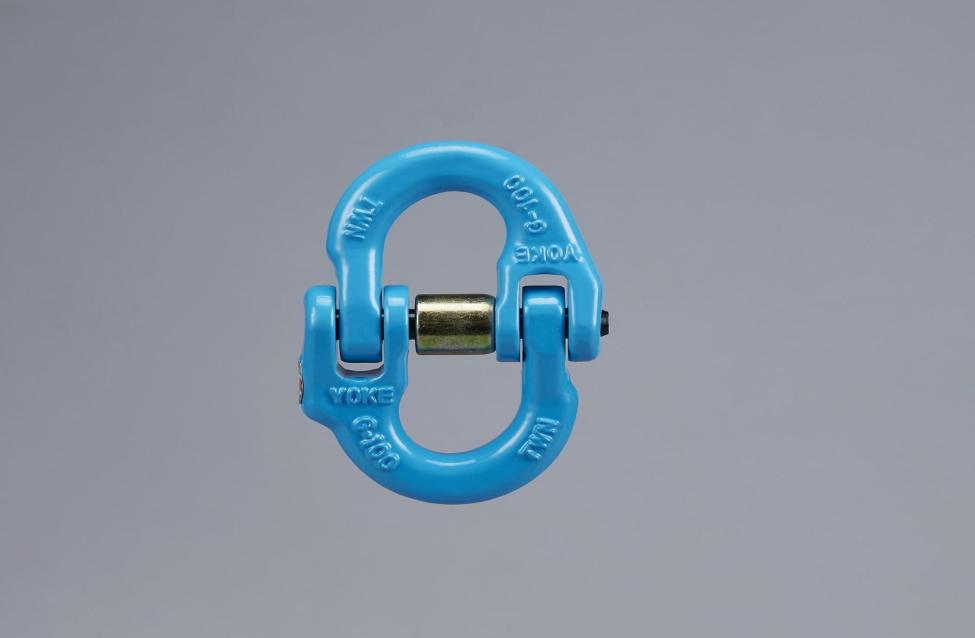

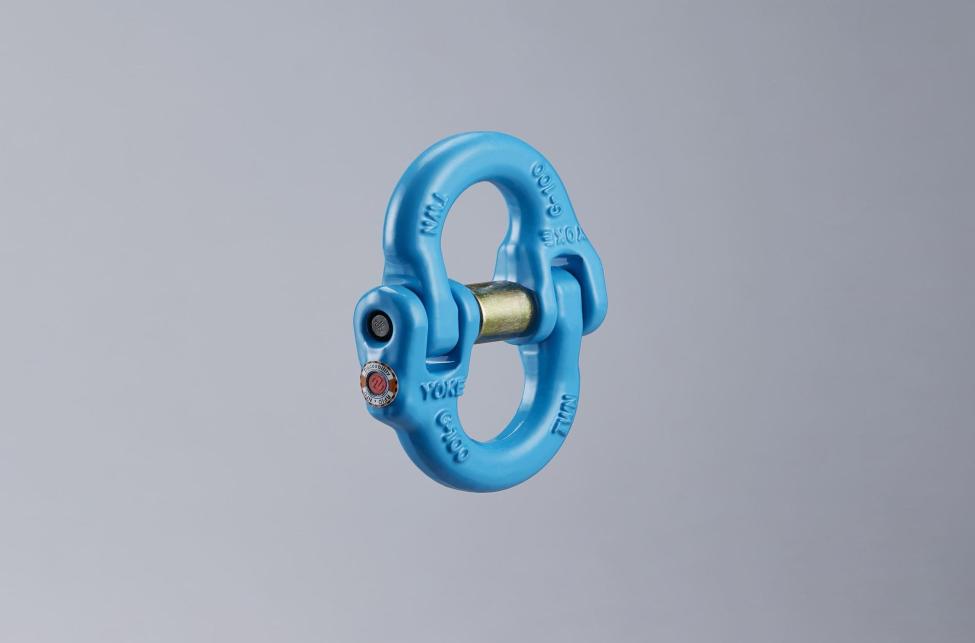

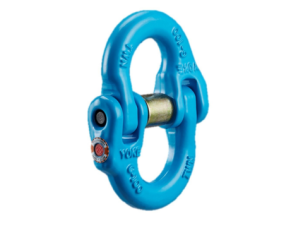

G-100 Connecting Link
Item No.X-015
• Quenched and Tempered Alloy Steel.
• At least 25% greater WLL than traditional G80
products.
• Manufactured in accordance with EN 1677- 1 and
ASTM A952/ A952M.
• Certified by DGUV GS-HM-37.
• Proof Load tested at 2.5 times the WLL with
certification for each batch manufactured.
• Design Factor 4:1.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• Suitable for use with both Grade 80 and Grade 100
chain.
• Each link is marked with batch number that links to the test certificate with full traceability to raw materials.
• At least 25% greater WLL than traditional G80
products.
• Manufactured in accordance with EN 1677- 1 and
ASTM A952/ A952M.
• Certified by DGUV GS-HM-37.
• Proof Load tested at 2.5 times the WLL with
certification for each batch manufactured.
• Design Factor 4:1.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• Suitable for use with both Grade 80 and Grade 100
chain.
• Each link is marked with batch number that links to the test certificate with full traceability to raw materials.
| Item NO. | Compare | Working Load Limit | For Grade 100 Chain | Dimensions | |||
|---|---|---|---|---|---|---|---|
| tonnes | mm | A | B | D | K | ||
| X-015-06 | Compare | 1.4 | 6 | 15 | 17 | 7 | 45 |
| X-015-07 | Compare | 2.5 | 45846 | 18 | 23 | 9 | 59 |
| X-015-10 | Compare | 4 | 10 | 25 | 27 | 11 | 69 |
| X-015-13 | Compare | 6.7 | 13 | 30 | 37 | 16 | 92 |
| X-015-16 | Compare | 10 | 16 | 36 | 39 | 19 | 101 |
| X-015-20 | Compare | 16 | 20 | 42 | 46 | 23 | 122 |
| X-015-22 | Compare | 19 | 22 | 49 | 59 | 24 | 152 |
| X-015-26 | Compare | 26.5 | 26 | 55 | 62 | 30 | 162 |
| X-015-32 | Compare | 40 | 32 | 69 | 79 | 36 | 203 |
| Item NO. | Compare | Working Load Limit | For Grade 100 Chain | Dimensions | |||
|---|---|---|---|---|---|---|---|
| lbs | inch | A | B | D | K | ||
| X-015-06 | Compare | 3200 | 7/32 | 0.59 | 0.67 | 0.28 | 1.77 |
| X-015-07 | Compare | 5700 | 1/4-5/16 | 0.71 | 0.91 | 0.35 | 2.32 |
| X-015-10 | Compare | 8800 | 45724 | 0.98 | 1.06 | 0.43 | 2.72 |
| X-015-13 | Compare | 15000 | 45659 | 1.18 | 1.46 | 0.63 | 3.62 |
| X-015-16 | Compare | 22600 | 45785 | 1.42 | 1.54 | 0.75 | 3.98 |
| X-015-20 | Compare | 35300 | 45720 | 1.65 | 1.81 | 0.91 | 4.8 |
| X-015-22 | Compare | 42700 | 45846 | 1.93 | 2.32 | 0.94 | 5.98 |
| X-015-26 | Compare | 59700 | 1 | 2.17 | 2.44 | 1.18 | 6.38 |
| X-015-32 | Compare | 90400 | 1-1/4 | 2.72 | 3.11 | 1.42 | 7.99 |
