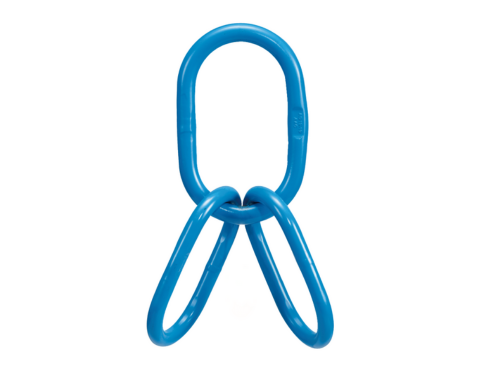

G-100 Welded Master Link Assembly
Item No.X-007
• Quenched and Tempered Alloy Steel.
• At least 25% greater WLL than traditional G80 products.
• Manufactured in accordance with ASTM A952/A952M, ASME B30.9, ASME B30.26, EN 1677-4 and OSHA 1910.184.
• Certified by DGUV GS-HM-37.
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
• Design Factor 5:1.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• Tempering temperature at a minimum of 400°C.
• Welded Master Link designed for 3-4 legs Chain, Wire Rope and Webbing Slings.
• Each link is marked with batch number that links to the test certificate with full tracebility to raw materials.
• At least 25% greater WLL than traditional G80 products.
• Manufactured in accordance with ASTM A952/A952M, ASME B30.9, ASME B30.26, EN 1677-4 and OSHA 1910.184.
• Certified by DGUV GS-HM-37.
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
• Design Factor 5:1.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• Tempering temperature at a minimum of 400°C.
• Welded Master Link designed for 3-4 legs Chain, Wire Rope and Webbing Slings.
• Each link is marked with batch number that links to the test certificate with full tracebility to raw materials.

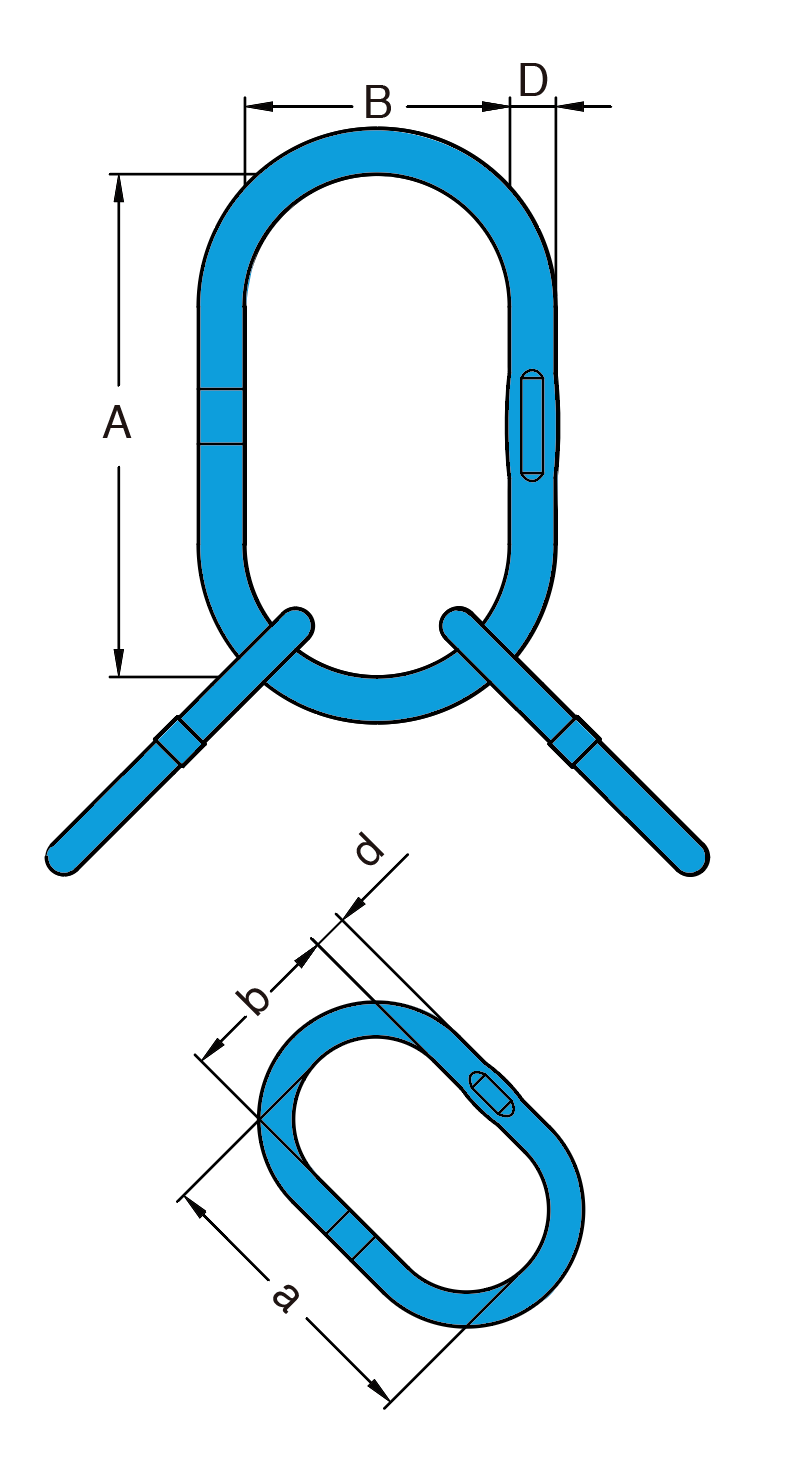

| Item NO. | Compare | Assembled with | For Grade 100 Chain | WLL β 0-45° | Proof Load | Used to single hook according to DlN 15401 NO. | Dimensions | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3and 4-leg | tonnes | kN | A | a | B | B | D | d | ||||
| X-007-19 | Compare | AD-19 + 2 AD-161 | 7,8 | 5.3 | 130 | 6 | 160 | 140 | 90 | 70 | 19 | 16 |
| X-007-25 | Compare | AD-251 + 2 AD-19 | 10 | 8.9 | 218 | 16 | 275 | 160 | 145 | 90 | 25 | 19 |
| X-007-28 | Compare | AD-28 + 2 AD-22 | 10 | 12.9 | 316 | 16 | 275 | 180 | 145 | 100 | 28 | 22 |
| X-007-32 | Compare | AD-32 + 2 AD-25 | 13 | 17 | 417 | 16 | 275 | 210 | 145 | 115 | 32 | 25 |
| X-007-36 | Compare | AD-361 + 2 AD-281 | 16 | 23.6 | 578 | 16 | 275 | 190 | 145 | 100 | 36 | 28 |
| X-007-40 | Compare | AD-40 + 2 AD-32 | 16 | 28.1 | 688 | 20 | 300 | 275 | 160 | 145 | 40 | 32 |
| X-007-45 | Compare | AD-45 + 2 AD-36 | 20 | 38.3 | 938 | 25 | 340 | 285 | 180 | 155 | 45 | 36 |
| X-007-50 | Compare | AD-50 + 2 AD-401 | 22 | 45 | 1103 | 32 | 350 | 260 | 195 | 130 | 50 | 40 |
| Item NO. | Compare | Assembled with | For Grade 100 Chain | WLL β 0-45° | Proof Load | Used to single hook according to DlN 15401 NO. | Dimensions | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3and 4-leg | lbs | lbs | A | a | B | B | D | d | ||||
| X-007-19 | Compare | AD-19 + 2 AD-161 | 1/4 - 5/16 | 11600 | 29000 | 6 | 6.3 | 5.51 | 3.54 | 2.76 | 0.75 | 0.63 |
| X-007-25 | Compare | AD-251 + 2 AD-19 | 45724 | 19600 | 49000 | 16 | 10.83 | 6.3 | 5.71 | 3.54 | 0.98 | 0.75 |
| X-007-28 | Compare | AD-28 + 2 AD-22 | 45724 | 28400 | 71000 | 16 | 10.83 | 7.09 | 5.71 | 3.94 | 1.1 | 0.87 |
| X-007-32 | Compare | AD-32 + 2 AD-25 | 45659 | 37400 | 93500 | 16 | 10.83 | 8.27 | 5.71 | 4.53 | 1.26 | 0.98 |
| X-007-36 | Compare | AD-361 + 2 AD-281 | 45785 | 52000 | 130000 | 16 | 10.83 | 7.48 | 5.71 | 3.94 | 1.42 | 1.1 |
| X-007-40 | Compare | AD-40 + 2 AD-32 | 45785 | 61900 | 154750 | 20 | 11.81 | 10.83 | 6.3 | 5.71 | 1.57 | 1.26 |
| X-007-45 | Compare | AD-45 + 2 AD-36 | 45720 | 84400 | 211000 | 25 | 13.39 | 11.22 | 7.09 | 6.1 | 1.77 | 1.42 |
| X-007-50 | Compare | AD-50 + 2 AD-401 | 45846 | 99200 | 248000 | 32 | 13.78 | 10.24 | 7.68 | 5.12 | 1.97 | 1.57 |
