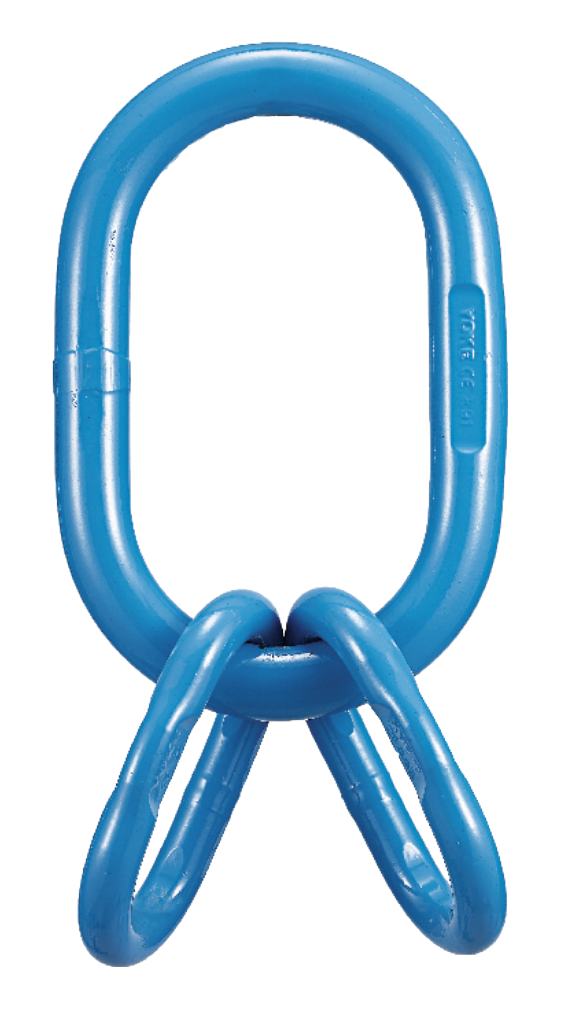

G-100 Welded Master Link Assembly
Item No.X-006
• Quenched and Tempered Alloy Steel.
• At least 25% greater WLL than traditional G80 products.
• Manufactured in accordance with ASTM A952/A952M, ASME B30.9, ASME B30.26, EN 1677-4 and OSHA 1910.184.
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
• Design Factor 4:1.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• Tempering temperature at a minimum of 400°C.
• Welded Master Link designed for 3-4 legs Chain, Wire Rope and Webbing Slings.
• Each link is marked with batch number that links to the test certificate with full tracebility to raw
• At least 25% greater WLL than traditional G80 products.
• Manufactured in accordance with ASTM A952/A952M, ASME B30.9, ASME B30.26, EN 1677-4 and OSHA 1910.184.
• Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.
• Design Factor 4:1.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• Tempering temperature at a minimum of 400°C.
• Welded Master Link designed for 3-4 legs Chain, Wire Rope and Webbing Slings.
• Each link is marked with batch number that links to the test certificate with full tracebility to raw

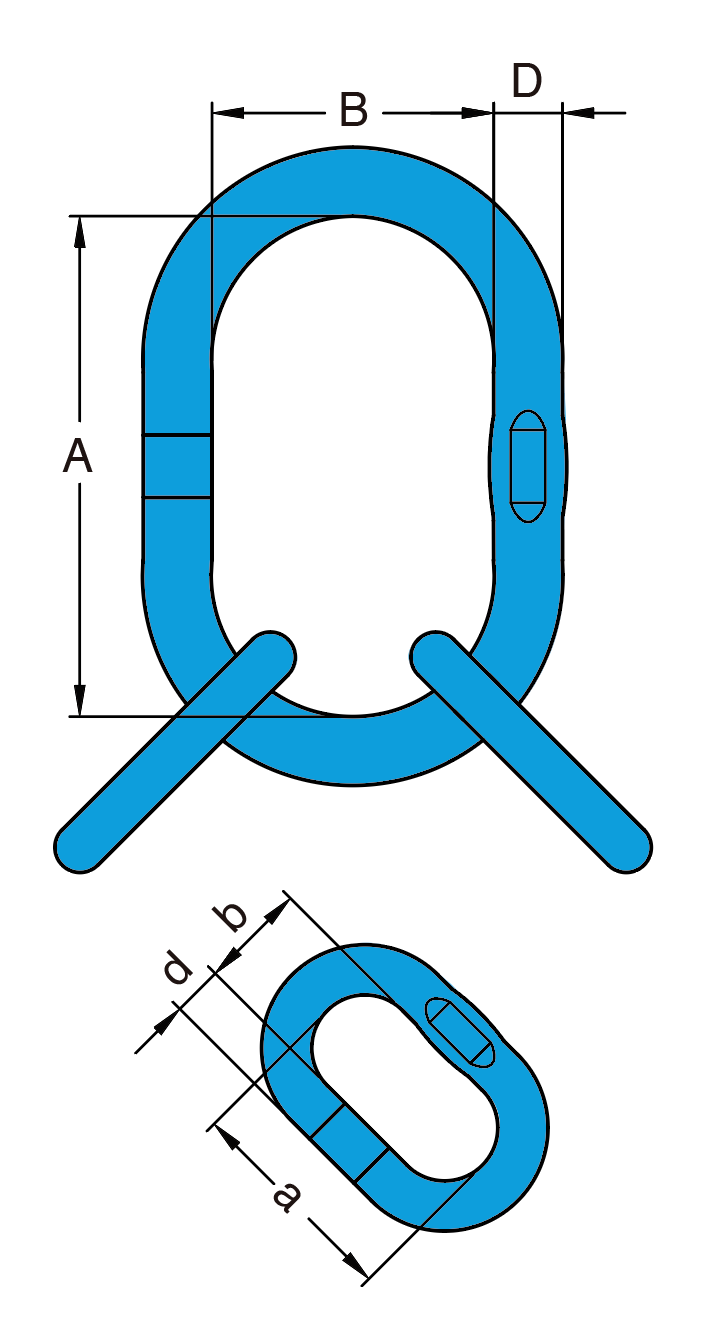

| Item NO. | Compare | Assembled with | For Grade 100 Chain | WLL β 0-45° | Proof Load | Used to single hook according to DlN 15401 NO. | Dimensions | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3and 4-leg | tonnes | kN | A | a | B | B | D | ||||
| X-006-19 | Compare | BD-19 +2 DD-13 | 6 | 4.2 | 103 | 5 | 135 | 135 | 135 | 135 | 19 |
| X-006-22 | Compare | BD-22 +2 DD-16 | 7,8 | 8.2 | 201 | 6 | 160 | 160 | 160 | 160 | 22 |
| X-006-28 | Compare | BD-28 +2 DD-19 | 10 | 10.7 | 262 | 8 | 180 | 180 | 180 | 180 | 28 |
| X-006-32 | Compare | BD-32 +2 DD-22 | 13 | 15.7 | 385 | 10 | 200 | 200 | 200 | 200 | 32 |
| X-006-36 | Compare | BD-36 +2 DD-28 | 16 | 22.2 | 544 | 16 | 260 | 260 | 260 | 260 | 36 |
| X-006-50 | Compare | BD-50 +2 DD-32 | 20 | 34.1 | 835 | 32 | 300 | 300 | 300 | 300 | 50 |
| X-006-501 | Compare | BD-50 +2 DD-36 | 22 | 40 | 980 | 32 | 300 | 300 | 300 | 300 | 50 |
| Item NO. | Compare | Assembled with | For Grade 100 Chain | Dimensions | ||||
|---|---|---|---|---|---|---|---|---|
| 3and 4-leg | A | a | B | B | D | |||
| X-006-19 | Compare | BD-19 +2 DD-13 | 7/32 | 5.3149606299213 | 2.1259842519685 | 2.9527559055118 | 0.98425196850394 | 0.75 |
| X-006-22 | Compare | BD-22 +2 DD-16 | 1/4-5/16 | 6.2992125984252 | 2.755905511811 | 3.5433070866142 | 1.3385826771654 | 0.87 |
| X-006-28 | Compare | BD-28 +2 DD-19 | 3/8 | 7.0866141732283 | 3.3464566929134 | 3.9370078740157 | 1.5748031496063 | 1.1 |
| X-006-32 | Compare | BD-32 +2 DD-22 | 1/2 | 7.8740157480315 | 4.5275590551181 | 4.3307086614173 | 1.9685039370079 | 1.26 |
| X-006-36 | Compare | BD-36 +2 DD-28 | 5/8 | 10.236220472441 | 5.511811023622 | 5.511811023622 | 2.5590551181102 | 1.42 |
| X-006-50 | Compare | BD-50 +2 DD-32 | 3/4 | 11.811023622047 | 5.9055118110236 | 7.8740157480315 | 2.755905511811 | 1.97 |
| X-006-501 | Compare | BD-50 +2 DD-36 | 7/8 | 11.811023622047 | 6.6929133858268 | 7.8740157480315 | 2.9527559055118 | 1.97 |
