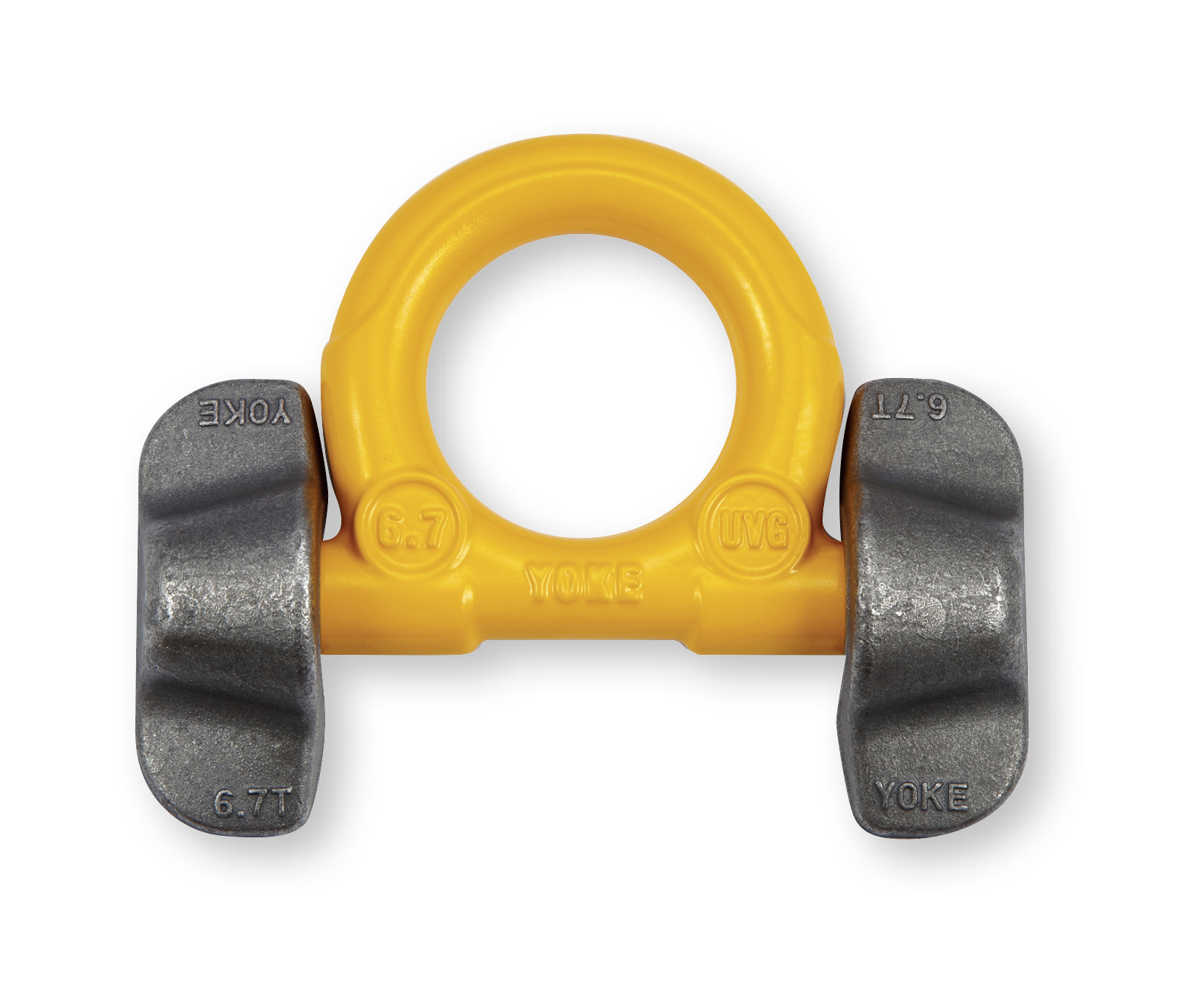

Weld-on-Ring
Item No.8-082

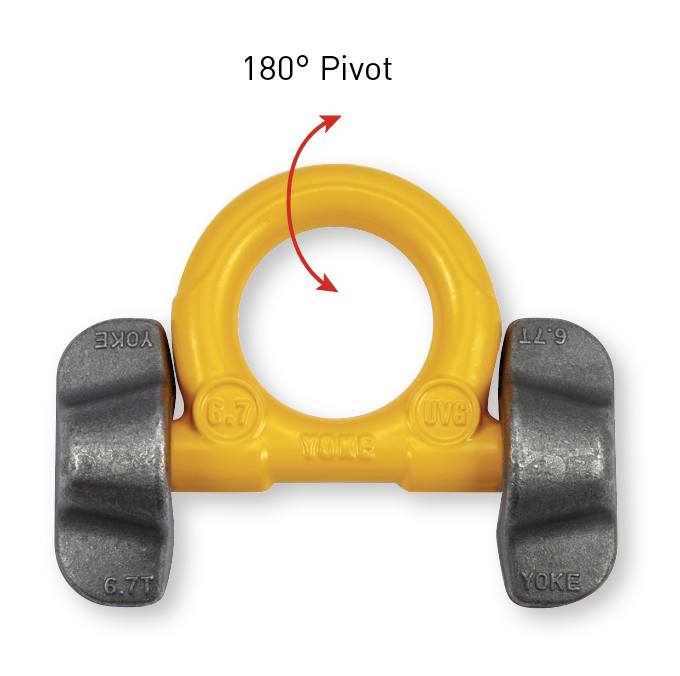

• Pivots 180°, designed minimizes head room.
• Manufactured from forged alloy steel, quenched and tempered.
• Tested and certified by DGUV GS-OA-15-04.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts are traceable to Test Certification.
• Proof tested to 2.5 times the WLL.
• The two points of attachment facilitate an even and optimal force distribution into the work piece and thus, usage of thinner base plates is possible.
• The welding block is forged out of material with excellent welding properties.
• Low profile design with high strength.
• The ring is stowable thus avoiding the hazards of tripping and snagging.
• Manufactured from forged alloy steel, quenched and tempered.
• Tested and certified by DGUV GS-OA-15-04.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts are traceable to Test Certification.
• Proof tested to 2.5 times the WLL.
• The two points of attachment facilitate an even and optimal force distribution into the work piece and thus, usage of thinner base plates is possible.
• The welding block is forged out of material with excellent welding properties.
• Low profile design with high strength.
• The ring is stowable thus avoiding the hazards of tripping and snagging.

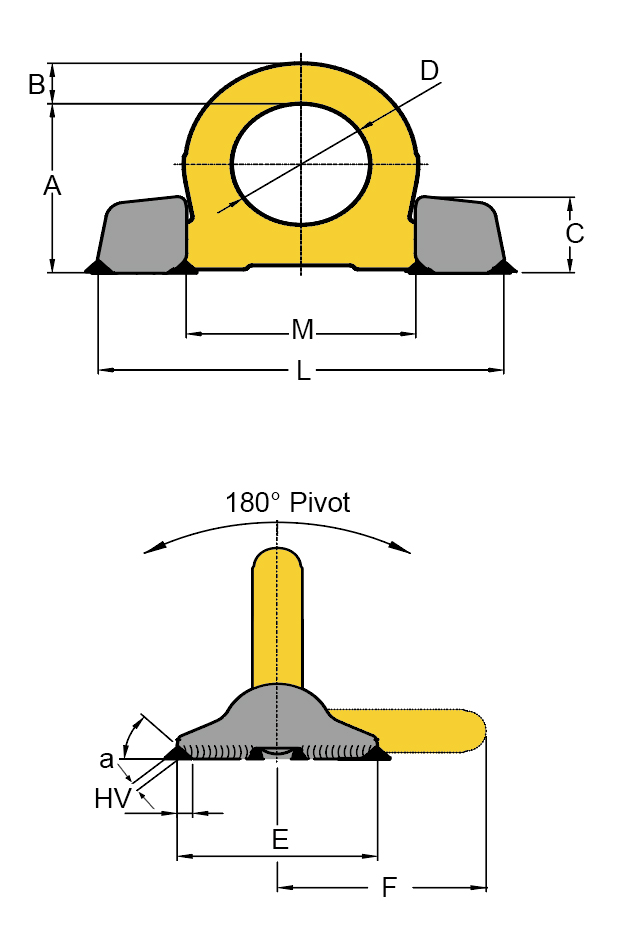

| Item NO. | file download | Compare | Working Load Limit | Dimensions | N.W. | Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | A | a | B | C | D | F | HV | L | kg | E | M | |||
| 8-082-04 | Download | Compare | 4.0 | 66 | 3 | 14 | 30 | 48 | 70 | 5 | 135 | 0.6 | 65 | 76 |
| 8-082-06 | Download | Compare | 6.7 | 85 | 3 | 20 | 39 | 60 | 91 | 5 | 171 | 1.5 | 89 | 98 |
| 8-082-10 | Download | Compare | 10.0 | 95 | 4 | 21 | 46 | 65 | 100 | 7 | 196 | 2.4 | 100 | 106 |
| 8-082-16 | Download | Compare | 16.0 | 127 | 4 | 30 | 57 | 90 | 136 | 8 | 263 | 5.5 | 130 | 149 |
| 8-082-30 | Download | Compare | 31.5 | 178 | 4 | 42 | 75 | 130 | 195 | 15 | 375 | 15.8 | 160 | 213 |
| Item NO. | file download | Compare | Working Load Limit | Dimensions | N.W. | Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | A | a | B | C | D | F | HV | L | lbs | E | M | |||
| 8-082-04 | Download | Compare | 4.0 | 2.60 | 0.1 | 0.55 | 1.18 | 1.89 | 2.76 | 0.20 | 5.31 | 1.3 | 2.56 | 2.99 |
| 8-082-06 | Download | Compare | 6.7 | 3.35 | 0.1 | 0.79 | 1.54 | 2.36 | 3.58 | 0.20 | 6.73 | 3.3 | 3.50 | 3.86 |
| 8-082-10 | Download | Compare | 10.0 | 3.74 | 0.2 | 0.83 | 1.81 | 2.56 | 3.94 | 0.28 | 7.72 | 5.3 | 3.94 | 4.17 |
| 8-082-16 | Download | Compare | 16.0 | 5.00 | 0.2 | 1.18 | 2.24 | 3.54 | 5.35 | 0.31 | 10.35 | 12.1 | 5.12 | 5.87 |
| 8-082-30 | Download | Compare | 31.5 | 7.01 | 0.2 | 1.65 | 2.95 | 5.12 | 7.68 | 0.59 | 14.76 | 34.8 | 6.30 | 8.39 |
