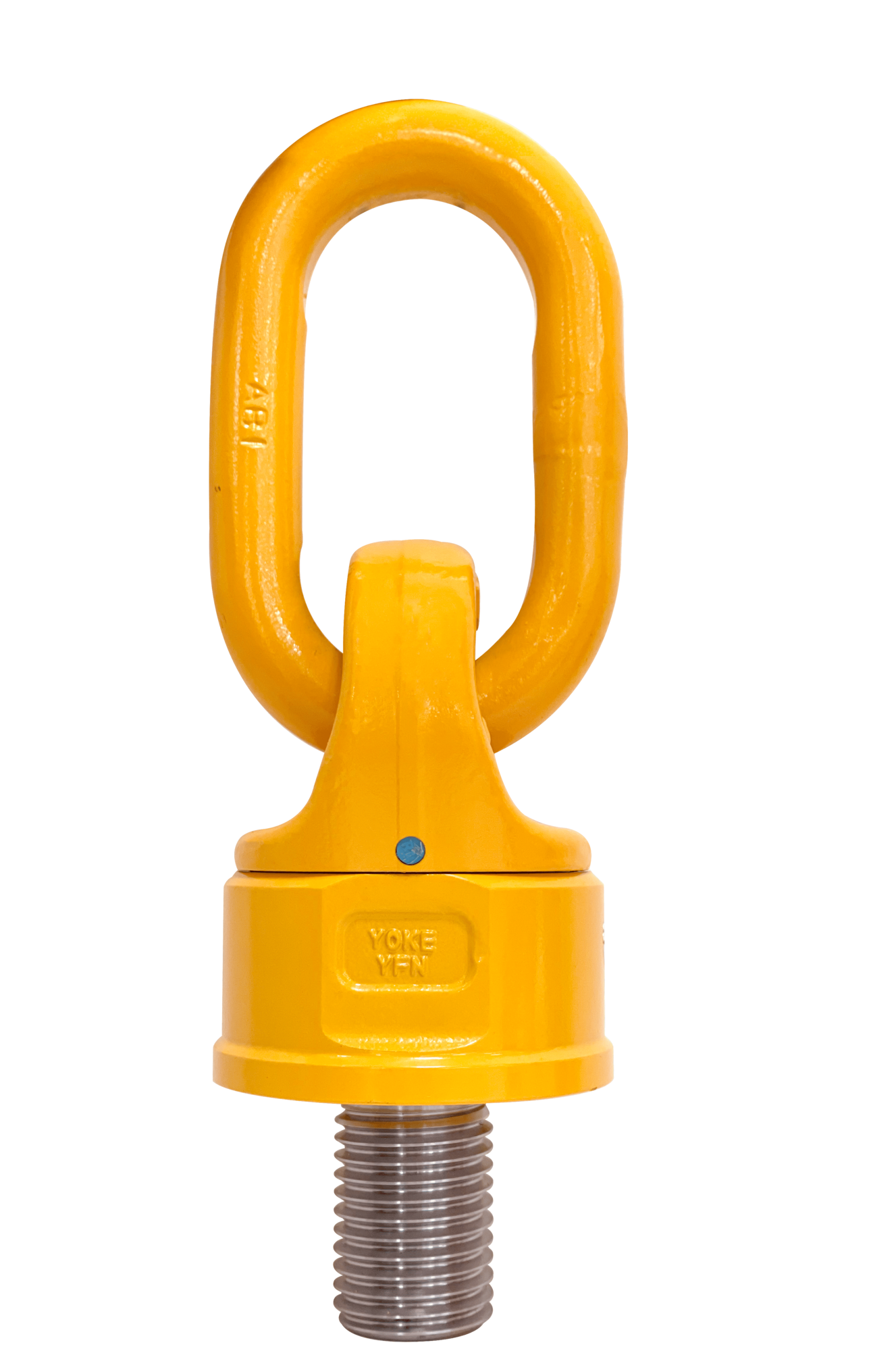

Swivel Point
Item No.8-271 and 8-272
•Pivots to 230°, rotates through 360° due to its unique ball bearing design.
• Manufactured from forged alloy steel, quenched and tempered.
• Tested in accordance with EN 1677-1 and EN 1677-4.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts and Traceability Code links to Test Certificate sheet.
• Bolts are UNC thread.
• Proof tested to 2.5 times the WLL.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
• Easy to attach or dismantle due to the forged hexagon shaped body of the Swivel Point.
• Capable of rotating under load. Do not turn continuously in 90 degree direction at full load.
• Manufactured from forged alloy steel, quenched and tempered.
• Tested in accordance with EN 1677-1 and EN 1677-4.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts and Traceability Code links to Test Certificate sheet.
• Bolts are UNC thread.
• Proof tested to 2.5 times the WLL.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
• Easy to attach or dismantle due to the forged hexagon shaped body of the Swivel Point.
• Capable of rotating under load. Do not turn continuously in 90 degree direction at full load.
Swivel Point
| Item NO. | file download | Compare | Working Load Limit | Thread version | Dimensions | Torque in | N.W. | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | M | E | Pitch DIN13 | A | B | C | D | F | G | H | K | Nm | kg | |||
| 8-271-400 | Download | Compare | 40.0 | M 90 | 135 | 6.00 | 90 | 130 | 210 | 45 | 340 | 170 | 83 | 145 | 2000 | 33.9 |
| 8-271-310 | Download | Compare | 40.0 | M 72 | 108 | 6.00 | 90 | 130 | 210 | 45 | 340 | 170 | 83 | 145 | 1200 | 30.6 |
| 8-271-161 | Download | Compare | 20.0 | M 64 | 96 | 6.00 | 72 | 120 | 150 | 32 | 270 | 120 | 60 | 94 | 800 | 11.6 |
| 8-271-160 | Download | Compare | 20.0 | M 56 | 84 | 5.50 | 72 | 120 | 150 | 32 | 270 | 120 | 60 | 94 | 800 | 10.7 |
| 8-271-140 | Download | Compare | 20.0 | M 52 | 78 | 5.00 | 72 | 120 | 150 | 32 | 270 | 120 | 60 | 94 | 750 | 10.5 |
| 8-271-130 | Download | Compare | 14.0 | M 48 | 72 | 5.00 | 67 | 110 | 122 | 25 | 235 | 98 | 50 | 84 | 550 | 6.1 |
| 8-271-120 | Download | Compare | 13.0 | M 42 | 63 | 4.50 | 67 | 110 | 122 | 25 | 235 | 98 | 50 | 84 | 550 | 5.5 |
| 8-271-080 | Download | Compare | 10.0 | M 36 | 54 | 4.00 | 50 | 86 | 120 | 22 | 206 | 90 | 48 | 80 | 410 | 4.6 |
| 8-271-035 | Download | Compare | 4.0 | M 24 | 36 | 3.00 | 41 | 66 | 88 | 19 | 154 | 78 | 36 | 70 | 150 | 2.2 |
| 8-271-020 | Download | Compare | 2.5 | M 20 | 30 | 2.50 | 36 | 54 | 68 | 13 | 122 | 62 | 29 | 55 | 70 | 1.0 |
| 8-271-013 | Download | Compare | 1.5 | M 16 | 24 | 2.00 | 36 | 50 | 54 | 13 | 104 | 46 | 22 | 41 | 30 | 0.5 |
| 8-271-006 | Download | Compare | 0.7 | M 12 | 18 | 1.75 | 35 | 50 | 45 | 10 | 95 | 40 | 18 | 36 | 10 | 0.3 |
| 8-271-004 | Download | Compare | 0.6 | M 10 | 15 | 1.50 | 29 | 32 | 40 | 8 | 72 | 35 | 16 | 30 | 10 | 0.2 |
| 8-271-003 | Download | Compare | 0.4 | M 8 | 12 | 1.25 | 29 | 32 | 40 | 8 | 72 | 35 | 16 | 30 | 10 | 0.2 |
| 8-271-350 | Download | Compare | 40.0 | M 80 | 120 | 6.00 | 90 | 130 | 210 | 45 | 340 | 170 | 83 | 145 | 1500 | 31.6 |
| 8-271-060 | Download | Compare | 6.0 | M 30 | 45 | 3.50 | 50 | 86 | 120 | 22 | 206 | 90 | 48 | 80 | 350 | 4.5 |
| Item NO. | Compare | Working Load Limit | Thread version | Dimensions | Torque in | N.W. | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lbs | M | E | TPI | A | B | C | D | F | G | H | K | ft.lbs | lbs | ||
| 8-272-160 | Compare | 44000 | 2 1/2 | 3.75 | 4UNC | 2.83 | 4.72 | 5.91 | 1.26 | 10.63 | 4.72 | 2.36 | 3.7 | 590 | 23.5 |
| 8-272-120 | Compare | 28600 | 1 3/4 | 2.63 | 5UNC | 2.64 | 4.33 | 4.80 | 0.98 | 9.25 | 3.86 | 1.97 | 3.31 | 400 | 12.1 |
| 8-272-080 | Compare | 22000 | 1 1/2 | 2.25 | 6UNC | 1.97 | 3.39 | 4.72 | 0.87 | 8.11 | 3.54 | 1.89 | 3.15 | 300 | 10.0 |
| 8-272-060 | Compare | 13200 | 1 1/4 | 1.88 | 7UNC | 1.97 | 3.39 | 4.72 | 0.87 | 8.11 | 3.54 | 1.89 | 3.15 | 250 | 9.9 |
| 8-272-035 | Compare | 8800 | 1 | 1.50 | 8UNC | 1.61 | 2.60 | 3.46 | 0.75 | 6.06 | 3.07 | 1.42 | 2.76 | 110 | 4.8 |
| 8-272-020 | Compare | 5500 | 7/8 | 1.31 | 9UNC | 1.42 | 2.13 | 2.68 | 0.51 | 4.8 | 2.44 | 1.14 | 2.17 | 50 | 2.2 |
| 8-272-018 | Compare | 4400 | 3/4 | 1.13 | 10UNC | 1.42 | 1.97 | 2.68 | 0.51 | 4.09 | 1.81 | 0.87 | 1.61 | 20 | 1.2 |
| 8-272-013 | Compare | 3300 | 5/8 | 0.94 | 11UNC | 1.42 | 1.97 | 2.13 | 0.51 | 4.09 | 1.81 | 0.87 | 1.61 | 20 | 1.2 |
| 8-272-006 | Compare | 1550 | 1/2 | 0.75 | 13UNC | 1.38 | 1.97 | 1.77 | 0.39 | 3.74 | 1.57 | 0.71 | 1.42 | 7 | 0.7 |
| 8-272-140 | Compare | 44000 | 2 1/4 | 3.38 | 4.5UNC | 2.83 | 4.72 | 5.91 | 1.26 | 10.63 | 4.72 | 2.36 | 3.7 | 550 | 23.1 |
| 8-272-130 | Compare | 30800 | 2 | 3.00 | 4.5UNC | 2.64 | 4.33 | 4.80 | 0.98 | 9.25 | 3.86 | 1.97 | 3.31 | 400 | 13.5 |
