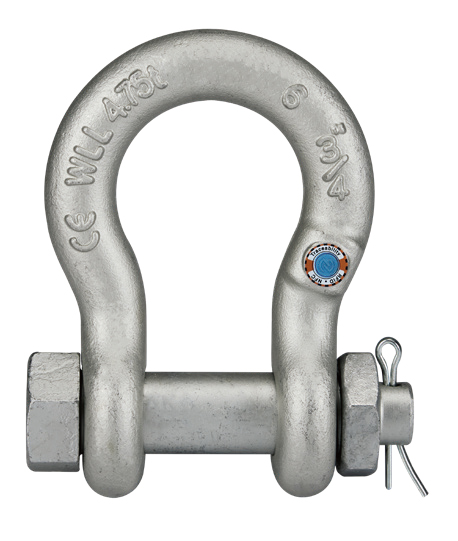

Shackle DA-808
Item No.DA-808
● Shackles are forged alloy steel with alloy pin, quenched and
tempered.
● Charpy tested in accordance with DNV-ST-E271.
● Meet the performance requirements of US Federal Specification
RR-C-271, Type IVA, Grade A, Class 3.
● Application of shackles certified in accordance with DNV-ST-E271
and DNV-ST-E273.
● Size and the Working Load Limit permanently shown on each
shackle.

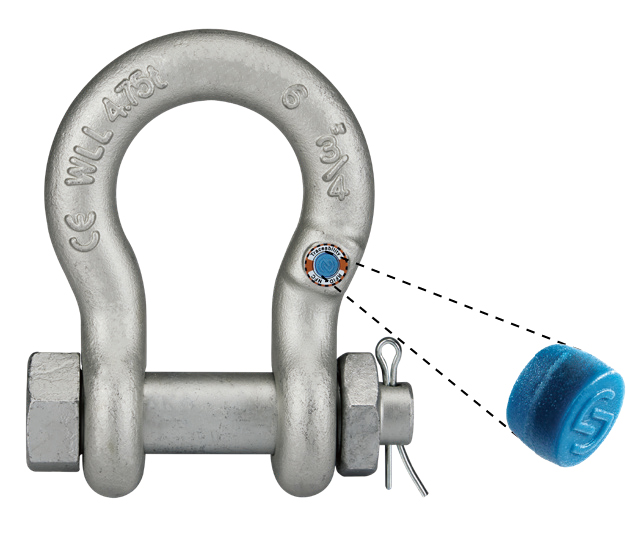

● All shackles with Traceability Code which links to Test Certificate
and quality traceability.
● Proof tested to 2 times the WLL.
● Design factor 8:1
● 20,000 cycle fatigue rated to 1.5 times Working Load Limit.
● 100% magnaflux crack detection during manufacturing.
● Charpy test of 42 joules (31ft-lb) at -40°C (-40°F) for normal
section.
● Hot dip galvanized.
tempered.
● Charpy tested in accordance with DNV-ST-E271.
● Meet the performance requirements of US Federal Specification
RR-C-271, Type IVA, Grade A, Class 3.
● Application of shackles certified in accordance with DNV-ST-E271
and DNV-ST-E273.
● Size and the Working Load Limit permanently shown on each
shackle.
● All shackles with Traceability Code which links to Test Certificate
and quality traceability.
● Proof tested to 2 times the WLL.
● Design factor 8:1
● 20,000 cycle fatigue rated to 1.5 times Working Load Limit.
● 100% magnaflux crack detection during manufacturing.
● Charpy test of 42 joules (31ft-lb) at -40°C (-40°F) for normal
section.
● Hot dip galvanized.
| Item NO. | Compare | Working Load Limit | Normina Size | Dimensions | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | A | B | D | G | H | W | E | |||
| DA-808-13 | Compare | 2 | 13 | 49 | 13 | 16 | 30 | 85 | 20 | 33 |
| DA-808-16 | Compare | 3.25 | 16 | 61 | 16 | 19 | 38 | 106 | 27 | 43 |
| DA-808-19 | Compare | 4.75 | 19 | 72 | 19 | 22 | 46 | 126 | 33 | 50 |
| DA-808-22 | Compare | 6.5 | 22 | 86 | 22 | 25 | 53 | 148 | 38 | 58 |
| DA-808-26 | Compare | 8.5 | 26 | 96 | 26 | 28 | 61 | 166 | 44 | 68 |
| DA-808-28 | Compare | 9.5 | 28 | 111 | 28 | 32 | 68 | 190 | 46 | 74 |
| DA-808-32 | Compare | 12 | 32 | 121 | 32 | 36 | 76 | 210 | 54 | 84 |
| DA-808-36 | Compare | 13.5 | 36 | 134 | 36 | 38 | 84 | 232 | 59 | 92 |
| DA-808-38 | Compare | 17 | 38 | 146 | 38 | 42 | 92 | 254 | 60 | 99 |
| DA-808-45 | Compare | 25 | 45 | 178 | 47 | 51 | 106 | 313 | 73 | 127 |
| DA-808-50 | Compare | 35 | 50 | 197 | 53 | 57 | 122 | 347 | 83 | 146 |
| Item NO. | Compare | Working Load Limit | Normina Size | Dimensions | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | A | B | D | G | H | W | E | |||
| DA-808-13 | Compare | 2 | 45659 | 1.93 | 0.51 | 0.63 | 1.18 | 3.35 | 0.79 | 1.3 |
| DA-808-16 | Compare | 3.25 | 45785 | 2.4 | 0.63 | 0.75 | 1.5 | 4.17 | 1.06 | 1.69 |
| DA-808-19 | Compare | 4.75 | 45720 | 2.83 | 0.75 | 0.87 | 1.81 | 4.96 | 1.3 | 1.97 |
| DA-808-22 | Compare | 6.5 | 45846 | 3.39 | 0.87 | 0.98 | 2.09 | 5.83 | 1.5 | 2.28 |
| DA-808-26 | Compare | 8.5 | 1 | 3.78 | 1.02 | 1.1 | 2.4 | 6.54 | 1.73 | 2.68 |
| DA-808-28 | Compare | 9.5 | 1 - 1/8 | 4.37 | 1.1 | 1.26 | 2.68 | 7.48 | 1.81 | 2.91 |
| DA-808-32 | Compare | 12 | 1 - 1/4 | 4.76 | 1.26 | 1.42 | 2.99 | 8.27 | 2.13 | 3.31 |
| DA-808-36 | Compare | 13.5 | 1 - 3/8 | 5.28 | 1.42 | 1.5 | 3.31 | 9.13 | 2.32 | 3.62 |
| DA-808-38 | Compare | 17 | 1 - 1/2 | 5.75 | 1.5 | 1.65 | 3.62 | 10 | 2.36 | 3.9 |
| DA-808-45 | Compare | 25 | 1 - 3/4 | 7.01 | 1.85 | 2.01 | 4.17 | 12.32 | 2.87 | 5 |
| DA-808-50 | Compare | 35 | 2 | 7.76 | 2.09 | 2.24 | 4.8 | 13.66 | 3.27 | 5.75 |
