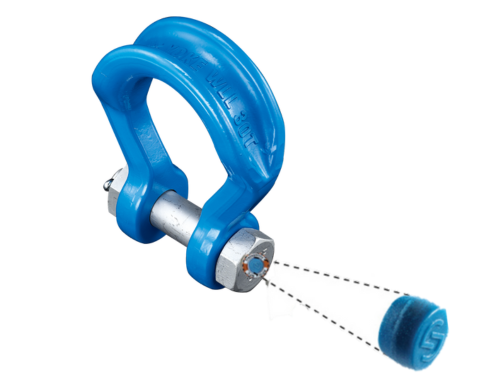

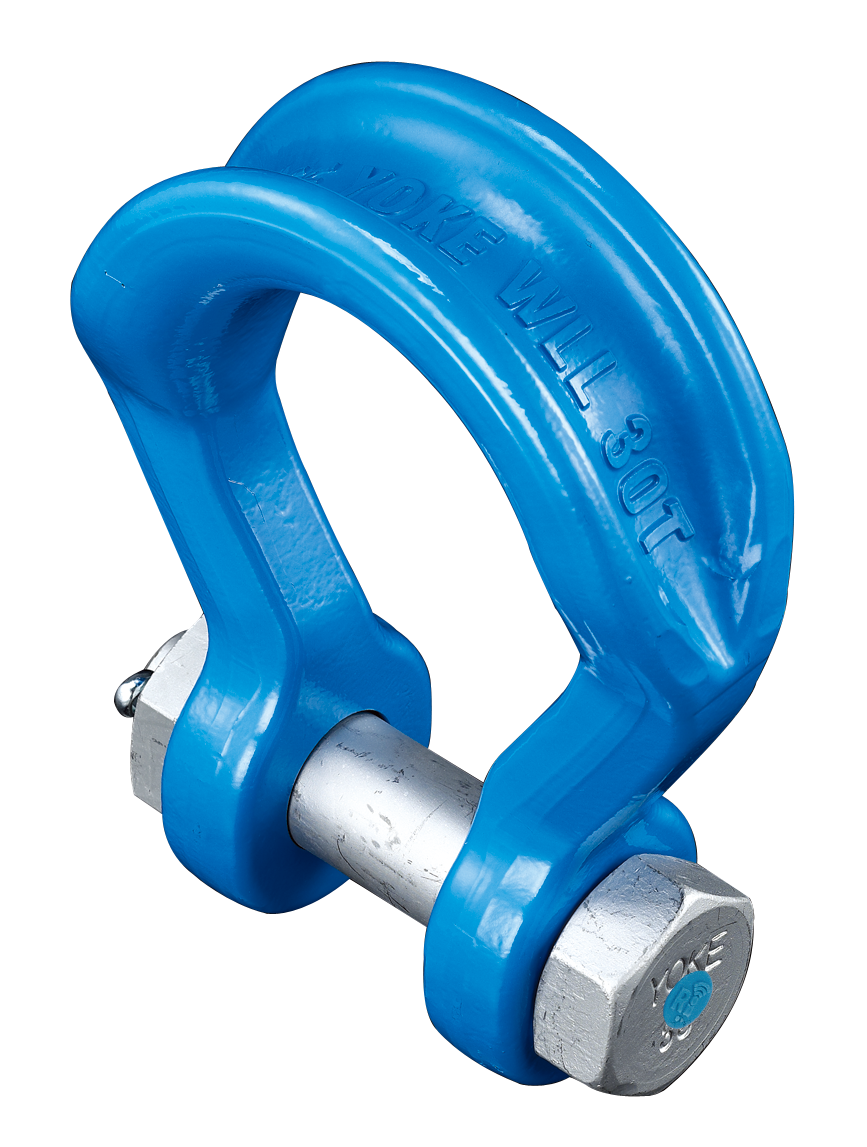

Forged Alloy Wide Body Shackle
Item No.8-809
● Shackles are forged alloy steel with alloy pin, quenched
and tempered.
● Size and the Working Load Limit permanently shown on
each shackle.
● All shackles with Traceability Code which links to Test
Certificate and quality traceability.
● Proof tested to 2 times the WLL.
● Design factor 5:1
● 20,000 cycle fatigue rated to 1.5 times Working Load
Limit.
● 100% magnaflux crack detection during manufacturing.
● Hot dip galvanized pin.
and tempered.
● Size and the Working Load Limit permanently shown on
each shackle.
● All shackles with Traceability Code which links to Test
Certificate and quality traceability.
● Proof tested to 2 times the WLL.
● Design factor 5:1
● 20,000 cycle fatigue rated to 1.5 times Working Load
Limit.
● 100% magnaflux crack detection during manufacturing.
● Hot dip galvanized pin.
| Item NO. | Compare | Working Load Limit | Normina Size | Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | A | B | C | D | E | G | H | K | N | W | |||
| 8-809-19 | Compare | 7 | 19 | 91 | 41 | 18 | 22 | 32 | 46 | 150 | 104 | 32 | 33 |
| 8-809-26 | Compare | 12.5 | 26 | 118 | 54 | 23 | 29 | 41 | 61 | 194 | 140 | 35 | 44 |
| 8-809-32 | Compare | 18 | 32 | 148 | 64 | 30 | 36 | 51 | 68 | 238 | 172 | 38 | 54 |
| 8-809-38 | Compare | 30 | 38 | 176 | 80 | 35 | 42 | 64 | 89 | 289 | 216 | 45 | 60 |
| Item NO. | Compare | Working Load Limit | Normina Size | Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | A | B | C | D | E | G | H | K | R | W | |||
| 8-809-19 | Compare | 7 | 45720 | 3.58 | 1.61 | 0.71 | 0.87 | 1.26 | 1.81 | 5.91 | 4.09 | 1.26 | 1.3 |
| 8-809-26 | Compare | 12.5 | 1 | 4.65 | 2.13 | 0.91 | 1.14 | 1.61 | 2.4 | 7.64 | 5.51 | 1.38 | 1.73 |
| 8-809-32 | Compare | 18 | 1 - 1/4 | 5.83 | 2.52 | 1.18 | 1.42 | 2.01 | 2.68 | 9.37 | 6.77 | 1.5 | 2.13 |
| 8-809-38 | Compare | 21 | 1 - 1/2 | 6.93 | 3.15 | 1.38 | 1.65 | 2.52 | 3.5 | 11.38 | 8.5 | 1.77 | 2.36 |
