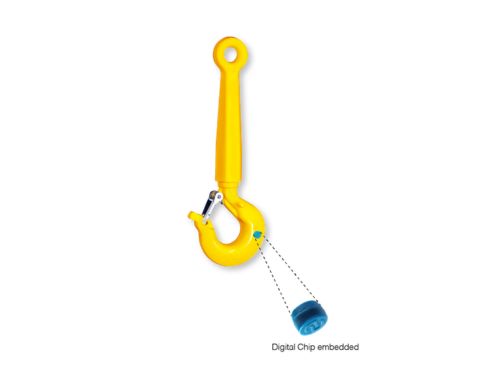

ROV Shank Hook 8-931

Item No.8-931

● ROV: Remotely Operated Vehicle.
● Forged alloy steel, quenched and tempered.
● Designed specifically for ROV application.
● Individually stamped with the Working Load Limit.
● Painted yellow to ensure ease of sight in water.

Compare Datasheet

Metric (mm)
Imperial (inch)

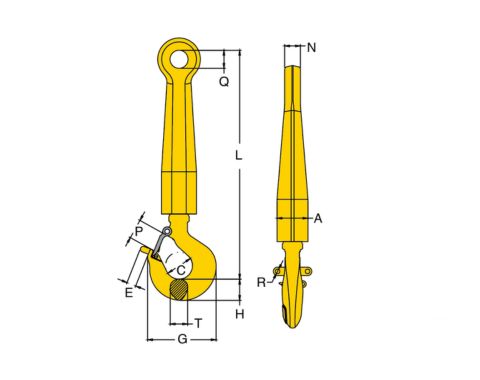

Item NO.	Compare	Working Load Limit	Dimensions
		tonnes	A	C	E	G	H	L	N	P	Q	R	T
8-931-05	Compare	5.4	55	48	20	122	38	407	28	35	32	8	31
8-931-08	Compare	8	55	62	20	160	48	431	28	43	32	8	35
8-931-11	Compare	11.5	65	77	30	196	56	487	40	61	50	8	47
8-931-16	Compare	16	65	83	30	221	64	493	40	72	50	8	56
8-931-22	Compare	22	85	109	50	277	76	565	52	88	65	10	68
8-931-32	Compare	31.5	85	127	50	353	91	596	52	89	65	10	76

Item NO.	Compare	Working Load Limit	Dimensions
		tonnes	A	C	E	G	H	L	N	P	Q	R	T
8-931-05	Compare	5.4	2.17	1.89	0.79	4.8	1.5	16.03	1.1	1.38	1.26	0.32	1.22
8-931-08	Compare	8	2.17	2.44	0.79	6.3	1.89	16.97	1.1	1.69	1.26	0.32	1.38
8-931-11	Compare	11.5	2.56	3.03	1.18	7.72	2.21	19.18	1.58	2.4	1.97	0.32	1.85
8-931-16	Compare	16	2.56	3.27	1.18	8.7	2.52	19.41	1.58	2.84	1.97	0.32	2.21
8-931-22	Compare	22	3.35	4.29	1.97	10.91	2.99	22.25	2.05	3.47	2.56	0.39	2.68
8-931-32	Compare	31.5	3.35	5	1.97	13.9	3.58	23.47	2.05	3.5	2.56	0.39	2.99
