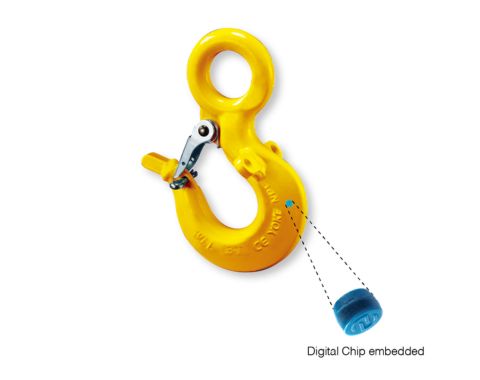

ROV Eye Sling Hook 8-921

Item No.8-921

● ROV: Remotely Operated Vehicle.
● Forged alloy steel, quenched and tempered.
● Designed specifically for ROV application.
● Individually stamped with the Working Load Limit.
● Painted yellow to ensure ease of sight in water.

Compare Datasheet

Metric (mm)
Imperial (inch)

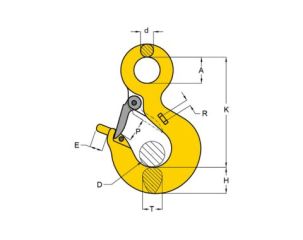

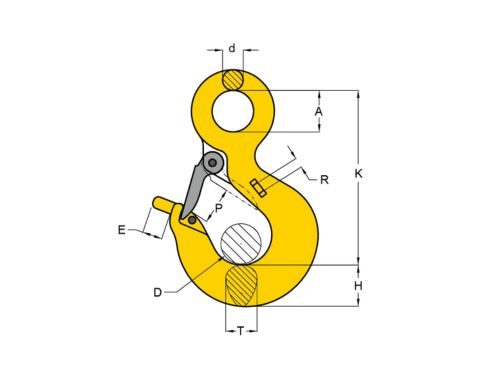

Item NO.	Compare	Working Load Limit	Dimensions
		tonnes	A	D	d	E	H	K	P	R	T
8-921-03	Compare	-	-	-	-	-	-	-	-	-	-
8-921-05	Compare	3	32	25	15	20	29	122	25	8	24
8-921-07	Compare	5	40	31	18	20	37	149	31	8	31
8-921-11	Compare	7	51	39	24	20	48	192	39	8	36
8-921-15	Compare	11	63	57	28	30	56	232	57	8	47
8-921-22	Compare	15	72	62	33	30	64	260	62	8	52
8-921-30	Compare	22	91	81	40	50	74	318	81	10	68

Item NO.	Compare	Working Load Limit	Dimensions
		tonnes	A	D	d	E	H	K	P	R	T
8-921-03	Compare	3	1.26	0.98	0.59	0.78	1.14	4.8	0.98	0.31	0.95
8-921-05	Compare	5	1.57	1.22	0.71	0.78	1.46	5.87	1.22	0.31	1.22
8-921-07	Compare	7	2	1.54	0.95	0.78	1.89	7.56	1.54	0.31	1.42
8-921-11	Compare	11	2.48	2.24	1.1	1.18	2.2	9.13	2.24	0.31	1.85
8-921-15	Compare	15	2.84	2.44	1.3	1.18	2.52	10.24	2.44	0.31	2.05
8-921-22	Compare	22	3.58	3.19	1.57	1.96	2.91	12.5	3.19	0.39	2.68
8-921-30	Compare	30	3.58	3.27	1.77	1.96	3.62	13.66	3.27	0.39	2.99
