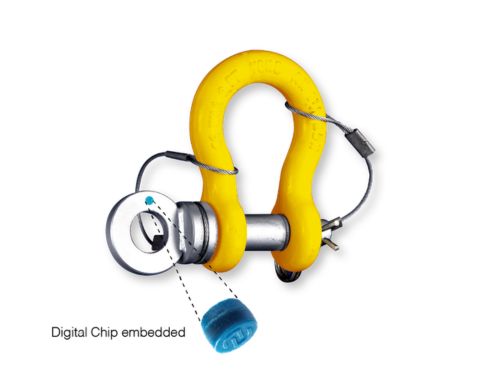

ROV Anchor Shackle 8-911

Item No.8-911

● ROV: Remotely Operated Vehicle.
● Forged alloy steel, quenched and tempered.
● Designed specifically for ROV application.
● Individually stamped with the Working Load Limit.
● Shackle Bows are painted yellow to ensure ease of sight in water.

Compare Datasheet

Metric (mm)
Imperial (inch)

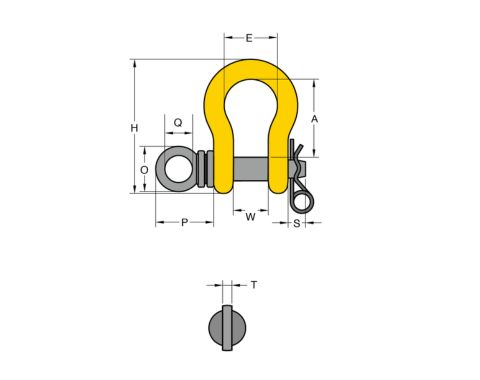

Item NO.	Compare	Working Load Limit	Size	Dimensions
		tonnes	inch	A	E	H	O	P	Q	S	T	W
8-911-22	Compare	6.5	46211	86	58	148	50	63	30	19	10	38
8-911-26	Compare	8.5	1	96	69	166	50	65	30	20	10	44
8-911-28	Compare	9.5	1 1/8	111	74	190	70	88	35	21	12	46
8-911-32	Compare	12	1 1/4	121	84	210	70	88	35	25	12	54
8-911-36	Compare	13.5	1 3/8	134	92	232	75	96	40	27	15	59
8-911-38	Compare	17	1 1/2	146	99	254	75	98	40	27	15	60
8-911-45	Compare	25	1 3/4	178	127	313	90	114	50	30	20	73
8-911-50	Compare	35	2	197	146	347	106	132	60	30	20	83

Item NO.	Compare	Working Load Limit	Size	Dimensions
		tonnes	inch	A	E	H	O	P	Q	S	T	W
8-911-22	Compare	6.5	46211	3.39	2.28	5.91	1.96	2.36	1.18	0.87	0.39	1.5
8-911-26	Compare	8.5	1	3.78	2.68	6.57	1.96	2.48	1.18	0.91	0.39	1.73
8-911-28	Compare	9.5	1 1/8	4.37	2.91	7.52	2.75	3.35	1.38	0.94	0.47	1.81
8-911-32	Compare	12	1 1/4	4.76	3.3	8.07	2.75	3.35	1.38	1.14	0.47	2.12
8-911-36	Compare	13.5	1 3/8	5.28	3.62	9.13	2.95	3.66	1.57	1.22	0.59	2.32
8-911-38	Compare	17	1 1/2	5.75	3.9	10	2.95	3.74	1.57	1.22	0.59	2.36
8-911-45	Compare	25	1 3/4	7	5	12.32	3.54	4.48	1.97	1.38	0.71	2.87
8-911-50	Compare	35	2	7.76	5.75	13.66	4.17	5.19	2.36	1.57	0.78	3.27
