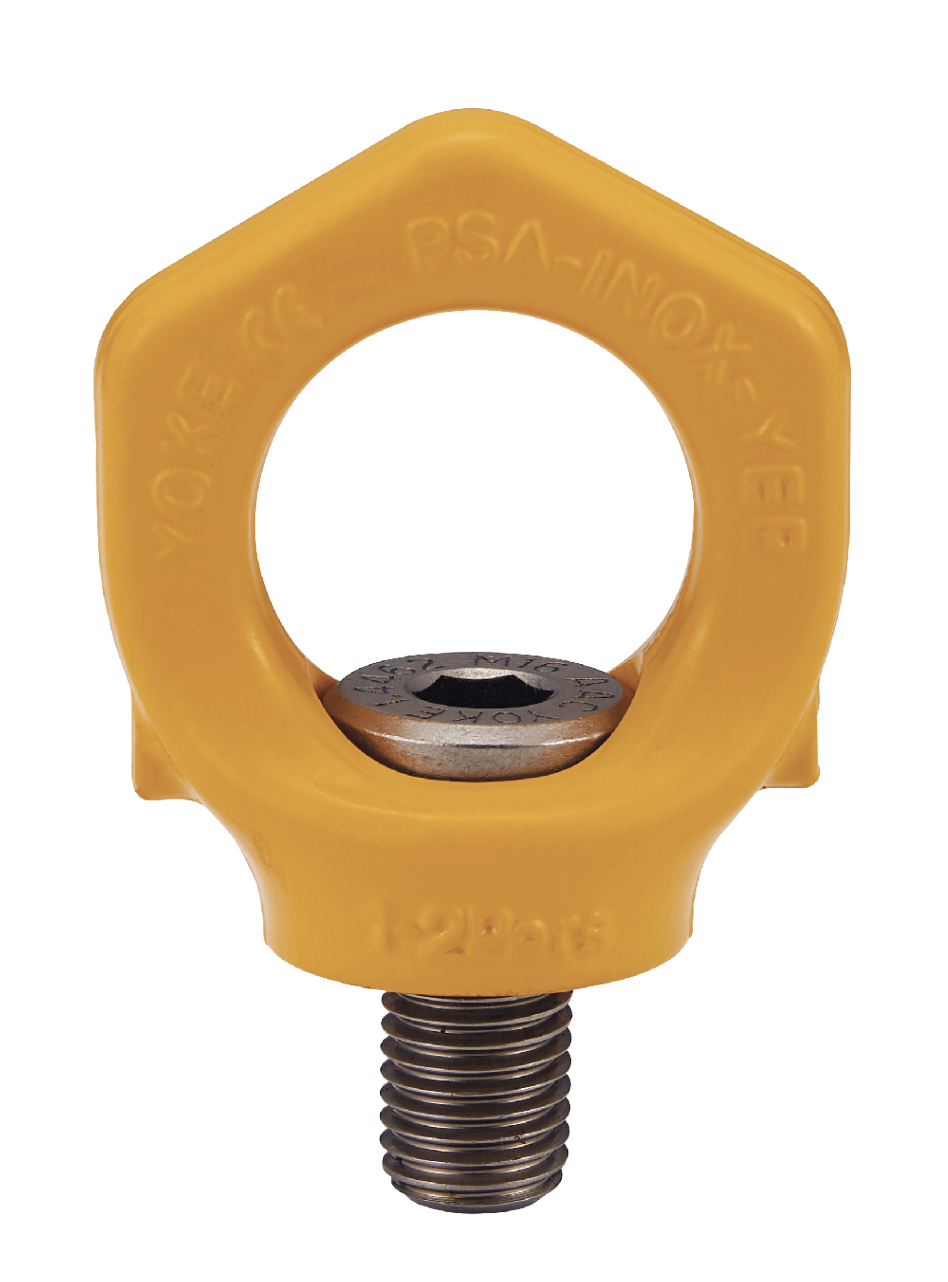

PSA-INOX-YEP
Item No.8-285

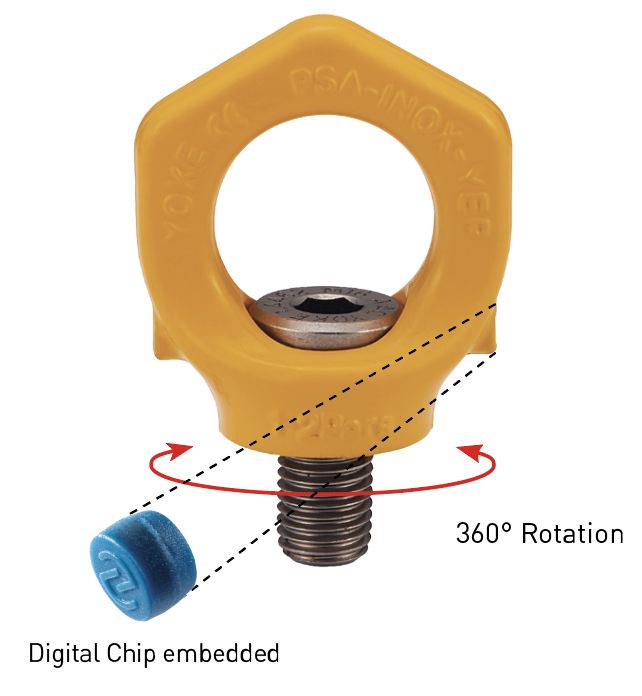

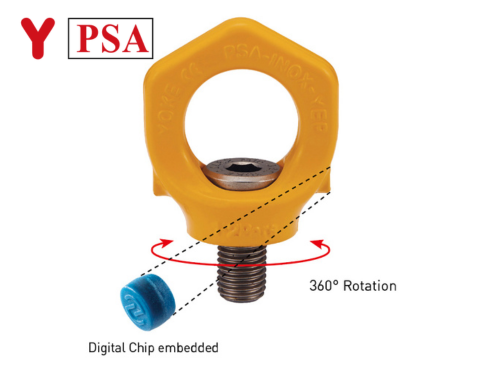

• Rotates through 360° adjustable in the direction of the load.
• Manufactured from forged stainless steel.
• Tested in accordance with EN 795 or TS16415.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts and cap screw are traceable to Test Certification.
• Passed 22.2KN/person load testing.
• Passed 100kg or 150 kg dynamic fall testing (EU standard is 100 kg).
• Meets all requirements of the German BG BAU (Employer’s insurance association of the building industry).
• Meets all requirements of DIN EN 795, DIN EN 50308, OSHA1926.502.
• Acc. to DIN EN 365 including statement for the number of load bearing persons is 1-2 persons.
• YOKE yellow powder coating for high visibility.
• Suitable for permanently outdoor application.

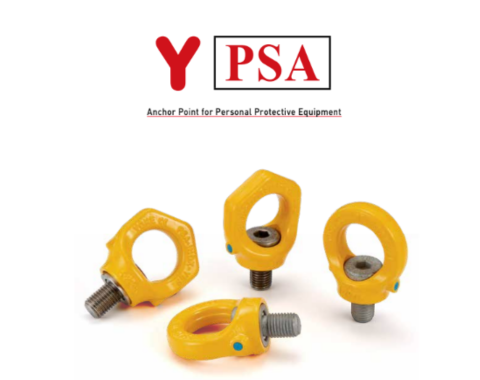

• PSA-INOX Lifting point to be as an anchor point for personal protective equipment.
• Manufactured from forged stainless steel.
• Tested in accordance with EN 795 or TS16415.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts and cap screw are traceable to Test Certification.
• Passed 22.2KN/person load testing.
• Passed 100kg or 150 kg dynamic fall testing (EU standard is 100 kg).
• Meets all requirements of the German BG BAU (Employer’s insurance association of the building industry).
• Meets all requirements of DIN EN 795, DIN EN 50308, OSHA1926.502.
• Acc. to DIN EN 365 including statement for the number of load bearing persons is 1-2 persons.
• YOKE yellow powder coating for high visibility.
• Suitable for permanently outdoor application.
• PSA-INOX Lifting point to be as an anchor point for personal protective equipment.

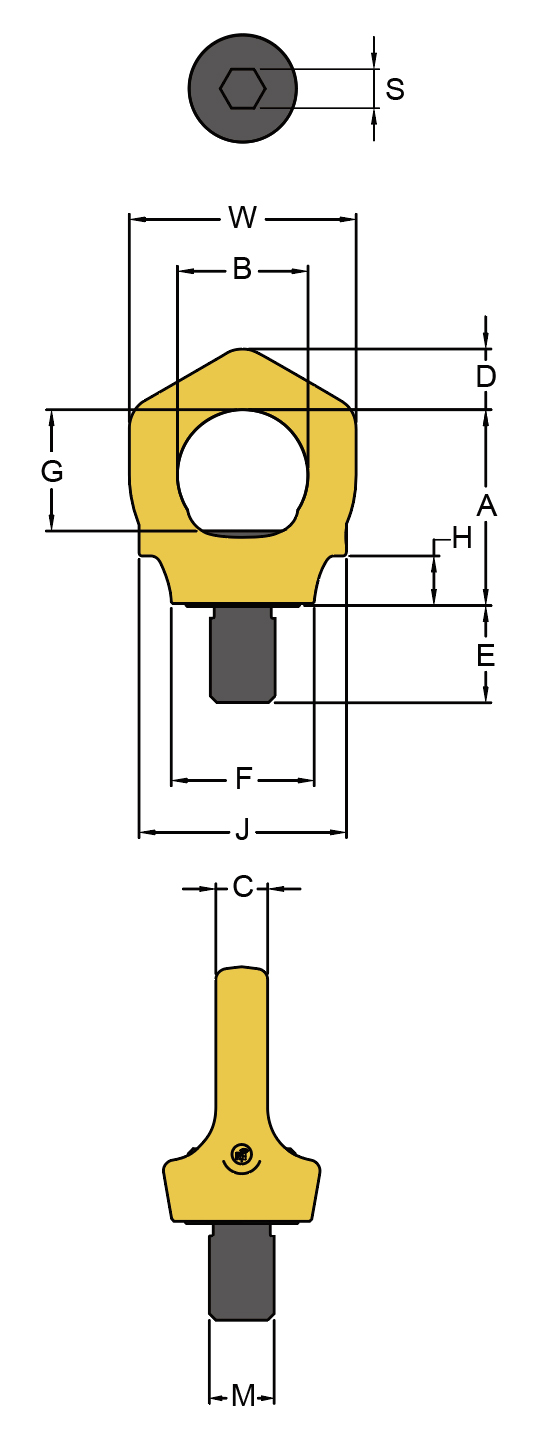

| Item NO. | Compare | Working Load Limit | Thread version | Dimensions | Torque in | N.W. | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | M | A | B | C | D | E | F | G | H | J | S | W | Nm | kg | ||
| 8-285-007 | Compare | 1 Pers | M12x1.75 | 45 | 30 | 10 | 14 | 18 | 33 | 29 | 9 | 48 | 8 | 52 | 10 | 0.2 |
| 8-285-015 | Compare | 1-2 Pers | M16x2.0 | 52 | 35 | 14 | 16 | 24 | 44 | 33 | 12 | 58 | 10 | 61 | 30 | 0.4 |
| 8-285-023 | Compare | 1-2 Pers | M20x2.5 | 60 | 40 | 16 | 19 | 30 | 44 | 37 | 15 | 64 | 12 | 70 | 70 | 0.6 |
| Item NO. | Compare | Working Load Limit | Thread version | Dimensions | Torque in | N.W. | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | M | A | B | C | D | E | F | G | H | J | S | W | ft.lbs | lbs | ||
| 8-285-023 | Compare | 1-2 Pers | M20x2.5 | 2.4 | 1.6 | 0.6 | 0.7 | 1.2 | 1.7 | 1.5 | 0.6 | 2.5 | 0.5 | 2.8 | 50 | 1.3 |
| 8-285-007 | Compare | 1 Pers | M12x1.75 | 1.8 | 1.2 | 0.4 | 0.6 | 0.7 | 1.3 | 1.1 | 0.4 | 1.9 | 0.3 | 2.0 | 7 | 0.4 |
| 8-285-015 | Compare | 1-2 Pers | M16x2.0 | 2.0 | 1.4 | 0.6 | 0.6 | 0.9 | 1.7 | 1.3 | 0.5 | 2.3 | 0.4 | 2.4 | 20 | 0.9 |
