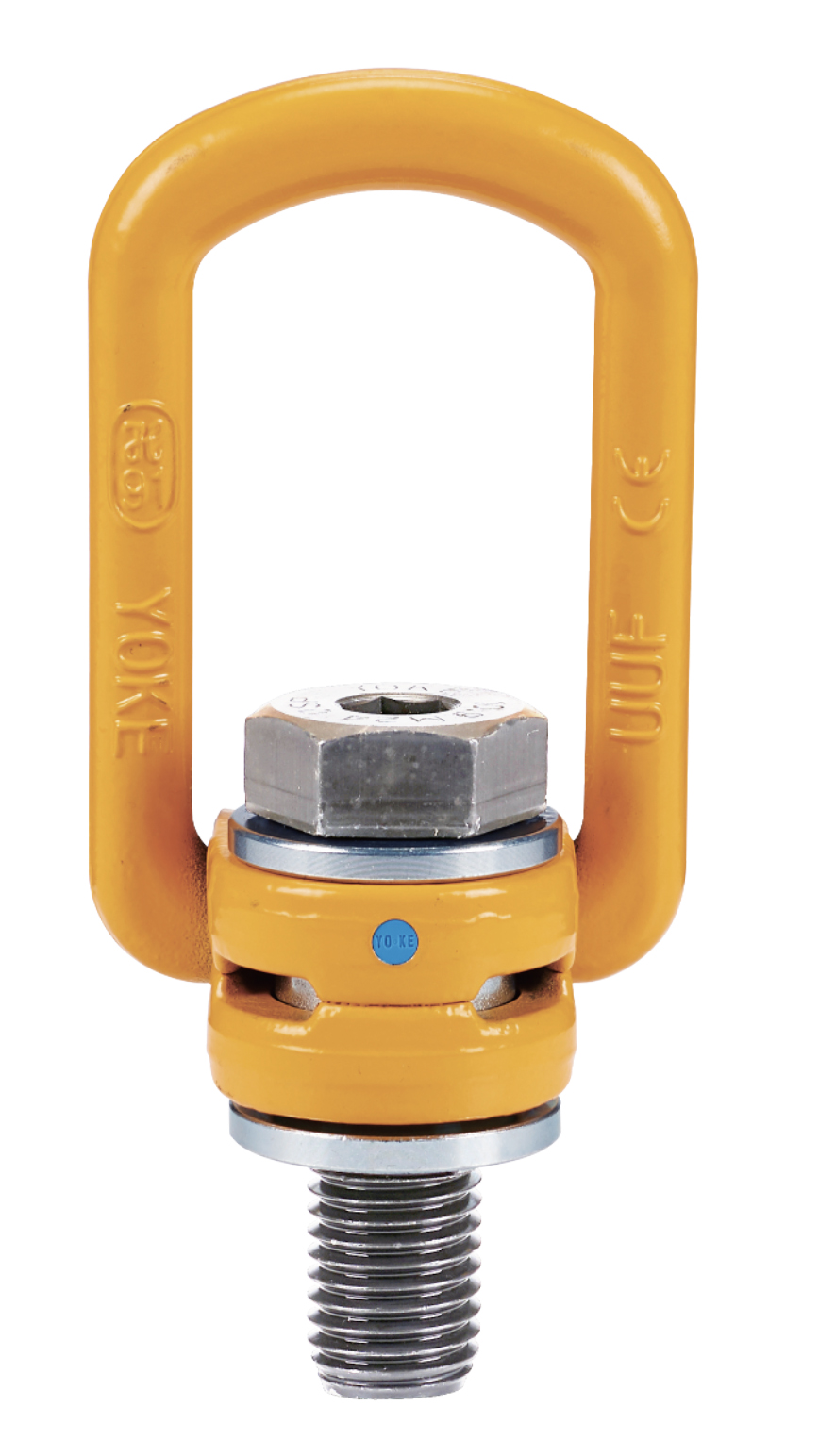

Lifting Point
Item No.8-211 and 8-212

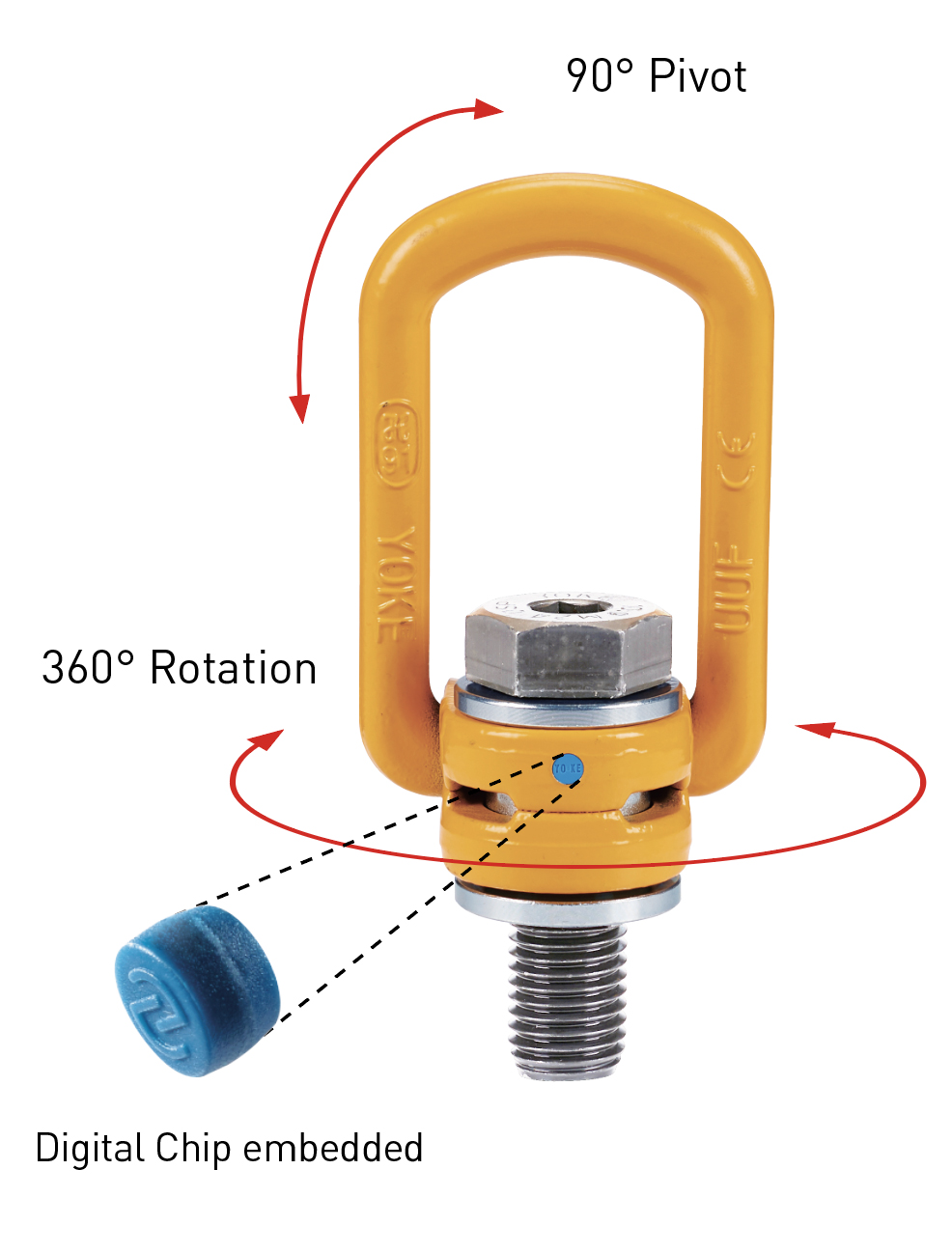

• Rotates through 360° and pivots 90°.
• Manufactured from alloy steel, quenched and tempered.
• Tested in accordance with EN 1677-1.
• Certified by DGUV GS-HM-36.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts and cap screw are traceable to Test Certification.
• Bolts are Metric thread.
• Proof tested to 2.5 times the WLL.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
• Quick and simple assembly, just a tapped hole is required.
• Manufactured from alloy steel, quenched and tempered.
• Tested in accordance with EN 1677-1.
• Certified by DGUV GS-HM-36.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts and cap screw are traceable to Test Certification.
• Bolts are Metric thread.
• Proof tested to 2.5 times the WLL.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
• Quick and simple assembly, just a tapped hole is required.

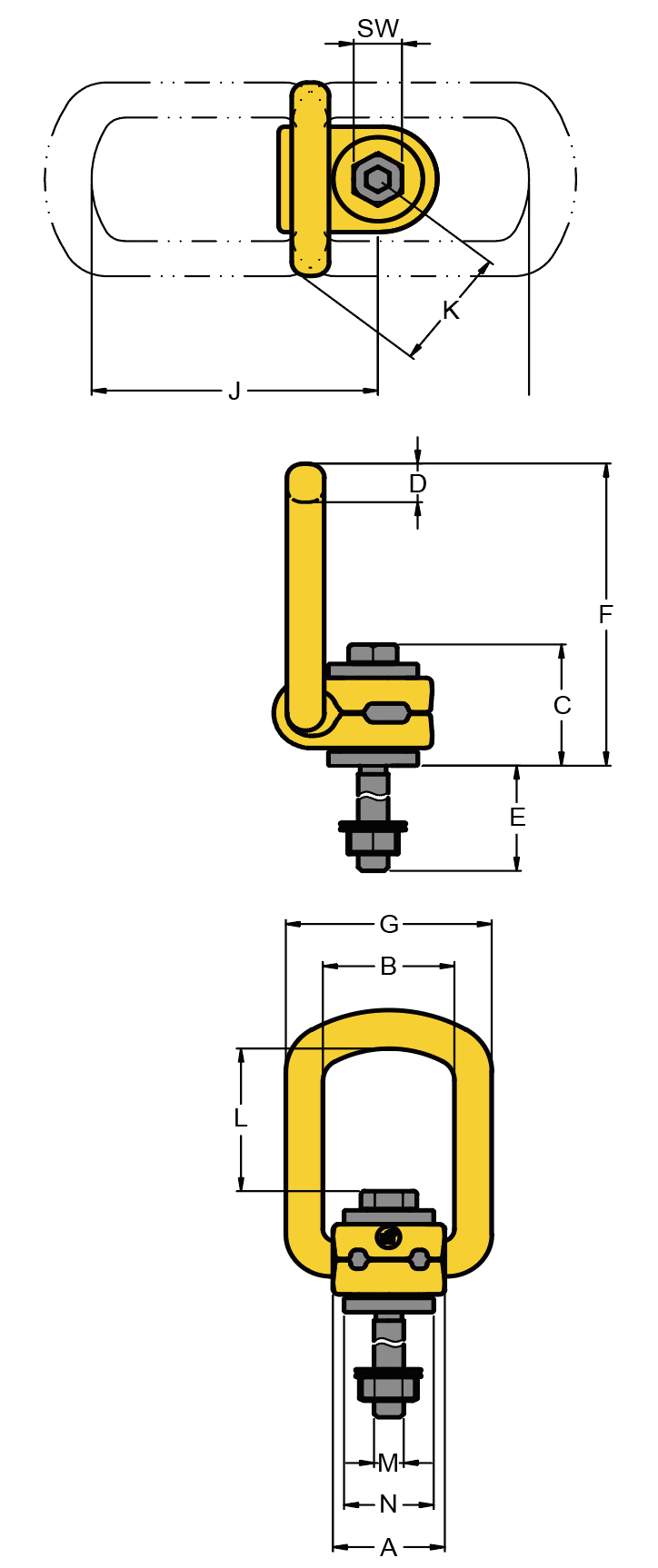

| Item NO. | file download | Compare | Working Load Limit | Thread version | Dimensions | Torque in | N.W. | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | M | E | Pitch DIN13 | A | B | C | D | F | G | H | I | J | K | L | N | S | SW | Nm | kg | |||
| 8-211-003 | Download | Compare | 0.3 | M 8 | 12 | 1.25 | 30 | 35 | 35 | 11 | 86 | 55 | 29 | 41 | 77 | 34 | 41 | 24 | 6 | 13 | 30 | 0.3 |
| 8-211-006 | Download | Compare | 0.6 | M 10 | 15 | 1.50 | 30 | 35 | 36 | 11 | 86 | 55 | 29 | 41 | 77 | 34 | 40 | 24 | 6 | 17 | 60 | 0.4 |
| 8-211-010 | Download | Compare | 1.0 | M 12 | 18 | 1.75 | 33 | 38 | 44 | 14 | 99 | 57 | 36 | 45 | 89 | 38 | 42 | 31 | 1/7 | 1/18 | 100 | 0.5 |
| 8-211-012 | Download | Compare | 1.2 | M 14 | 21 | 2.00 | 33 | 38 | 45 | 14 | 99 | 57 | 36 | 45 | 89 | 38 | 40 | 31 | 1/9 | 22 | 120 | 0.5 |
| 8-211-015 | Download | Compare | 1.5 | M 16 | 24 | 2.00 | 33 | 38 | 46 | 14 | 99 | 57 | 36 | 45 | 89 | 38 | 40 | 31 | 1/9 | 24 | 150 | 0.6 |
| 8-211-020 | Download | Compare | 2.0 | M 18 | 27 | 2.50 | 50 | 54 | 57 | 16 | 143 | 82 | 44 | 74 | 132 | 53 | 70 | 45 | 1/11 | 30 | 200 | 1.3 |
| 8-211-025 | Download | Compare | 2.5 | M 20 | 30 | 2.50 | 50 | 54 | 56 | 16 | 143 | 82 | 44 | 74 | 132 | 53 | 70 | 49 | 1/11 | 30 | 250 | 1.6 |
| 8-211-040 | Download | Compare | 4.0 | M 24 | 36 | 3.00 | 50 | 54 | 59 | 16 | 143 | 82 | 44 | 74 | 132 | 53 | 67 | 45 | 1/13 | 36 | 400 | 1.9 |
| 8-211-042 | Download | Compare | 4.0 | M 27 | 38 | 3.00 | 60 | 65 | 79 | 23 | 171 | 99 | 62 | 80 | 153 | 64 | 69 | 59 | 17 | 41 | 400 | 2.9 |
| 8-211-050 | Download | Compare | 5.0 | M 30 | 49 | 3.50 | 60 | 65 | 81 | 23 | 171 | 99 | 62 | 80 | 153 | 64 | 67 | 59 | 17 | 46 | 500 | 3.1 |
| 8-211-070 | Download | Compare | 7.0 | M 36 | 56 | 4.00 | 60 | 65 | 75 | 23 | 171 | 99 | 58 | 80 | 153 | 64 | 74 | 59 | 22 | 55 | 700 | 3.1 |
| 8-211-080 | Download | Compare | 8.0 | M 36 | 62 | 4.00 | 77 | 85 | 101 | 27 | 225 | 124 | 78 | 112 | 205 | 80 | 97 | 69 | 22 | 55 | 800 | 5.9 |
| 8-211-100 | Download | Compare | 10.0 | M 42 | 72 | 4.50 | 77 | 85 | 104 | 27 | 225 | 124 | 78 | 112 | 205 | 80 | 94 | 69 | 24 | 65 | 1000 | 6.3 |
| 8-211-150 | Download | Compare | 15.0 | M 42 | 63 | 4.50 | 95 | 104 | 112 | 36 | 258 | 158 | 86 | 126 | 230 | 99 | 110 | 98 | 24 | 65 | 1500 | 10.9 |
| 8-211-200 | Download | Compare | 20.0 | M 48 | 72 | 5.00 | 95 | 104 | 120 | 36 | 260 | 158 | 90 | 126 | 230 | 99 | 104 | 98 | 27 | 75 | 2000 | 12.1 |
| Item NO. | file download | Compare | Working Load Limit | Thread version | Dimensions | Torque in | N.W. | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lbs | M | E | TPI | A | B | C | D | F | G | H | I | J | K | L | N | S | SW | ft.lbs | lbs | |||
| 8-212-010 | Download | Compare | 2200 | 1/2 | 0.94 | 13UNC | 1.3 | 1.48 | 1.73 | 0.53 | 3.90 | 2.24 | 1.42 | 1.76 | 3.49 | 1.49 | 1.62 | 1.22 | 5/16 | 3/4 | 73 | 1.0 |
| 8-212-015 | Download | Compare | 3300 | 5/8 | 1.14 | 11UNC | 1.3 | 1.48 | 1.81 | 0.53 | 3.90 | 2.24 | 1.42 | 1.76 | 3.49 | 1.49 | 1.56 | 1.22 | 3/8 | 15/16 | 110 | 1.3 |
| 8-212-020 | Download | Compare | 5500 | 3/4 | 1.46 | 10UNC | 1.97 | 2.13 | 2.16 | 0.65 | 5.62 | 3.22 | 1.73 | 2.90 | 5.23 | 2.09 | 2.77 | 1.93 | 1/2 | 1 1/8 | 185 | 2.9 |
| 8-212-025 | Download | Compare | 5500 | 7/8 | 1.46 | 9UNC | 1.97 | 2.13 | 2.24 | 0.65 | 5.62 | 3.22 | 1.73 | 2.90 | 5.23 | 2.09 | 2.69 | 1.93 | 5/8 | 1 5/16 | 221 | 2.8 |
| 8-212-040 | Download | Compare | 8800 | 1 | 1.61 | 8UNC | 1.97 | 2.13 | 2.34 | 0.65 | 5.62 | 3.22 | 1.73 | 2.90 | 5.23 | 2.09 | 2.63 | 1.77 | 5/8 | 1 1/2 | 295 | 4.3 |
| 8-212-050 | Download | Compare | 11000 | 1 1/4 | 2.11 | 7UNC | 2.36 | 2.56 | 3.21 | 0.89 | 6.70 | 3.90 | 2.42 | 3.14 | 6.00 | 2.53 | 2.60 | 2.32 | 7/8 | 1 7/8 | 368 | 6.8 |
| 8-212-080 | Download | Compare | 17000 | 1 1/2 | 2.44 | 6UNC | 3.03 | 3.35 | 4.01 | 1.04 | 8.85 | 4.88 | 3.07 | 4.42 | 8.04 | 3.15 | 3.80 | 2.72 | 1 | 2 1/4 | 585 | 12.9 |
| 8-212-150 | Download | Compare | 33000 | 1 3/4 | 2.60 | 5UNC | 3.74 | 4.09 | 4.41 | 1.42 | 10.16 | 6.22 | 3.39 | 4.94 | 9.07 | 3.88 | 4.33 | 3.86 | 1 | 2 5/8 | 1107 | 24.5 |
| 8-212-200 | Download | Compare | 44000 | 2 | 2.80 | 4.5UNC | 3.74 | 4.09 | 4.72 | 1.42 | 10.24 | 6.22 | 3.54 | 4.94 | 9.07 | 3.88 | 4.09 | 3.86 | 1 1/4 | 3 | 1476 | 27.2 |
