Lashing-Weld-on-Point
Item No.8-0576

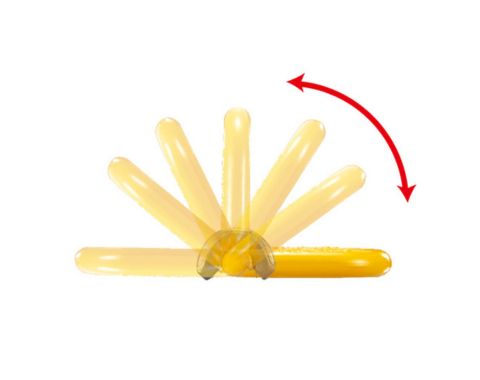

• Lashing ring pivots 180°

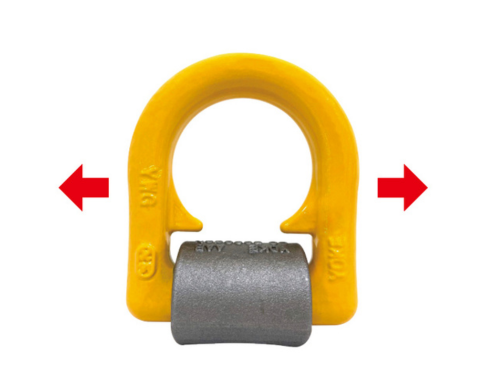

• Full Lashing Capacity in all directions.
• Manufactured from forged alloy steel, quenched and tempered.
• Tested in accordance with EN 1677-1.
• 100% magnaflux crack detected.
• Parts individually forged with batch code to ensure full traceability.
• The permitted lashing capacity "LC" in daN forged onto each product for quick and easy identification.

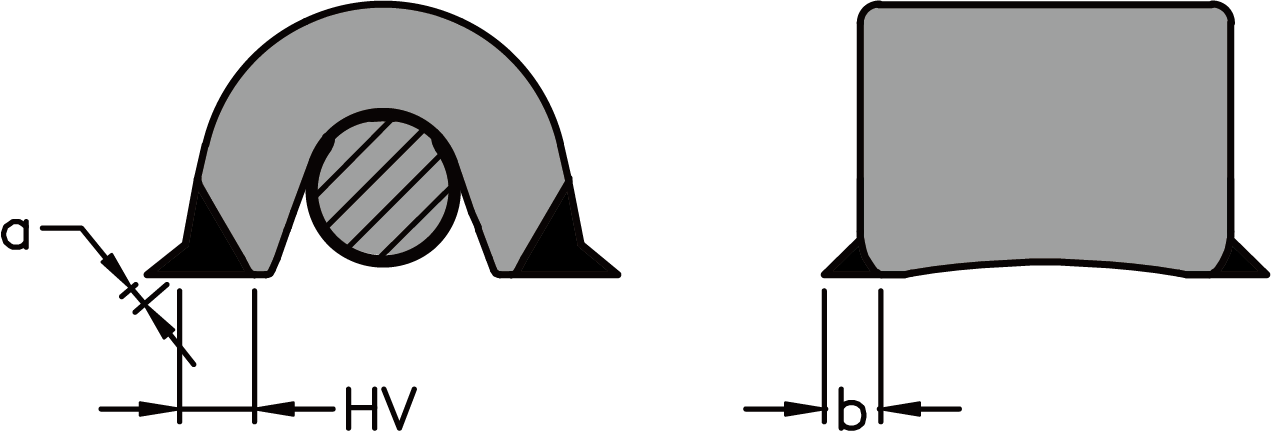

• Lugs designed to assist the welding process.
• A protected spring keeps the lashing ring in the required position. The parts are connected in such a way that they remain captive. The spring also reduces noise caused by vibrations.
• Full Lashing Capacity in all directions.
• Manufactured from forged alloy steel, quenched and tempered.
• Tested in accordance with EN 1677-1.
• 100% magnaflux crack detected.
• Parts individually forged with batch code to ensure full traceability.
• The permitted lashing capacity "LC" in daN forged onto each product for quick and easy identification.
• Lugs designed to assist the welding process.
• A protected spring keeps the lashing ring in the required position. The parts are connected in such a way that they remain captive. The spring also reduces noise caused by vibrations.

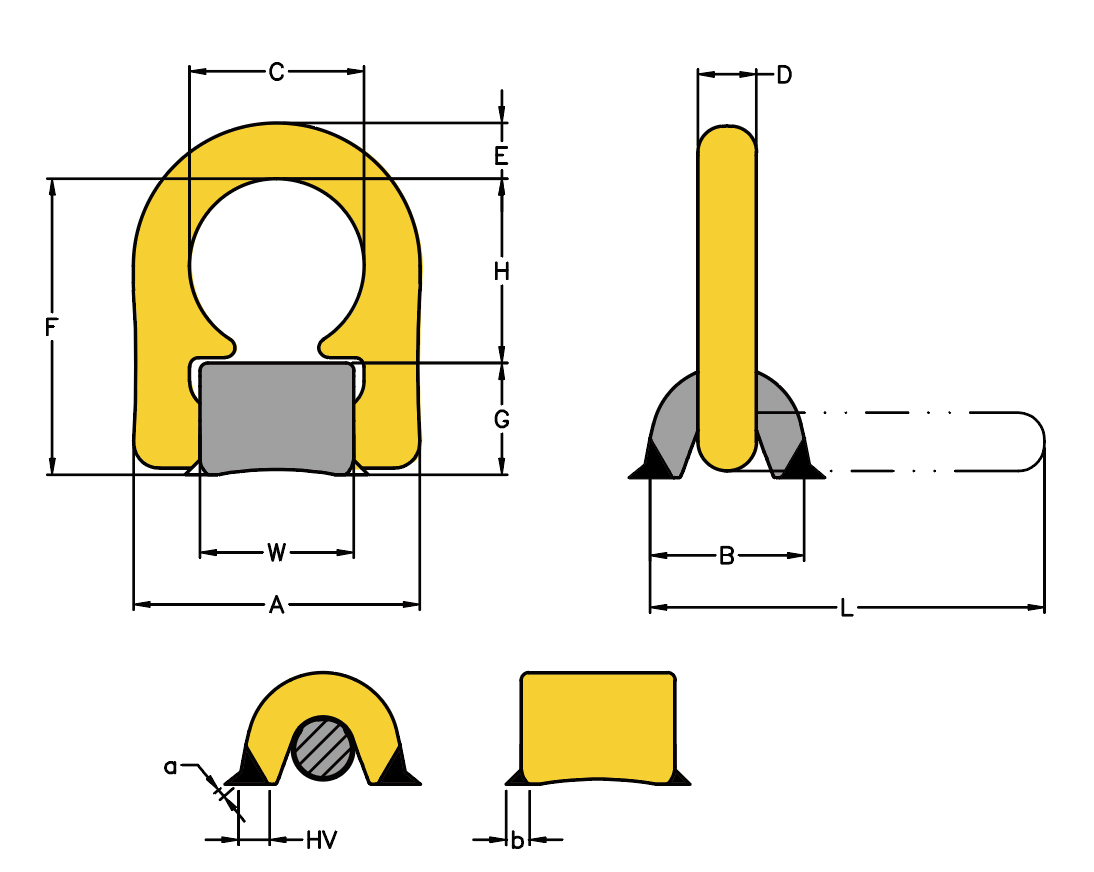

| Item NO. | file download | Compare | Lashing Capacity | Dimensions | N.W. | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| daN | A | a | B | b | C | D | E | F | G | H | HV | L | W | kg | |||
| 8-0576-030 | Download | Compare | 3000 | 64 | 3 | 31 | 3 | 38 | 13 | 13 | 63 | 24 | 39 | 5 | 84 | 32 | 0.3 |
| 8-0576-050 | Download | Compare | 5000 | 74 | 3 | 39 | 3 | 45 | 16 | 15 | 75 | 28 | 47 | 8 | 98 | 39 | 0.5 |
| 8-0576-080 | Download | Compare | 8000 | 84 | 3 | 40 | 3 | 51 | 16 | 17 | 81 | 29 | 52 | 9 | 108 | 45 | 0.7 |
| 8-0576-134 | Download | Compare | 13400 | 110 | 4 | 60 | 4 | 67 | 23 | 22 | 115 | 43 | 72 | 12 | 152 | 59 | 1.7 |
| 8-0576-200 | Download | Compare | 20000 | 122 | 5 | 70 | 7 | 67 | 27 | 22 | 122 | 51 | 71 | 17 | 164 | 59 | 2.5 |
| 8-0576-320 | Download | Compare | 32000 | 180 | 6 | 92 | 8 | 100 | 26 | 32 | 172 | 66 | 106 | 25 | 228 | 89 | 6.3 |
| Item NO. | file download | Compare | Lashing Capacity | Dimensions | N.W. | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| daN | A | a | B | b | C | D | E | F | G | H | HV | L | W | lbs | |||
| 8-0576-030 | Download | Compare | 3000 | 2.52 | 0.12 | 1.22 | 0.12 | 1.50 | 0.51 | 0.51 | 2.48 | 0.95 | 1.54 | 0.20 | 3.31 | 1.26 | 0.70 |
| 8-0576-050 | Download | Compare | 5000 | 2.91 | 0.12 | 1.54 | 0.12 | 1.77 | 0.63 | 0.59 | 2.95 | 1.10 | 1.85 | 0.32 | 3.86 | 1.54 | 1.08 |
| 8-0576-080 | Download | Compare | 8000 | 3.31 | 0.12 | 1.58 | 0.12 | 2.01 | 0.63 | 0.67 | 3.19 | 1.14 | 2.05 | 0.35 | 4.25 | 1.77 | 1.47 |
| 8-0576-134 | Download | Compare | 13400 | 4.33 | 0.16 | 2.36 | 0.16 | 2.64 | 0.91 | 0.87 | 4.53 | 1.69 | 2.84 | 0.47 | 5.99 | 2.32 | 3.76 |
| 8-0576-200 | Download | Compare | 20000 | 4.80 | 0.20 | 2.76 | 0.28 | 2.64 | 1.06 | 0.87 | 4.82 | 2.01 | 2.79 | 0.67 | 6.46 | 2.32 | 5.39 |
| 8-0576-320 | Download | Compare | 32000 | 7.09 | 0.24 | 3.62 | 0.32 | 3.94 | 1.02 | 1.26 | 6.77 | 2.60 | 4.17 | 0.98 | 8.98 | 3.50 | 13.93 |
