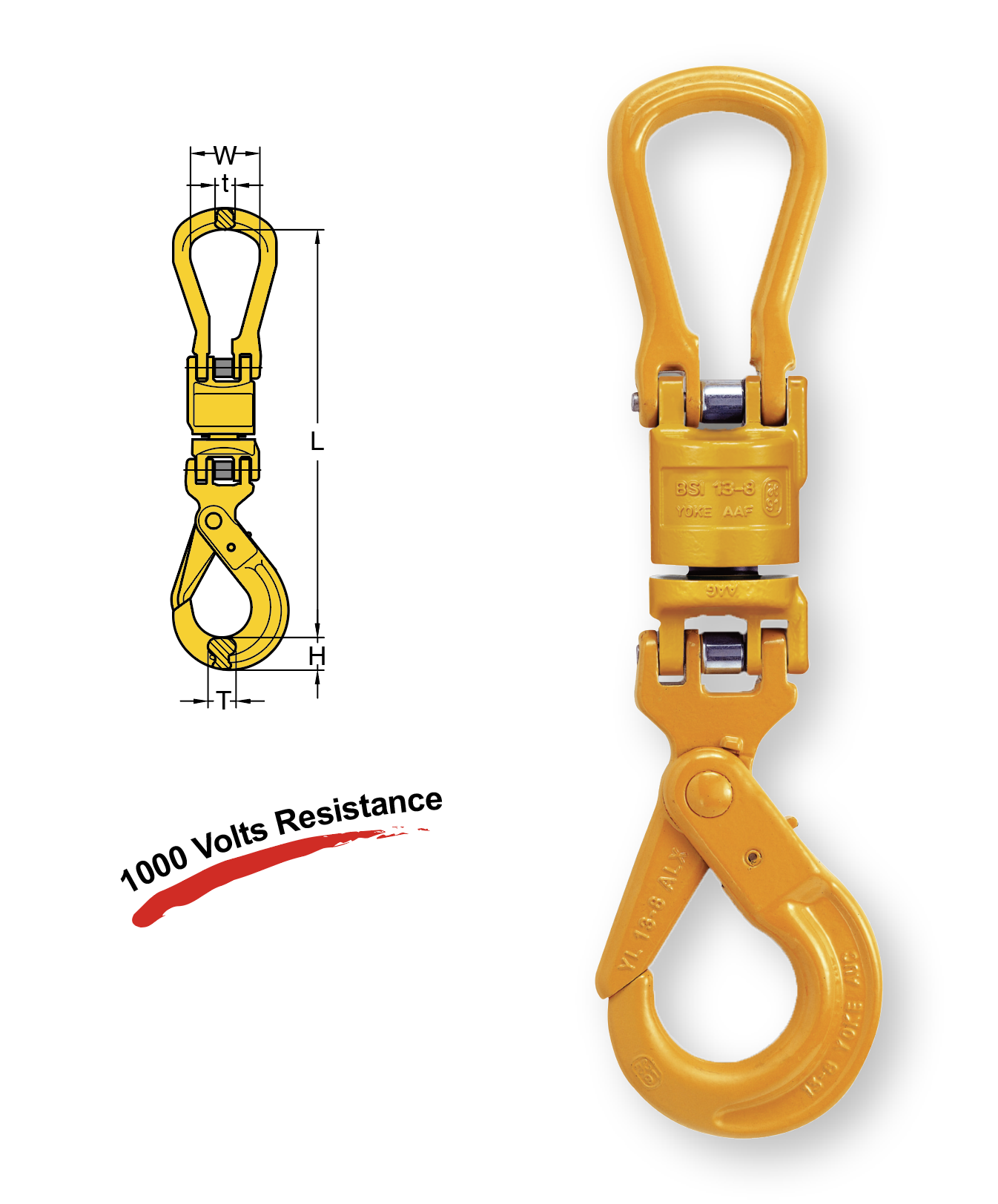

Insulated Sling Swivel Hook

Item No.8-124
• Individually tested to resist 1000 Volts insulated with Test Certificate.
• Design for protection Winch of overhead crane during welding operations on suspended loads.
Compare Datasheet

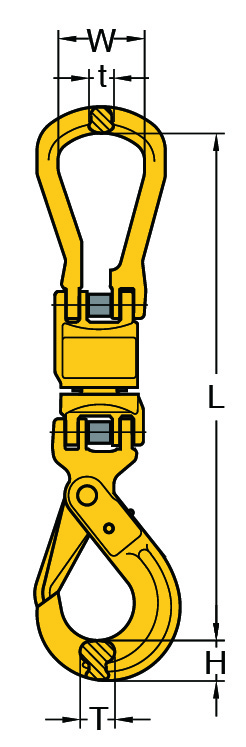

Item NO. Compare For Grade 80 ChainDimensionsWorking Load LimitDimensionsN.W.
mmttonnesHLTWkg
8-124-07 Compare 7, 8 15 2.00 24 310 20 50 1.8
8-124-10 Compare 10 19 3.15 30 374 26 65 3.3
8-124-13 Compare 13 23 5.30 39 471 30 72 6.7
8-124-16 Compare 16 25 8.00 49 560 36 80 12.0
8-124-20 Compare 18, 20 31 12.50 62 624 48 104 18.0
Item NO. Compare For Grade 80 ChainDimensionsWorking Load LimitDimensionsN.W.
inchtlbsHLTWlbs
8-124-20 Compare 3/4 1.22 28,300 2.44 24.57 1.91 4.09 41.7
8-124-07 Compare 1/4-5/16 0.59 4,500 0.94 12.20 0.79 1.97 4.6
8-124-10 Compare 3/8 0.75 7,100 1.19 14.72 1.02 2.56 7.3
8-124-13 Compare 1/2 0.91 12,000 1.57 18.54 1.19 2.83 14.6
8-124-16 Compare 5/8 0.98 18,100 1.93 22.05 1.42 3.15 25.6
