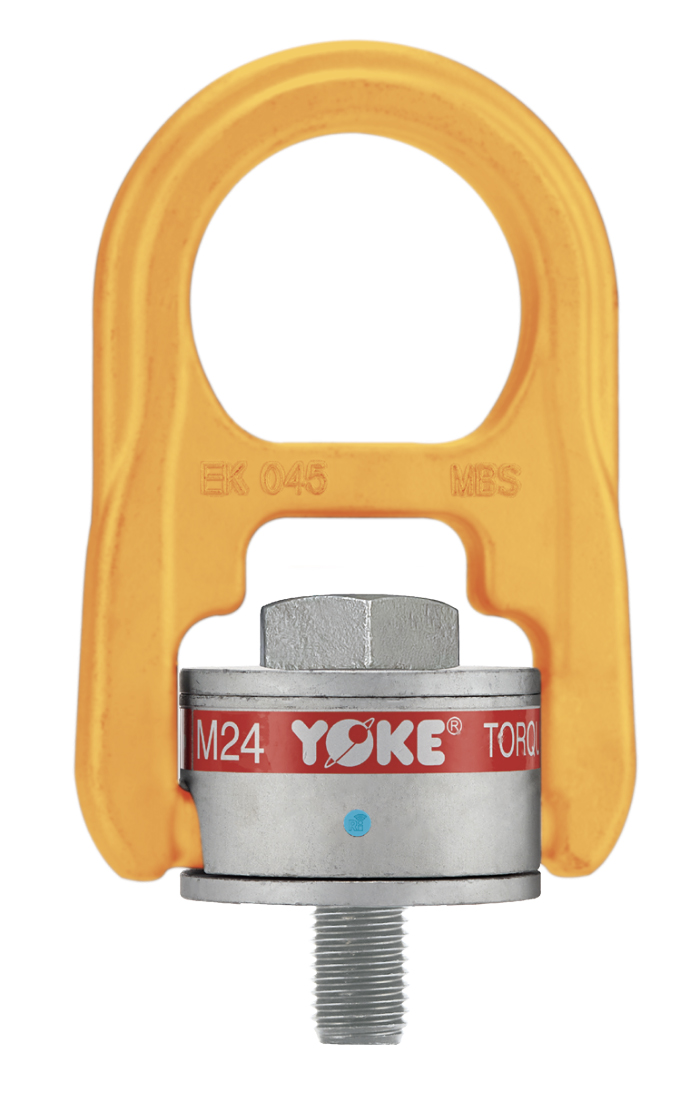

• Rotates through 360° and pivots 180°, and simultaneously allows lifting from any direction.
• Manufactured from forged alloy steel, quenched and tempered.
• Tested in accordance with EN 1677-1.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts and cap screw are traceable to Test Certification.
• Bolts are Metric thread.
• Proof tested to 2.5 times the WLL.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
• Quick and simple assembly, just a tapped hole is required.
» United States Patent: 10607128
» UK Patent: 3627396
» German Patent: 602018032891.2
» Italy Patent: 3627396
» Japan Patent: 3219858
» China Patent: ZL 2012 1 0131962.1
» Taiwan Patent: I468602

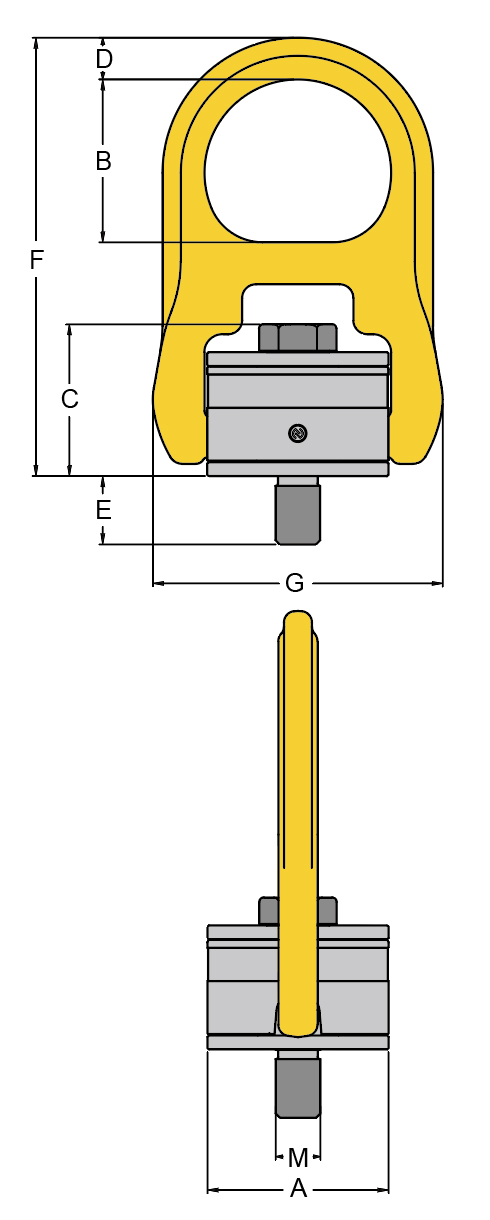

| Item NO. | file download | Compare | Working Load Limit | Thread version | Dimensions | Torque in | N.W. | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes 5:1 | tonnes 4:1 | M | E | Pitch DIN13 | A | B | C | D | F | G | Nm | kg | |||
| 8-203-135 | Download | Compare | 13.50 | 16.90 | M48 | 70 | 5.00 | 120 | 106 | 115 | 36 | 306 | 220 | 1350 | 16.0 |
| 8-203-125 | Download | Compare | 12.50 | 15.60 | M42 | 65 | 4.50 | 120 | 106 | 111 | 36 | 306 | 220 | 1005 | 16.0 |
| 8-203-110 | Download | Compare | 11.00 | 13.75 | M36 | 76 | 4.00 | 120 | 106 | 108 | 36 | 306 | 220 | 1005 | 15.0 |
| 8-203-070 | Download | Compare | 7.00 | 8.75 | M30 | 81 | 3.50 | 100 | 80 | 77 | 25 | 216 | 160 | 637 | 6.6 |
| 8-203-042L | - | Compare | 4.20 | 5.25 | M24 | 56 | 3.00 | 85 | 74 | 78 | 22 | 203 | 134 | 312 | 4.3 |
| 8-203-030L | - | Compare | 3.00 | 3.75 | M20 | 45 | 2.50 | 85 | 74 | 74 | 22 | 203 | 134 | 136 | 5.2 |
| 8-203-030 | Download | Compare | 3.00 | 3.75 | M20 | 25 | 2.50 | 85 | 74 | 74 | 22 | 203 | 134 | 136 | 4.0 |
| 8-203-021L | - | Compare | 2.15 | 2.70 | M20 | 45 | 2.50 | 65 | 59 | 65 | 15 | 157 | 104 | 136 | 1.9 |
| 8-203-021 | Download | Compare | 2.15 | 2.70 | M20 | 25 | 2.50 | 65 | 59 | 65 | 15 | 157 | 104 | 136 | 1.8 |
| 8-203-019L | - | Compare | 1.90 | 2.40 | M16 | 35 | 2.00 | 65 | 59 | 61 | 15 | 157 | 104 | 81 | 1.8 |
| 8-203-019 | Download | Compare | 1.90 | 2.40 | M16 | 20 | 2.00 | 65 | 59 | 61 | 15 | 157 | 104 | 81 | 1.8 |
| 8-203-010L | Download | Compare | 1.05 | 1.30 | M12 | 30 | 1.75 | 65 | 59 | 57 | 15 | 157 | 104 | 38 | 1.7 |
| 8-203-010 | Download | Compare | 1.05 | 1.30 | M12 | 15 | 1.75 | 65 | 59 | 57 | 15 | 157 | 104 | 38 | 1.7 |
| 8-203-005L | - | Compare | 0.45 | 0.55 | M10 | 26 | 1.50 | 40 | 41 | 43 | 10 | 101 | 65 | 16 | 0.5 |
| 8-203-005 | Download | Compare | 0.45 | 0.55 | M10 | 11 | 1.50 | 40 | 41 | 43 | 10 | 101 | 65 | 16 | 0.5 |
| 8-203-0701 | Download | Compare | 7.00 | 8.75 | M30 | 45 | 3.50 | 100 | 80 | 77 | 25 | 216 | 160 | 637 | 6.6 |
| 8-203-0301 | Download | Compare | 3.00 | 3.75 | M20 | 30 | 2.50 | 85 | 74 | 67 | 22 | 203 | 134 | 136 | 4.0 |
| 8-203-0211 | Download | Compare | 2.15 | 2.70 | M20 | 30 | 2.50 | 65 | 59 | 57 | 15 | 157 | 104 | 136 | 1.8 |
| 8-203-0191 | Download | Compare | 1.90 | 2.40 | M16 | 24 | 2.00 | 65 | 59 | 55 | 15 | 157 | 104 | 81 | 1.8 |
| 8-203-0101 | Download | Compare | 1.05 | 1.30 | M12 | 18 | 1.75 | 65 | 59 | 52 | 15 | 157 | 104 | 38 | 1.7 |
| 8-203-0051 | Download | Compare | 0.45 | 0.55 | M10 | 15 | 1.50 | 40 | 41 | 39 | 10 | 101 | 65 | 16 | 0.5 |
| 8-203-042 | Download | Compare | 4.20 | 5.25 | M24 | 26 | 3.00 | 85 | 74 | 78 | 22 | 203 | 134 | 312 | 4.2 |
| 8-203-004 | Download | Compare | 0.40 | 0.50 | M8 | 17 | 1.25 | 40 | 41 | 41 | 10 | 101 | 65 | 10 | 0.4 |
| 8-203-1351 | Download | Compare | 13.50 | 16.90 | M48 | 72 | 5.00 | 120 | 106 | 115 | 36 | 306 | 220 | 1350 | 16.0 |
| 8-203-1251 | Download | Compare | 12.50 | 15.60 | M42 | 63 | 4.50 | 120 | 106 | 111 | 36 | 306 | 220 | 1005 | 16.0 |
| 8-203-1001 | Download | Compare | 10.00 | 12.50 | M36 | 54 | 4.00 | 120 | 106 | 108 | 36 | 306 | 220 | 1005 | 15.0 |
| 8-203-0421 | Download | Compare | 4.20 | 5.25 | M24 | 36 | 3.00 | 85 | 74 | 69 | 22 | 203 | 134 | 312 | 4.2 |
| 8-203-0041 | Download | Compare | 0.40 | 0.50 | M8 | 12 | 1.25 | 40 | 41 | 38 | 10 | 101 | 65 | 10 | 0.4 |

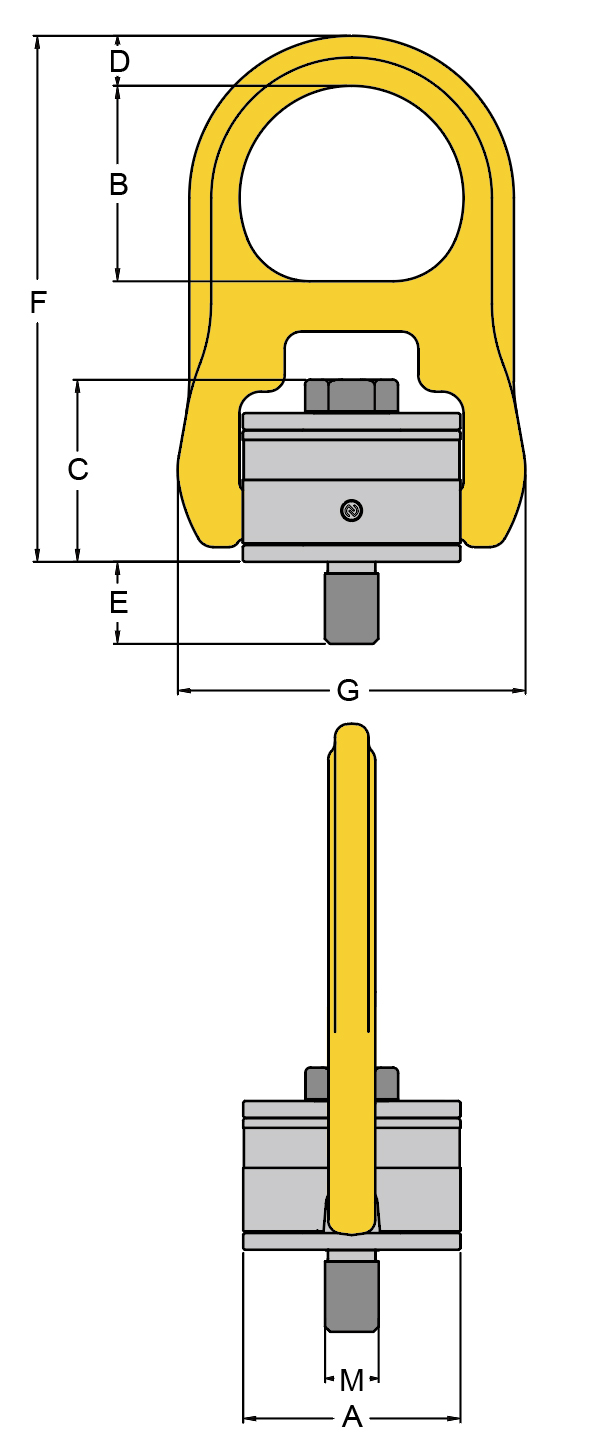

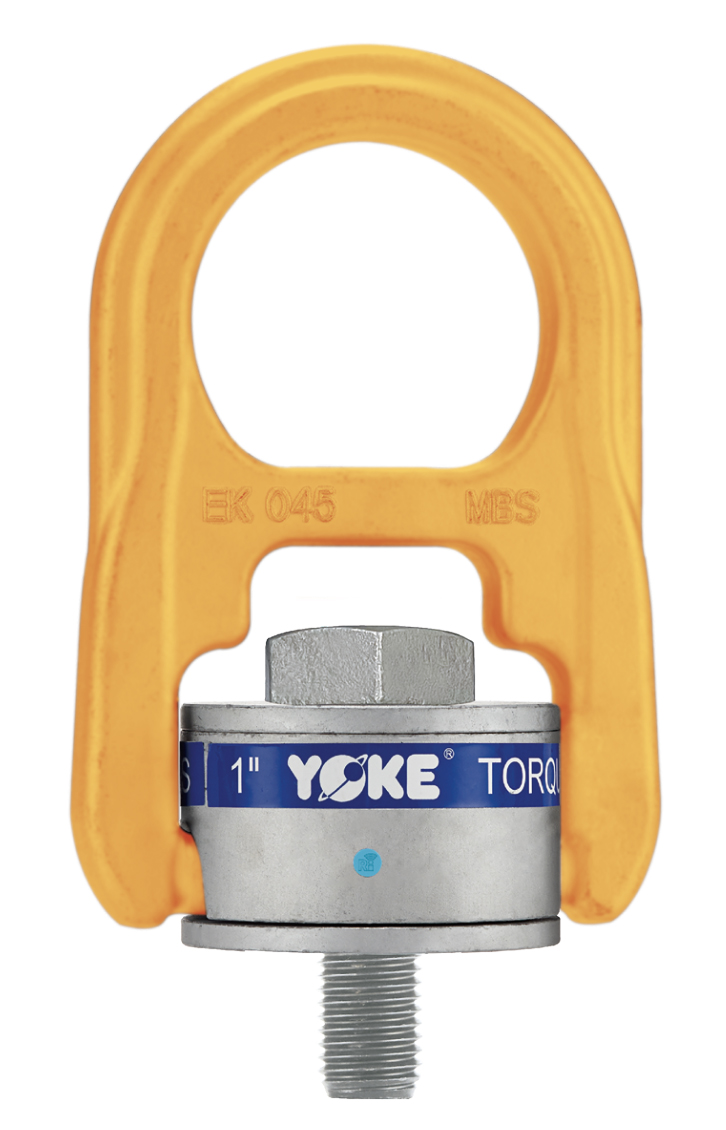

| Item NO. | file download | Compare | Working Load Limit | Thread version | Dimensions | Torque in | N.W. | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lbs 5:1 | lbs 4:1 | M | E | TPI | A | B | C | D | F | G | ft.lbs | lbs | |||
| 8-204-0191 | Download | Compare | 4000 | 5000 | 5/8 | 0.94 | 11UNC | 2.56 | 2.32 | 2.38 | 0.59 | 6.26 | 4.13 | 60 | 4 |
| 8-204-0101 | Download | Compare | 2500 | 3125 | 1/2 | 0.75 | 13UNC | 2.56 | 2.32 | 2.24 | 0.59 | 6.26 | 4.13 | 28 | 3.7 |
| 8-204-0051 | Download | Compare | 1000 | 1250 | 3/8 | 0.56 | 16UNC | 1.57 | 1.61 | 1.69 | 0.35 | 4.02 | 2.56 | 12 | 0.9 |
| 8-204-0041 | Download | Compare | 800 | 1000 | 5/16 | 0.47 | 18UNC | 1.57 | 1.61 | 1.61 | 0.35 | 4.02 | 2.56 | 7 | 0.9 |
| 8-204-0301 | Download | Compare | 7000 | 8750 | 3/4 | 1.13 | 10UNC | 3.35 | 2.87 | 2.87 | 0.87 | 8.03 | 5.28 | 100 | 8.8 |
| 8-204-0421 | Download | Compare | 8000 | 10000 | 7/8 | 1.31 | 9UNC | 3.35 | 2.87 | 3.07 | 0.87 | 8.03 | 5.28 | 160 | 9.3 |
| 8-204-0451 | Download | Compare | 10000 | 12500 | 1 | 1.50 | 8UNC | 3.35 | 2.87 | 3.07 | 0.87 | 8.03 | 5.28 | 230 | 9.5 |
| 8-204-0701 | Download | Compare | 15000 | 18750 | 1 1/4 | 1.88 | 7UNC | 3.95 | 3.15 | 3.06 | 1.00 | 8.58 | 6.3 | 470 | 14.4 |
| 8-204-1251 | Download | Compare | 24000 | 30000 | 1 1/2 | 2.25 | 6UNC | 4.72 | 4.17 | 4.29 | 1.41 | 12.09 | 8.66 | 800 | 35.1 |
| 8-204-1351 | Download | Compare | 30000 | 37500 | 2 | 3.00 | 4.5UNC | 4.72 | 4.17 | 4.54 | 1.41 | 12.09 | 8.66 | 1100 | 35.2 |
| 8-204-004 | - | Compare | 800 | 1000 | 5/16 | 0.71 | 18UNC | 1.57 | 1.61 | 1.61 | 0.35 | 4.02 | 2.56 | 7 | 0.9 |
| 8-204-005 | - | Compare | 1000 | 1250 | 3/8 | 0.71 | 16UNC | 1.57 | 1.61 | 1.69 | 0.35 | 4.02 | 2.56 | 12 | 0.9 |
| 8-204-010 | - | Compare | 2500 | 3125 | 1/2 | 0.75 | 13UNC | 2.56 | 2.32 | 2.24 | 0.59 | 6.26 | 4.13 | 28 | 3.7 |
| 8-204-010L | - | Compare | 2500 | 3125 | 1/2 | 1.26 | 13UNC | 2.56 | 2.32 | 2.24 | 0.59 | 6.26 | 4.13 | 28 | 3.7 |
| 8-204-019 | Download | Compare | 4000 | 5000 | 5/8 | 0.74 | 11UNC | 2.56 | 2.32 | 2.38 | 0.59 | 6.26 | 4.13 | 60 | 4 |
| 8-204-019L | - | Compare | 4000 | 5000 | 5/8 | 1.75 | 11UNC | 2.56 | 2.32 | 2.38 | 0.59 | 6.26 | 4.13 | 60 | 4 |
| 8-204-021 | - | Compare | 5000 | 6250 | 3/4 | 1.24 | 10UNC | 2.56 | 2.32 | 2.51 | 0.59 | 6.26 | 4.13 | 100 | 4 |
| 8-204-021L | - | Compare | 5000 | 6250 | 3/4 | 1.73 | 10UNC | 2.56 | 2.32 | 2.51 | 0.59 | 6.26 | 4.13 | 100 | 4.2 |
| 8-204-030 | - | Compare | 7000 | 8750 | 3/4 | 0.87 | 10UNC | 3.35 | 2.87 | 2.87 | 0.87 | 8.03 | 5.28 | 100 | 8.8 |
| 8-204-030L | - | Compare | 7000 | 8750 | 3/4 | 1.87 | 10UNC | 3.35 | 2.87 | 2.87 | 0.87 | 8.03 | 5.28 | 100 | 9.5 |
| 8-204-042 | - | Compare | 8000 | 10000 | 7/8 | 1.38 | 9UNC | 3.35 | 2.87 | 3.07 | 0.87 | 8.03 | 5.28 | 160 | 9.3 |
| 8-204-042L | Download | Compare | 8000 | 10000 | 7/8 | 2.37 | 9UNC | 3.35 | 2.87 | 3.07 | 0.87 | 8.03 | 5.28 | 160 | 9.7 |
| 8-204-045 | - | Compare | 10000 | 12500 | 1 | 1.38 | 8UNC | 3.35 | 2.87 | 3.07 | 0.87 | 8.03 | 5.28 | 230 | 9.5 |
| 8-204-045L | - | Compare | 10000 | 12500 | 1 | 2.37 | 8UNC | 3.35 | 2.87 | 3.07 | 0.87 | 8.03 | 5.28 | 230 | 10.1 |
| 8-204-070 | - | Compare | 15000 | 18750 | 1 1/4 | 2.25 | 7UNC | 3.95 | 3.15 | 3.06 | 1.00 | 8.58 | 6.3 | 470 | 14.5 |
| 8-204-125 | - | Compare | 24000 | 30000 | 1 1/2 | 2.17 | 6UNC | 4.72 | 4.17 | 4.29 | 1.41 | 12.09 | 8.66 | 800 | 35.2 |
| 8-204-135 | - | Compare | 30000 | 37500 | 2 | 3.01 | 4.5UNC | 4.72 | 4.17 | 4.54 | 1.41 | 12.09 | 8.66 | 1100 | 35.2 |
| 8-204-0211 | Download | Compare | 5000 | 6250 | 3/4 | 1.13 | 10UNC | 2.56 | 2.32 | 2.51 | 0.59 | 6.26 | 4.13 | 100 | 4 |
