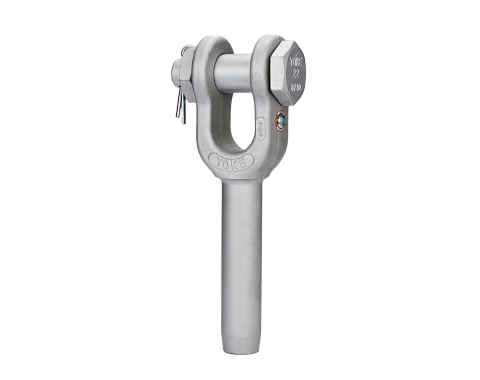

Forged Open Swage Wire Rope Socket
Item No.8-730
● YOKE 8-730 Opened Swage Sockets are forged from special bar quality carbon steel with very finest hardness controlled by spheroidize annealing.
● YOKE Swage Sockets properly applied have an efficiency rating of 100% based on the catalog strength of wire rope.
● YOKE Swage Sockets are recommended for use with 6x19, 6x37, and IWRC wire rope. They are approved for use with galvanized bridge rope.
● YOKE Swage Sockets are not recommended for use on fiber core or lang lay rope.
● Galvanized finish or self colored.
● YOKE Swage Sockets properly applied have an efficiency rating of 100% based on the catalog strength of wire rope.
● YOKE Swage Sockets are recommended for use with 6x19, 6x37, and IWRC wire rope. They are approved for use with galvanized bridge rope.
● YOKE Swage Sockets are not recommended for use on fiber core or lang lay rope.
● Galvanized finish or self colored.
| Item NO. | file download | Compare | Item No. | Rope Size | Before Swage Dimensions | Max. After Swage Dim. | N.W. | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galvanized | mm | A | B | C | D | D1 | d | K | L | L1 | W | kg | ||||
| 8-730-06 | Download | Compare | 8-730-06G | 6 - 7 | 38 | 35 | 9 | 13 | 18 | 7 | 102 | 122 | 55 | 17 | 12 | 0.3 |
| 8-730-08 | Download | Compare | 8-730-08G | 8 | 45 | 42 | 12 | 20 | 21 | 9 | 135 | 159 | 80 | 20 | 18 | 0.6 |
| 8-730-10 | Download | Compare | 8-730-10G | 9 - 10 | 45 | 42 | 12 | 20 | 21 | 10 | 135 | 159 | 80 | 20 | 18 | 0.7 |
| 8-730-11 | Download | Compare | 8-730-11G | 11 - 12 | 50 | 50 | 14 | 25 | 25 | 12 | 174 | 199 | 110 | 25 | 23 | 1.1 |
| 8-730-13 | Download | Compare | 8-730-13G | 13 | 50 | 50 | 14 | 25 | 25 | 14 | 174 | 199 | 110 | 25 | 23 | 1.1 |
| 8-730-14 | - | Compare | 8-730-14G | 14 - 15 | 57 | 60 | 17 | 32 | 32 | 16 | 210 | 240 | 135 | 31 | 30 | 2.4 |
| 8-730-16 | Download | Compare | 8-730-16G | 16 | 57 | 60 | 17 | 32 | 32 | 17 | 210 | 240 | 135 | 31 | 30 | 2.3 |
| 8-730-19 | Download | Compare | 8-730-19G | 18 - 20 | 70 | 70 | 20 | 39 | 39 | 21 | 256 | 295 | 161 | 38 | 36 | 4.0 |
| 8-730-22 | Download | Compare | 8-730-22G | 22 - 23 | 82 | 80 | 24 | 43 | 43 | 24 | 300 | 340 | 189 | 45 | 40 | 5.9 |
| 8-730-26 | Download | Compare | 8-730-26G | 24 - 25 | 98 | 100 | 26 | 50 | 50 | 27 | 345 | 395 | 216 | 50 | 46 | 9.1 |
| 8-730-28 | Download | Compare | 8-730-28G | 28 | 108 | 103 | 30 | 57 | 57 | 30 | 383 | 442 | 238 | 57 | 52 | 12.8 |
| 8-730-32 | Download | Compare | 8-730-32G | 32 | 120 | 113 | 34 | 64 | 64 | 34 | 419 | 484 | 269 | 63 | 59 | 17.8 |
| 8-730-36 | Download | Compare | 8-730-36G | 35 - 36 | 132 | 127 | 35 | 71 | 71 | 37 | 463 | 534 | 297 | 64 | 65 | 21.8 |
| 8-730-38 | Download | Compare | 8-730-38G | 38 | 146 | 140 | 43 | 78 | 78 | 41 | 502 | 581 | 315 | 76 | 72 | 28.9 |
| 8-730-45 | Download | Compare | 8-730-45G | 44 - 45 | 171 | 170 | 54 | 86 | 86 | 47 | 584 | 674 | 378 | 89 | 78 | 44.0 |
| 8-730-50 | Download | Compare | 8-730-50G | 48 - 51 | 203 | 203 | 60 | 100 | 100 | 54 | 682 | 798 | 431 | 101 | 91 | 73.1 |
| Item NO. | file download | Compare | Item No. | Rope Size | Before Swage Dimensions | Max. After Swage Dim. | N.W. | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Galvanized | inch | A | B | C | D | D1 | d | K | L | L1 | W | lbs | ||||
| 8-730-06 | Download | Compare | 8-730-06G | 1/4 | 1.50 | 1.38 | 0.35 | 0.50 | 0.67 | 0.27 | 4.02 | 4.80 | 2.17 | 0.67 | 0.46 | 0.7 |
| 8-730-08 | Download | Compare | 8-730-08G | 5/16 | 1.77 | 1.65 | 0.47 | 0.77 | 0.79 | 0.34 | 5.31 | 6.26 | 3.15 | 0.79 | 0.71 | 1.3 |
| 8-730-10 | Download | Compare | 8-730-10G | 3/8 | 1.77 | 1.65 | 0.47 | 0.77 | 0.79 | 0.41 | 5.31 | 6.26 | 3.15 | 0.79 | 0.71 | 1.5 |
| 8-730-11 | Download | Compare | 8-730-11G | 7/16 | 1.96 | 2.00 | 0.55 | 0.98 | 0.98 | 0.48 | 6.85 | 7.83 | 4.33 | 1.00 | 0.91 | 2.4 |
| 8-730-13 | Download | Compare | 8-730-13G | 1/2 | 1.96 | 2.00 | 0.55 | 0.98 | 1.19 | 0.55 | 6.85 | 7.83 | 4.33 | 1.00 | 0.91 | 2.4 |
| 8-730-14 | - | Compare | 8-730-14G | 9/16 | 2.25 | 2.36 | 0.68 | 1.25 | 1.19 | 0.62 | 8.27 | 9.45 | 5.31 | 1.22 | 1.16 | 5.3 |
| 8-730-16 | Download | Compare | 8-730-16G | 5/8 | 2.25 | 2.36 | 0.68 | 1.25 | 1.19 | 0.67 | 8.27 | 9.45 | 5.31 | 1.22 | 1.16 | 5.1 |
| 8-730-19 | Download | Compare | 8-730-19G | 3/4 | 2.75 | 2.75 | 0.79 | 1.55 | 1.38 | 0.82 | 10.07 | 11.61 | 6.34 | 1.5 | 1.42 | 8.8 |
| 8-730-22 | Download | Compare | 8-730-22G | 7/8 | 3.23 | 3.15 | 0.94 | 1.7 | 1.63 | 0.94 | 11.81 | 13.39 | 7.44 | 1.77 | 1.55 | 13 |
| 8-730-26 | Download | Compare | 8-730-26G | 1 | 3.86 | 3.94 | 1.02 | 1.98 | 2 | 1.06 | 13.58 | 15.55 | 8.5 | 2 | 1.8 | 20.2 |
| 8-730-28 | Download | Compare | 8-730-28G | 11/8 | 4.26 | 4.06 | 1.19 | 2.25 | 2.2 | 1.19 | 15.08 | 17.4 | 9.37 | 2.25 | 2.05 | 28.2 |
| 8-730-32 | Download | Compare | 8-730-32G | 11/4 | 4.72 | 4.45 | 1.34 | 2.53 | 2.48 | 1.33 | 16.5 | 19.06 | 10.59 | 2.48 | 2.3 | 39.2 |
| 8-730-36 | Download | Compare | 8-730-36G | 13/8 | 5.2 | 5 | 1.38 | 2.8 | 2.44 | 1.45 | 18.23 | 21.02 | 11.69 | 2.52 | 2.56 | 48 |
| 8-730-38 | Download | Compare | 8-730-38G | 11/2 | 5.75 | 5.51 | 1.69 | 3.08 | 2.52 | 1.61 | 19.75 | 22.88 | 12.4 | 3 | 2.81 | 63.6 |
| 8-730-45 | Download | Compare | 8-730-45G | 13/4 | 6.75 | 6.7 | 2.11 | 3.39 | 3.5 | 1.86 | 23 | 26.53 | 14.88 | 3.5 | 3.06 | 96.8 |
| 8-730-50 | Download | Compare | 8-730-50G | 2 | 8 | 8 | 2.37 | 3.94 | 3.75 | 2.11 | 26.88 | 31.44 | 16.96 | 4 | 3.56 | 160.8 |
