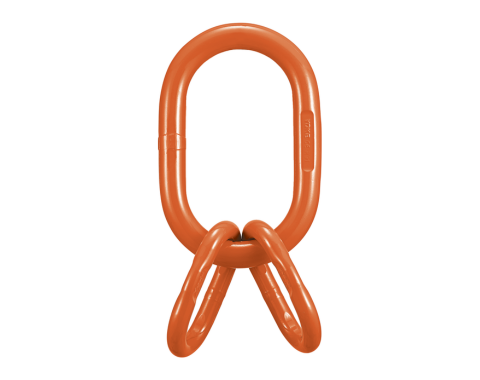

DA-007
Item No.DA-007
● Welded alloy steel quenched and tempered.
● Tested and manufactured in accordance with DNV-ST-E271, DNV-ST-E273 and EN 1677-4.
● Charpy tested in accordance with DNV-ST-E271.
● Certified by DNV-ST-E271 and DNV-ST-E273.
● Design factor 5:1.
● Proof Load tested to 2.5 times the Working Load Limit (WLL).
● Fatigue rated to 20,000 cycles at 1.5 times the Working Load Limit (WLL).
● Magnaflux crack detection is performed 100% on each batch.
● Charpy test of 42 joules (31ft-lb) at -40°C (-40°F) for normal section.
● Charpy test of 27 joules (20ft-lb) at -40°C (-40°F) for welded section.
● Tested and manufactured in accordance with DNV-ST-E271, DNV-ST-E273 and EN 1677-4.
● Charpy tested in accordance with DNV-ST-E271.
● Certified by DNV-ST-E271 and DNV-ST-E273.
● Design factor 5:1.
● Proof Load tested to 2.5 times the Working Load Limit (WLL).
● Fatigue rated to 20,000 cycles at 1.5 times the Working Load Limit (WLL).
● Magnaflux crack detection is performed 100% on each batch.
● Charpy test of 42 joules (31ft-lb) at -40°C (-40°F) for normal section.
● Charpy test of 27 joules (20ft-lb) at -40°C (-40°F) for welded section.

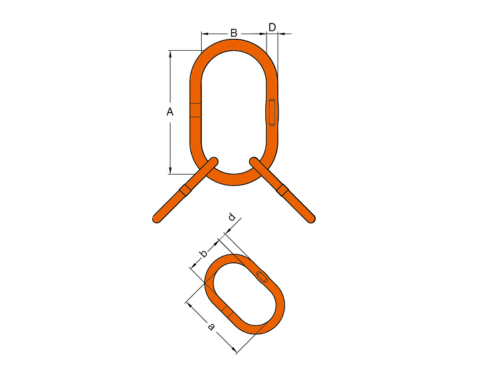

| Item NO. | Compare | Assembled with | WLL β 0-45° | Proof Load | Used to single hook according to DlN 15401 NO. | Dimensions | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | kN | A | a | B | B | D | d | ||||
| DA-007-16 | Compare | FD-161+2 FD-131 | 4.1 | 100 | 4 | 140 | 90 | 70 | 50 | 16 | 13 |
| DA-007-22 | Compare | FD-222+2 FD-191 | 8.9 | 218 | 6 | 162 | 140 | 90 | 70 | 22 | 19 |
| DA-007-25 | Compare | FD-251+2 FD-19 | 8.9 | 218 | 16 | 275 | 160 | 145 | 90 | 25 | 19 |
| DA-007-28 | Compare | FD-28+2 FD-22 | 12.9 | 316 | 16 | 275 | 180 | 145 | 100 | 28 | 22 |
| DA-007-32 | Compare | FD-32+2 FD-25 | 17 | 417 | 16 | 275 | 210 | 145 | 115 | 32 | 25 |
| DA-007-36 | Compare | FD-361+2 FD-281 | 23.6 | 578 | 16 | 275 | 190 | 145 | 100 | 36 | 28 |
| DA-007-40 | Compare | FD-40+2 FD-32 | 28.1 | 688 | 20 | 300 | 275 | 160 | 145 | 40 | 32 |
| DA-007-45 | Compare | FD-45+2 FD-36 | 38.3 | 938 | 25 | 340 | 285 | 180 | 155 | 45 | 36 |
| DA-007-50 | Compare | FD-50+2 FD-401 | 45 | 1103 | 32 | 350 | 260 | 195 | 130 | 50 | 40 |
| Item NO. | Compare | Assembled with | WLL β 0-45° | Proof Load | Used to single hook according to DlN 15401 NO. | Dimensions | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| lbs | lbs | A | a | B | B | D | d | ||||
| DA-007-16 | Compare | FD-161+2 FD-131 | 9000 | 22500 | 4 | 5.51 | 3.54 | 2.76 | 1.97 | 0.63 | 0.51 |
| DA-007-22 | Compare | FD-222+2 FD-191 | 19600 | 49000 | 6 | 6.38 | 5.51 | 3.54 | 2.76 | 0.87 | 0.75 |
| DA-007-25 | Compare | FD-251+2 FD-19 | 19600 | 49000 | 16 | 10.83 | 6.3 | 5.71 | 3.54 | 0.98 | 0.75 |
| DA-007-28 | Compare | FD-28+2 FD-22 | 28400 | 71000 | 16 | 10.83 | 7.09 | 5.71 | 3.94 | 1.1 | 0.87 |
| DA-007-32 | Compare | FD-32+2 FD-25 | 37400 | 93500 | 16 | 10.83 | 8.27 | 5.71 | 4.53 | 1.26 | 0.98 |
| DA-007-36 | Compare | FD-361+2 FD-281 | 52000 | 130000 | 16 | 10.83 | 7.48 | 5.71 | 3.94 | 1.42 | 1.1 |
| DA-007-40 | Compare | FD-40+2 FD-32 | 61900 | 154750 | 20 | 11.81 | 10.83 | 6.3 | 5.71 | 1.57 | 1.26 |
| DA-007-45 | Compare | FD-45+2 FD-36 | 84400 | 211000 | 25 | 13.39 | 11.22 | 7.09 | 6.1 | 1.77 | 1.42 |
| DA-007-50 | Compare | FD-50+2 FD-401 | 99200 | 248000 | 32 | 13.78 | 10.24 | 7.68 | 5.12 | 1.97 | 1.57 |
