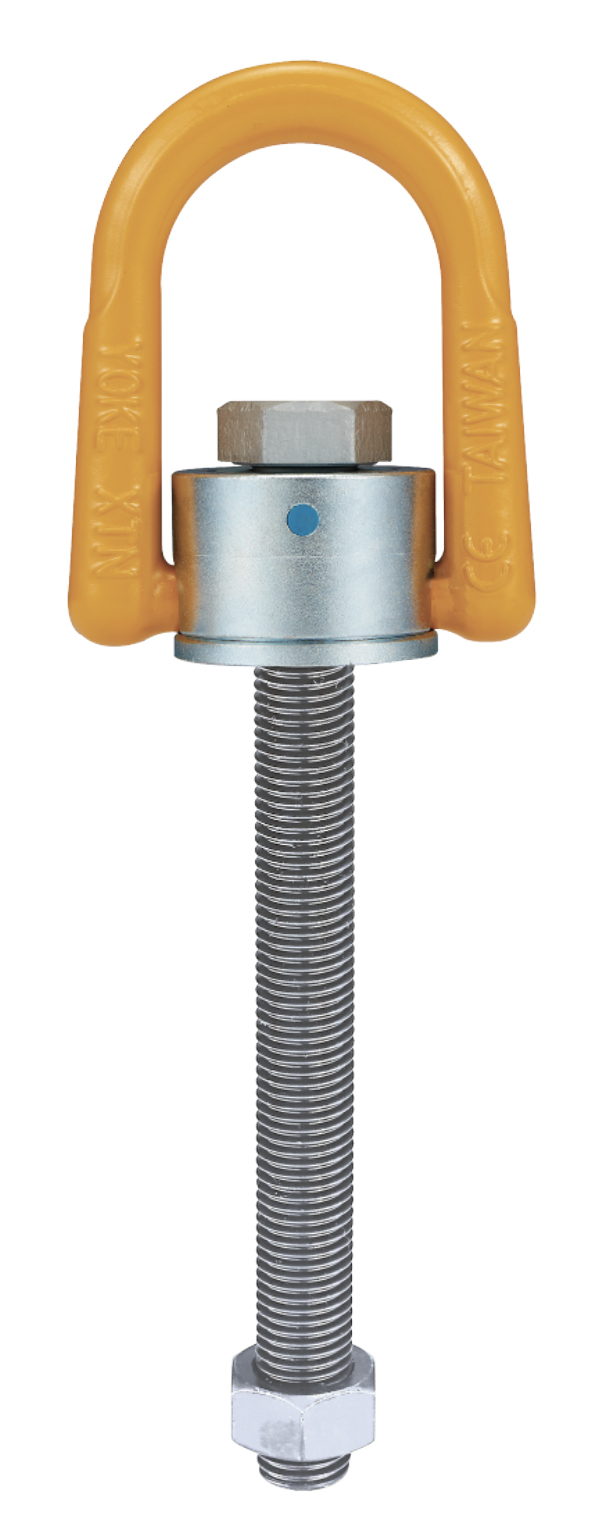

Anchor Point, Long Bolt
Item No.8-231L

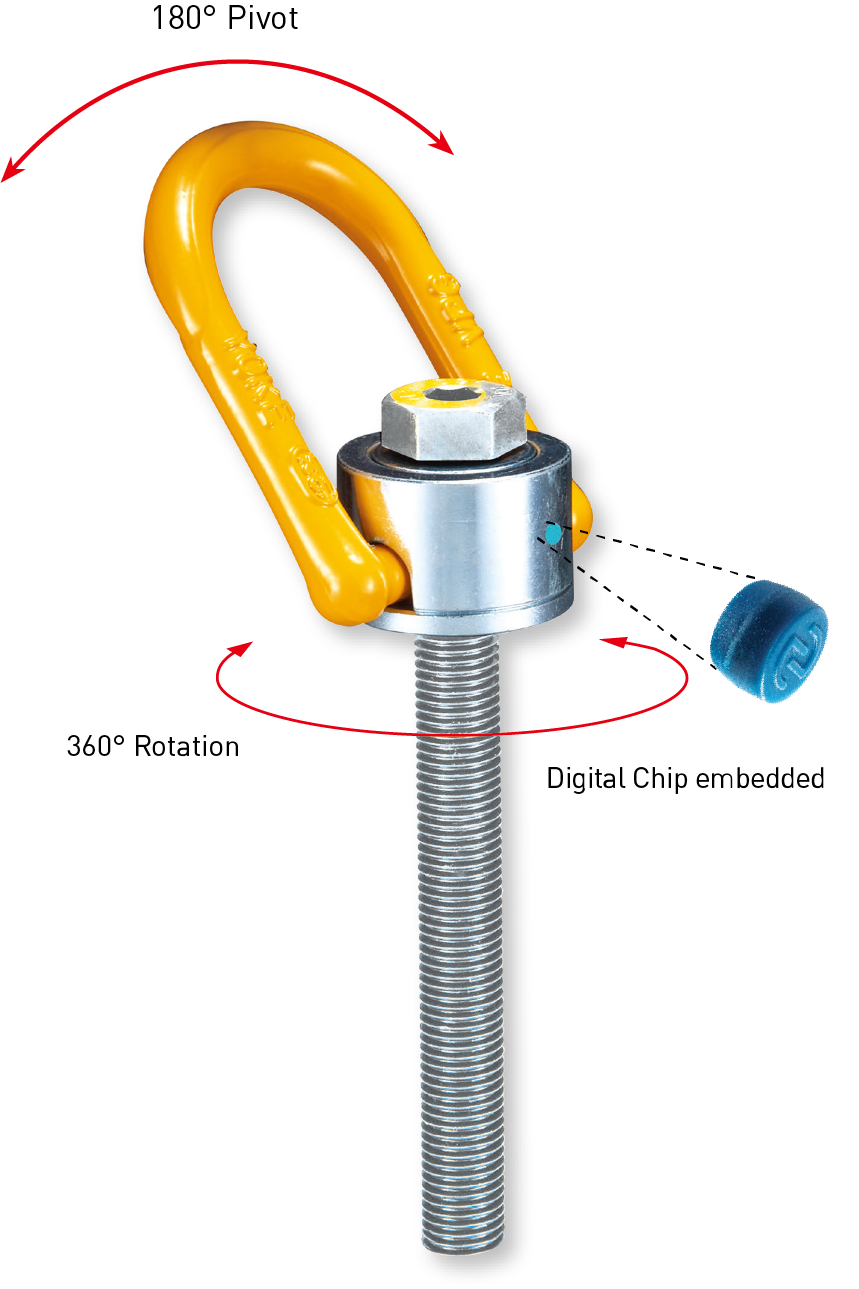

• Rotates through 360° and pivots 180°, and simultaneously allows lifting from any direction.
• Manufactured from forged alloy steel, quenched and tempered.
• Tested in accordance with EN 1677-1.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts and cap screw are traceable to Test Certification.
• Bolts are Metric thread.
• Proof tested to 2.5 times the WLL.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
• Quick and simple assembly, just a tapped hole is required.
• Manufactured from forged alloy steel, quenched and tempered.
• Tested in accordance with EN 1677-1.
• Load rated parts are 100% magnaflux crack detected.
• Individual forged parts and cap screw are traceable to Test Certification.
• Bolts are Metric thread.
• Proof tested to 2.5 times the WLL.
• Fatigue rated to 20,000 cycles at 1.5 times the WLL.
• All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
• Quick and simple assembly, just a tapped hole is required.

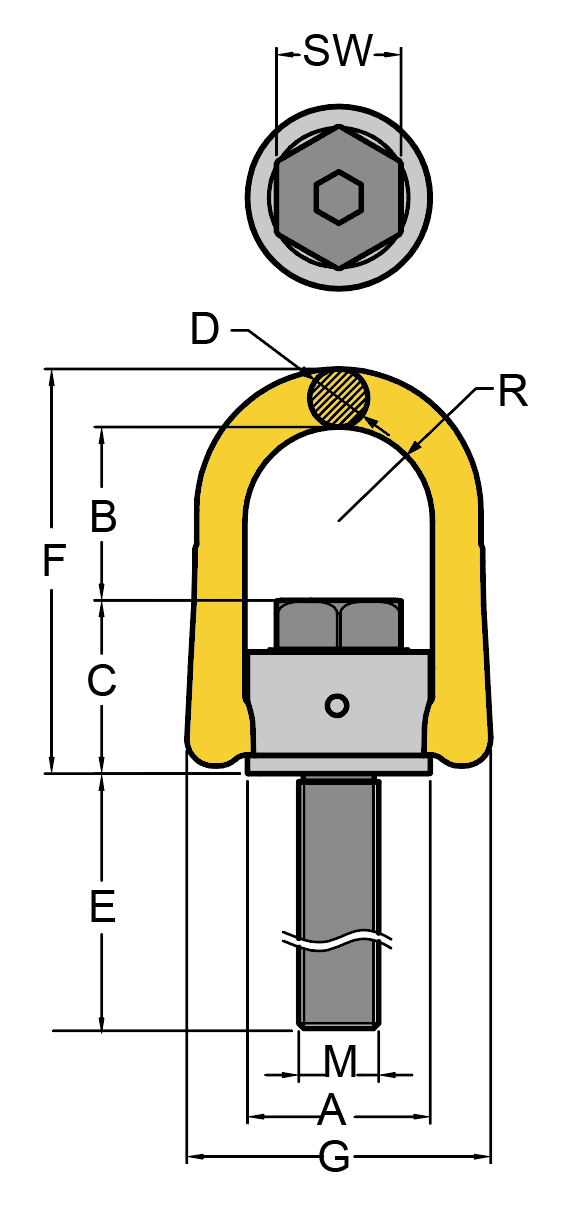

| Item NO. | file download | Compare | Working Load Limit | Thread version | Dimensions | Torque in | N.W. | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | M | E | Pitch DIN13 | A | B | C | D | F | G | H | I | R | S | SW | Nm | kg | |||
| 8-231-020/185L | Download | Compare | 2.0 | M 16 | 149 | 2 | 50 | 54 | 46 | 17 | 116 | 90 | 36 | 63 | 27 | 10 | 24 | 150 | 1 |
| 8-231-030/230L | Download | Compare | 3.0 | M 20 | 194 | 2.5 | 51 | 52 | 49 | 17 | 116 | 90 | 36 | 63 | 27 | 12 | 30 | 250 | 2 |
| 8-231-050/265L | Download | Compare | 5.0 | M 24 | 222 | 3 | 72 | 81 | 59 | 25 | 163 | 126 | 45 | 88 | 37 | 14 | 36 | 400 | 2.8 |
| 8-231-200/385L | Download | Compare | 20.0 | M48 | 303 | 5 | 110 | 97 | 112 | 36 | 248 | 188 | 82 | 128 | 57 | 27 | 75 | 2000 | 13.3 |
| 8-231-156/350L | Download | Compare | 15.6 | M42 | 268 | 4.5 | 110 | 101 | 108 | 36 | 248 | 188 | 82 | 128 | 57 | 24 | 65 | 1500 | 11.3 |
| 8-231-125/300L | Download | Compare | 12.5 | M 36 | 226 | 4 | 110 | 112 | 98 | 36 | 248 | 188 | 75 | 128 | 57 | 22 | 55 | 1000 | 10.6 |
| 8-231-078/340L | Download | Compare | 7.8 | M 30 | 278 | 3.5 | 87 | 94 | 81 | 30 | 204 | 148 | 62 | 110 | 46 | 17 | 46 | 500 | 6.3 |
| 8-231-010/150L | Download | Compare | 1.0 | M 12 | 128 | 1.75 | 33 | 39 | 31 | 11 | 80 | 58 | 23 | 44 | 17 | 8 | 19 | 100 | 0.4 |
| 8-231-007/125L | Download | Compare | 0.7 | M 10 | 103 | 1.5 | 33 | 41 | 29 | 11 | 80 | 58 | 23 | 44 | 17 | 6 | 17 | 60 | 0.4 |
| 8-231-005/105L | Download | Compare | 0.5 | M 8 | 83 | 1.25 | 33 | 42 | 28 | 11 | 80 | 58 | 23 | 44 | 17 | 6 | 13 | 30 | 0.3 |
