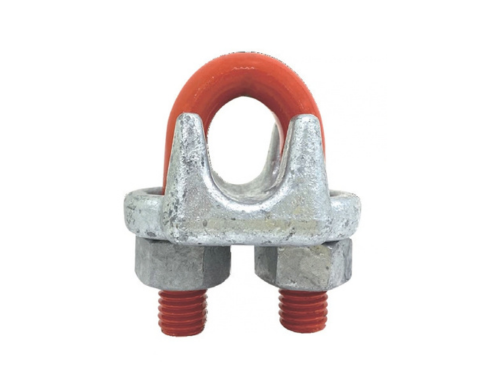

Wire Rope Clip

Item No.8-762

● Galvanized finish.
● Forged base for full range of sizes.
● According to the breaking load of the wire rope, YOKE wire rope clips have an efficiency rating of 80% for 1/8” - 7/8” sizes, and 90% for sizes 1” up to 3”.
● Manufactured with or exceeds all requirements of ASME B30.26 and EN 13411 -2003.

Compare Datasheet

Metric (mm)
Imperial (inch)

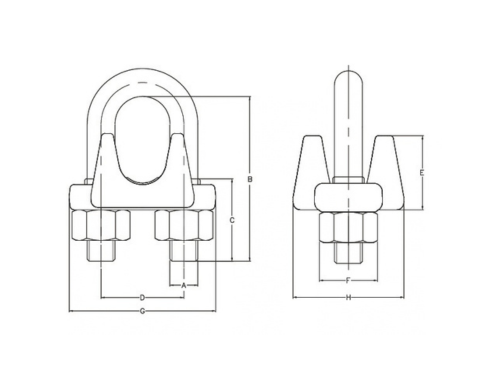

Item NO.	Compare	Dimensions								N.W.	Rope Size
		A	B	C	D	E	F	G	H	kg	mm
8-762-03	Compare	5	25	12	12	10	9	26	21	0.03	3 - 4
8-762-05	Compare	5	30	14	15	13	13	31	25	0.04	5
8-762-06	Compare	7	33	15	19	17	14	37	31	0.09	6 - 7
8-762-08	Compare	8	35	19	22	19	17	43	34	0.14	8
8-762-10	Compare	9	38	19	25	24	19	51	42	0.23	9 - 10
8-762-11	Compare	11	48	25	30	29	22	59	49	0.37	11
8-762-13	Compare	11	48	25	30	29	22	58	49	0.37	12 - 13
8-762-14	Compare	13	61	32	33	31	24	64	53	0.48	14 - 15
8-762-16	Compare	13	61	32	33	35	24	64	52	0.48	16
8-762-19	Compare	14	70	37	38	35	27	72	57	0.68	18 - 20
8-762-22	Compare	17	79	41	45	38	32	81	62	1	22
8-762-26	Compare	17	89	46	48	43	32	89	67	1.21	24 - 26
8-762-28	Compare	17	99	51	51	50	32	92	72	1.36	28 - 30
8-762-32	Compare	20	108	54	59	55	37	105	80	2.08	32 - 34
8-762-36	Compare	20	108	54	59	58	37	106	79	2.23	36
8-762-38	Compare	20	125	61	67	61	37	113	86	2.48	38
8-762-42	Compare	22	135	67	70	68	41	122	91	3.28	41 - 42
8-762-45	Compare	24	146	70	78	76	46	134	98	4.28	44 - 46
8-762-50	Compare	32	164	76	86	78	51	150	113	6.25	48 - 52
8-762-57	Compare	32	179	93	99	82	51	166	115	7.1	56 - 58
8-762-64	Compare	32	193	95	105	93	51	170	120	7.88	62 - 65
8-762-70	Compare	32	208	97	111	105	51	178	124	9.56	68 - 72
8-762-75	Compare	38	232	104	120	115	61	194	135	14.8	75 - 78

Item NO.	Compare	Dimensions								N.W.	Rope Size
		A	B	C	D	E	F	G	H	lbs	inch
8-762-03	Compare	0.2	0.98	0.47	0.47	0.39	0.35	1.02	0.83	0.06	1/8
8-762-05	Compare	0.2	1.18	0.55	0.59	0.51	0.51	1.22	0.98	0.09	3/16
8-762-06	Compare	0.28	1.3	0.59	0.75	0.67	0.55	1.46	1.22	0.19	1/4
8-762-08	Compare	0.31	1.38	0.75	0.87	0.75	0.67	1.69	1.34	0.31	5/16
8-762-10	Compare	0.35	1.5	0.75	0.98	0.94	0.75	2.01	1.65	0.51	3/8
8-762-11	Compare	0.43	1.89	0.98	1.18	1.14	0.87	2.32	1.93	0.81	7/16
8-762-13	Compare	0.43	1.89	0.98	1.18	1.14	0.87	2.28	1.93	0.81	1/2
8-762-14	Compare	0.51	2.4	1.26	1.3	1.22	0.94	2.52	2.09	1.06	9/16
8-762-16	Compare	0.51	2.4	1.26	1.3	1.38	0.94	2.52	2.05	1.06	5/8
8-762-19	Compare	0.55	2.76	1.46	1.5	1.38	1.06	2.83	2.24	1.5	3/4
8-762-22	Compare	0.67	3.11	1.61	1.77	1.5	1.26	3.19	2.44	2.2	7/8
8-762-26	Compare	0.67	3.5	1.81	1.89	1.69	1.26	3.5	2.64	2.66	1
8-762-28	Compare	0.67	3.9	2.01	2.01	1.97	1.26	3.62	2.83	2.99	1 1/8
8-762-32	Compare	0.79	4.25	2.13	2.32	2.17	1.46	4.13	3.15	4.58	1 1/4
8-762-36	Compare	0.79	4.25	2.13	2.32	2.28	1.46	4.17	3.11	4.91	1 3/8
8-762-38	Compare	0.79	4.92	2.4	2.64	2.4	1.46	4.45	3.39	5.46	1 1/2
8-762-42	Compare	0.87	5.31	2.64	2.76	2.68	1.61	4.8	3.58	7.22	1 5/8
8-762-45	Compare	0.94	5.75	2.76	3.07	2.99	1.81	5.28	3.86	9.42	1 3/4
8-762-50	Compare	1.26	6.46	2.99	3.39	3.07	2.01	5.91	4.45	13.75	2
8-762-57	Compare	1.26	7.05	3.66	3.9	3.23	2.01	6.54	4.53	15.62	2 1/4
8-762-64	Compare	1.26	7.6	3.74	4.13	3.66	2.01	6.69	4.72	17.34	2 1/2
8-762-70	Compare	1.26	8.19	3.82	4.37	4.13	2.01	7.01	4.88	21.03	2 3/4
8-762-75	Compare	1.5	9.13	4.09	4.72	4.53	2.4	7.64	5.31	32.56	3
