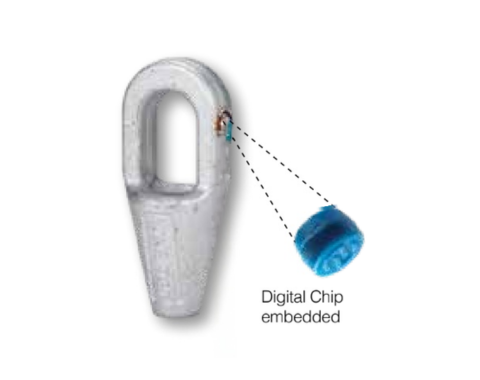

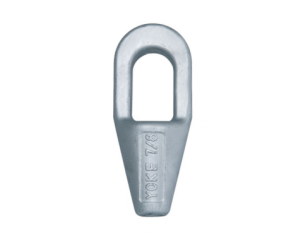

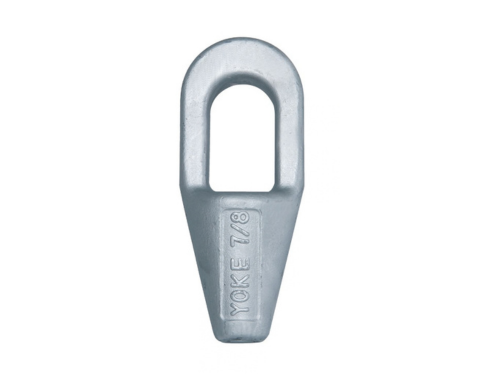

Closed Spelter Wire Rope Socket
Item No.8-735
● YOKE Spelter Sockets are forged steel sockets through 39mm.
● YOKE Spelter Sockets properly applied have an efficiency rating of 100% based on the catalog strength of wire rope.
● Socket size 6mm to 20mm use one groove, 22mm to 38mm use 2 grooves.
● Closed Spelter sockets meet the performance requirements of Federal Specification RR-S-550E ,Type B.
● Galvanized finish or self colored.
● YOKE Spelter Sockets properly applied have an efficiency rating of 100% based on the catalog strength of wire rope.
● Socket size 6mm to 20mm use one groove, 22mm to 38mm use 2 grooves.
● Closed Spelter sockets meet the performance requirements of Federal Specification RR-S-550E ,Type B.
● Galvanized finish or self colored.

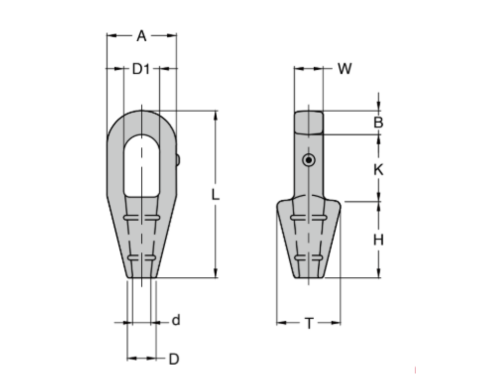

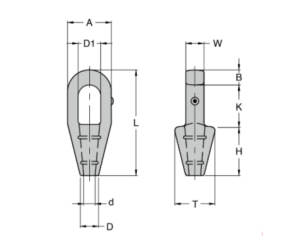

| Item NO. | Compare | Working Load Limit | For Grade 100 Chain | Dimensions | N.W. | Item No. | Rope Size | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | mm | A | B | D | D1 | d | H | K | L | T | W | kg | Galvanized | mm | ||
| 8-735-06 | Compare | 8 | - | 38 | 13 | 18 | 22 | 11 | 57 | 44 | 114 | 38 | 13 | 0.3 | 8-735-06G | 6 - 7 |
| 8-735-10 | Compare | 12 | - | 43 | 16 | 21 | 25 | 13 | 57 | 51 | 124 | 43 | 18 | 0.4 | 8-735-10G | 8 - 10 |
| 8-735-13 | Compare | 20 | - | 51 | 18 | 25 | 30 | 14 | 64 | 57 | 138 | 50 | 22 | 0.7 | 8-735-13G | 11 - 13 |
| 8-735-16 | Compare | 30.8 | 13 | 67 | 21 | 28 | 36 | 18 | 76 | 64 | 160 | 63 | 25 | 1.2 | 8-735-16G | 14 - 16 |
| 8-735-19 | Compare | 43.5 | 14 - 16 | 76 | 27 | 32 | 41 | 21 | 89 | 76 | 192 | 70 | 32 | 2 | 8-735-19G | 18 - 20 |
| 8-735-22 | Compare | 65.3 | 18 - 20 | 92 | 32 | 38 | 48 | 24 | 101 | 89 | 222 | 88 | 38 | 3.6 | 8-735-22G | 22 - 23 |
| 8-735-26 | Compare | 81.6 | 22 - 23 | 104 | 35 | 45 | 58 | 29 | 114 | 102 | 251 | 96 | 45 | 4.9 | 8-735-26G | 24 - 26 |
| 8-735-28 | Compare | 100 | 24 - 25 | 114 | 38 | 51 | 65 | 32 | 127 | 114 | 279 | 105 | 50 | 7.2 | 8-735-28G | 28 - 30 |
| 8-735-36 | Compare | 136 | 26 - 28 | 135 | 41 | 57 | 71 | 38 | 140 | 127 | 308 | 121 | 57 | 10.5 | 8-735-36G | 32 - 35 |
| 8-735-38 | Compare | 170 | 30 - 32 | 135 | 49 | 70 | 81 | 41 | 152 | 152 | 354 | 133 | 64 | 14.3 | 8-735-38G | 36 - 39 |
| Item NO. | Compare | Working Load Limit | For Grade 100 Chain | Dimensions | N.W. | Item No. | Rope Size | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | inch | A | B | D | D1 | d | H | K | L | T | W | lbs | Galvanized | inch | ||
| 8-735-06 | Compare | 8 | - | 1.5 | 0.51 | 0.71 | 0.87 | 0.43 | 2.24 | 1.73 | 4.49 | 1.5 | 0.51 | 0.7 | 8-735-06G | 1/4 |
| 8-735-10 | Compare | 12 | - | 1.69 | 0.63 | 0.83 | 0.98 | 0.51 | 2.24 | 2.01 | 4.88 | 1.69 | 0.71 | 0.9 | 8-735-10G | 5/16 - 3/8 |
| 8-735-13 | Compare | 20 | - | 2.01 | 0.71 | 0.98 | 1.18 | 0.55 | 2.52 | 2.24 | 5.43 | 1.97 | 0.87 | 1.5 | 8-735-13G | 7/16 - 1/2 |
| 8-735-16 | Compare | 30.8 | 1/2 | 2.64 | 0.83 | 1.1 | 1.42 | 0.71 | 2.99 | 2.52 | 6.3 | 2.48 | 0.98 | 2.6 | 8-735-16G | 9/16 - 5/8 |
| 8-735-19 | Compare | 43.5 | 9/16 - 5/8 | 2.99 | 1.06 | 1.26 | 1.61 | 0.83 | 3.5 | 2.99 | 7.56 | 2.76 | 1.26 | 4.4 | 8-735-19G | 3/4 |
| 8-735-22 | Compare | 65.3 | 11/16 - 3/4 | 3.62 | 1.26 | 1.5 | 1.89 | 0.94 | 3.98 | 3.5 | 8.74 | 3.46 | 1.5 | 7.9 | 8-735-22G | 7/8 |
| 8-735-26 | Compare | 81.6 | 13/16 - 7/8 | 4.09 | 1.38 | 1.77 | 2.28 | 1.14 | 4.49 | 4.02 | 9.88 | 3.78 | 1.77 | 10.8 | 8-735-26G | 1 |
| 8-735-28 | Compare | 100 | 15/16 - 1 | 4.49 | 1.5 | 2.01 | 2.56 | 1.26 | 5 | 4.49 | 10.98 | 4.13 | 1.97 | 15.9 | 8-735-28G | 1 1/8 |
| 8-735-36 | Compare | 136 | 1 1/16 - 1 1/8 | 5.31 | 1.61 | 2.24 | 2.8 | 1.5 | 5.51 | 5 | 12.13 | 4.76 | 2.24 | 23.1 | 8-735-36G | 1 1/4 - 1 3/8 |
| 8-735-38 | Compare | 170 | 1 3/16 - 1 1/4 | 5.31 | 1.93 | 2.76 | 3.19 | 1.61 | 5.98 | 5.98 | 13.94 | 5.24 | 2.52 | 31.5 | 8-735-38G | 1 1/2 |
