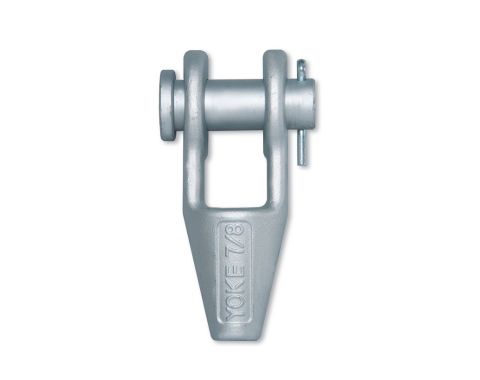

Forged Open Spelter Wire Rope Socket with Round Pin
Item No.8-734
●YOKE Spelter Sockets are forged from special bar quality carbon steel with very finest hardness controlled.
●YOKE Spelter Sockets properly applied have an efficiency rating of 100% based on the catalog strength of wire rope.
●Socket size 6mm to 20mm use one groove, 22mm to 38mm use 2 grooves.
●Open Spelter sockets meet the performance requirements of Federal Specification RR-S550E, Type A.
●Galvanized finish or self colored.
●YOKE Spelter Sockets properly applied have an efficiency rating of 100% based on the catalog strength of wire rope.
●Socket size 6mm to 20mm use one groove, 22mm to 38mm use 2 grooves.
●Open Spelter sockets meet the performance requirements of Federal Specification RR-S550E, Type A.
●Galvanized finish or self colored.

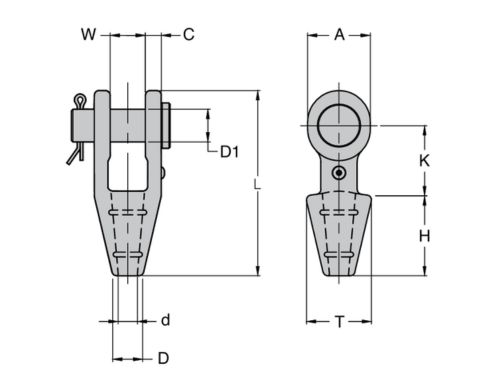

| Item NO. | Compare | Working Load Limit | Wire Line Size | Dimensions | N.W. | Item No. | Rope Size | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | A | C | D | D1 | d | H | K | L | T | W | kg | Galvanized | mm | |||
| 8-734-06 | Compare | 8 | - | 33 | 9 | 18 | 17 | 11 | 57 | 40 | 115 | 39 | 23 | 0.5 | 8-734-06G | 6 - 7 |
| 8-734-10 | Compare | 12 | - | 38 | 11 | 21 | 20 | 13 | 57 | 45 | 123 | 44 | 21 | 0.6 | 8-734-10G | 8 - 10 |
| 8-734-13 | Compare | 20 | - | 48 | 13 | 25 | 25 | 15 | 63 | 54 | 142 | 50 | 25 | 1.1 | 8-734-13G | 11 - 13 |
| 8-734-16 | Compare | 27 | 13 | 58 | 14 | 29 | 30 | 18 | 76 | 64 | 172 | 57 | 32 | 1.8 | 8-734-16G | 14 - 16 |
| 8-734-19 | Compare | 43 | 14 - 16 | 67 | 16 | 32 | 35 | 22 | 92 | 76 | 202 | 67 | 38 | 2.6 | 8-734-19G | 18 - 20 |
| 8-734-22 | Compare | 55 | 18 - 20 | 80 | 20 | 38 | 41 | 24 | 102 | 89 | 235 | 85 | 45 | 4.7 | 8-734-22G | 22 - 23 |
| 8-734-26 | Compare | 76 | 22 - 23 | 96 | 23 | 44 | 51 | 29 | 114 | 102 | 268 | 95 | 52 | 7.4 | 8-734-26G | 24 - 26 |
| 8-734-28 | Compare | 92 | 24 - 25 | 105 | 25 | 51 | 56 | 32 | 127 | 117 | 300 | 105 | 57 | 10.1 | 8-734-28G | 28 - 30 |
| 8-734-36 | Compare | 136 | 26 - 28 | 121 | 29 | 57 | 62 | 38 | 140 | 127 | 335 | 120 | 64 | 14.9 | 8-734-36G | 32 - 35 |
| 8-734-38 | Compare | 170 | 30 - 32 | 137 | 30 | 70 | 70 | 41 | 152 | 152 | 384 | 133 | 76 | 20.7 | 8-734-38G | 36 - 39 |
| Item NO. | Compare | Working Load Limit | Wire Line Size | Dimensions | N.W. | Item No. | Rope Size | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | A | C | D | D1 | d | H | K | L | T | W | lbs | Galvanized | inch | |||
| 8-734-06 | Compare | 8 | - | 1.3 | 0.35 | 0.71 | 0.67 | 0.43 | 2.24 | 1.57 | 4.53 | 1.54 | 0.91 | 1.1 | 8-734-06G | 1/4 |
| 8-734-10 | Compare | 12 | - | 1.5 | 0.43 | 0.83 | 0.79 | 0.51 | 2.24 | 1.77 | 4.84 | 1.73 | 0.83 | 1.3 | 8-734-10G | 5/16 - 3/8 |
| 8-734-13 | Compare | 20 | - | 1.89 | 0.51 | 0.98 | 0.98 | 0.59 | 2.48 | 2.13 | 5.59 | 1.97 | 0.98 | 2.4 | 8-734-13G | 7/16 - 1/2 |
| 8-734-16 | Compare | 27 | 1/2 | 2.28 | 0.55 | 1.14 | 1.18 | 0.71 | 2.99 | 2.52 | 6.77 | 2.24 | 1.26 | 4 | 8-734-16G | 9/16 - 5/8 |
| 8-734-19 | Compare | 43 | 9/16 - 5/8 | 2.64 | 0.63 | 1.26 | 1.38 | 0.87 | 3.62 | 2.99 | 7.95 | 2.64 | 1.5 | 5.7 | 8-734-19G | 3/4 |
| 8-734-22 | Compare | 55 | 11/16 - 3/4 | 3.15 | 0.79 | 1.5 | 1.61 | 0.94 | 4.02 | 3.5 | 9.25 | 3.35 | 1.77 | 10.4 | 8-734-22G | 7/8 |
| 8-734-26 | Compare | 76 | 13/16 - 7/8 | 3.78 | 0.91 | 1.73 | 2.01 | 1.14 | 4.49 | 4.02 | 10.55 | 3.74 | 2.05 | 16.3 | 8-734-26G | 1 |
| 8-734-28 | Compare | 92 | 15/16 - 1 | 4.13 | 0.98 | 2.01 | 2.2 | 1.26 | 5 | 4.61 | 11.81 | 4.13 | 2.24 | 22.3 | 8-734-28G | 1 1/8 |
| 8-734-36 | Compare | 136 | 1 1/16 - 1 1/8 | 4.76 | 1.14 | 2.24 | 2.44 | 1.5 | 5.51 | 5 | 13.19 | 4.72 | 2.52 | 32.8 | 8-734-36G | 1 1/4 - 1 3/8 |
| 8-734-38 | Compare | 170 | 1 3/16 - 1 1/4 | 5.39 | 1.18 | 2.76 | 2.76 | 1.61 | 5.98 | 5.98 | 15.12 | 5.24 | 2.99 | 45.6 | 8-734-38G | 1 1/2 |
