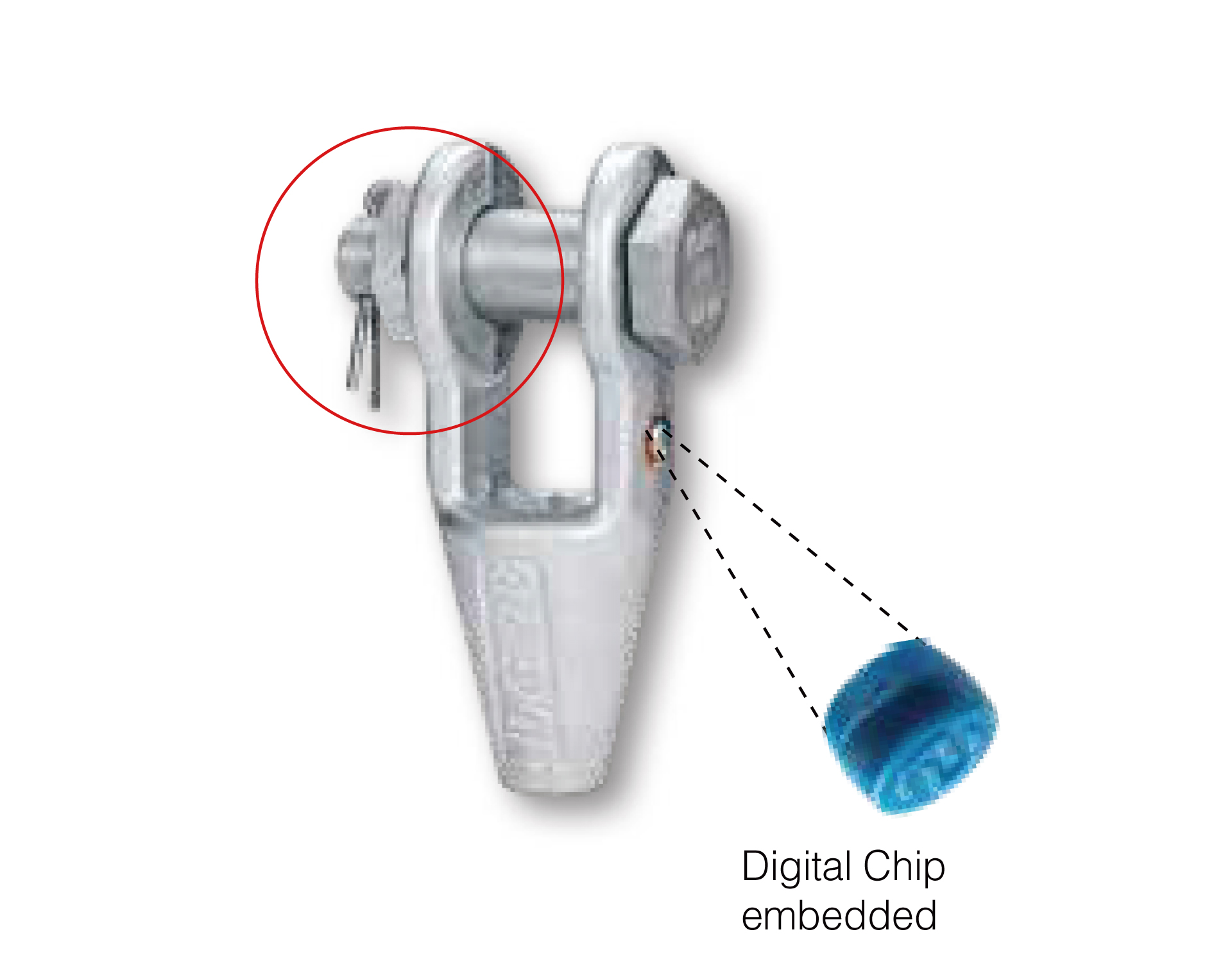

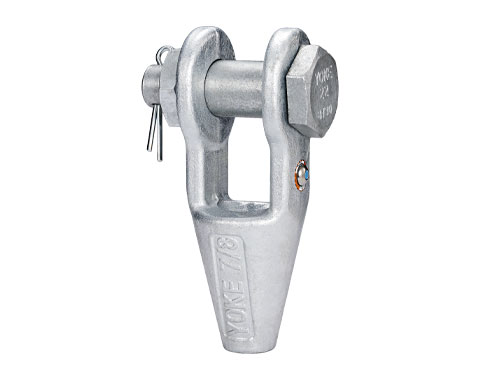

Open Spelter Wire Rope Socket
Item No.8-733
● YOKE Spelter Sockets are forged from special
bar quality carbon steel with very finest
hardness controlled.
● YOKE Spelter Sockets properly applied have an
efficiency rating of 100% based on the catalog
strength of wire rope.
● Socket size 6mm to 20mm use one groove,
22mm to 38mm use 2 grooves.
● Open Spelter sockets meet the performance
requirements of Federal Specification RR-S-
550E ,Type A.
● Galvanized finish or self colored.
bar quality carbon steel with very finest
hardness controlled.
● YOKE Spelter Sockets properly applied have an
efficiency rating of 100% based on the catalog
strength of wire rope.
● Socket size 6mm to 20mm use one groove,
22mm to 38mm use 2 grooves.
● Open Spelter sockets meet the performance
requirements of Federal Specification RR-S-
550E ,Type A.
● Galvanized finish or self colored.

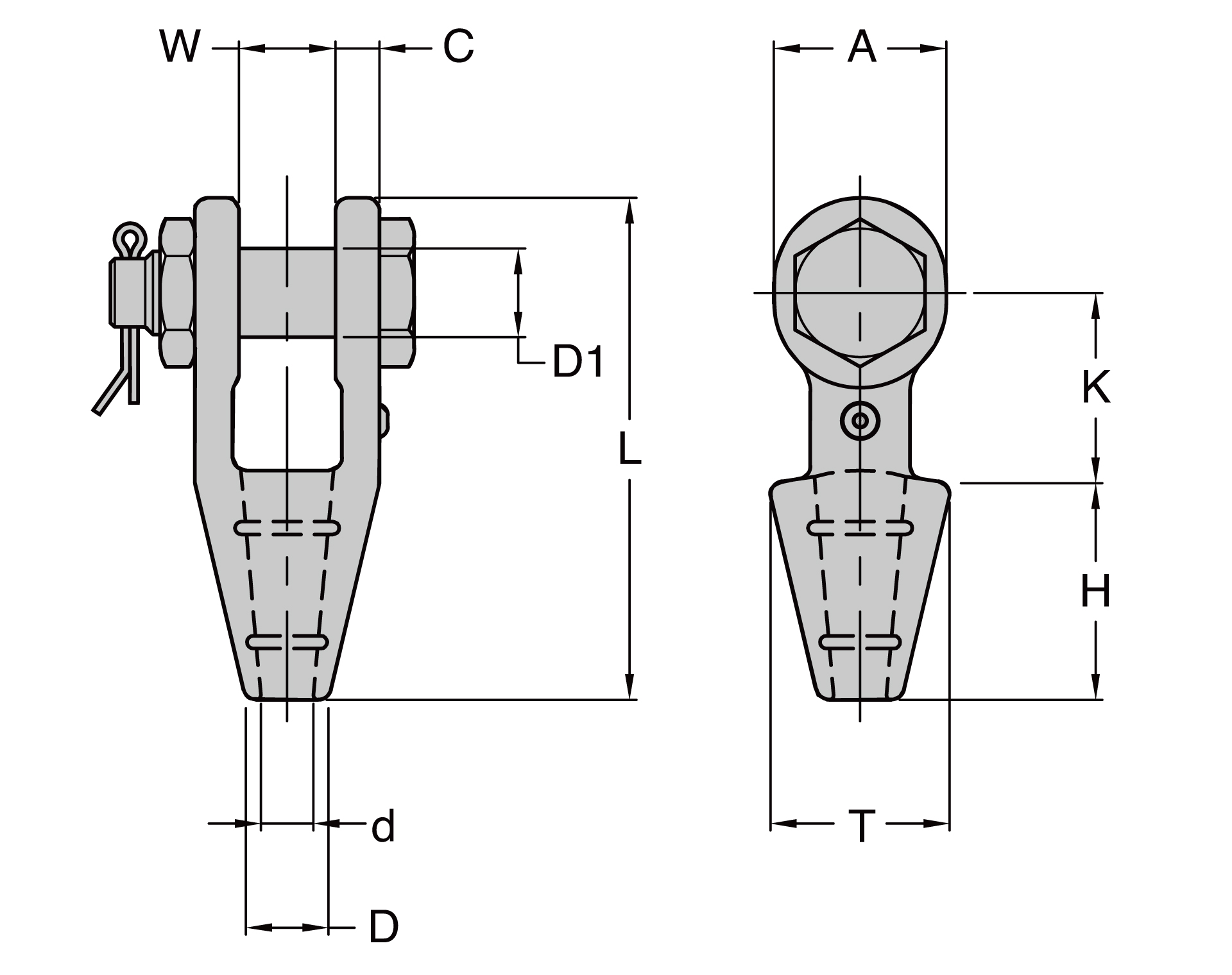

| Item NO. | Compare | Working Load Limit | Wire Line Size | Dimensions | N.W. | Item No. | Rope Size | Before Swage Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | H | T | kg | Galvanized | mm | A | C | D | D1 | d | K | L | W | |||
| 8-733-06 | Compare | 8 | - | 57 | 39 | 0.7 | 8-733-06G | 6 - 7 | 33 | 9 | 18 | 17 | 11 | 40 | 115 | 23 |
| 8-733-10 | Compare | 12 | - | 57 | 44 | 0.9 | 8-733-10G | 8 - 10 | 38 | 11 | 21 | 20 | 13 | 45 | 123 | 21 |
| 8-733-13 | Compare | 20 | - | 63 | 50 | 1.6 | 8-733-13G | 11 - 13 | 48 | 13 | 25 | 25 | 15 | 54 | 142 | 25 |
| 8-733-16 | Compare | 27 | 13 | 76 | 57 | 2.2 | 8-733-16G | 14 - 16 | 58 | 14 | 29 | 30 | 18 | 64 | 172 | 32 |
| 8-733-19 | Compare | 43 | 14 - 16 | 92 | 67 | 3.4 | 8-733-19G | 18 - 20 | 67 | 16 | 32 | 35 | 22 | 76 | 202 | 38 |
| 8-733-22 | Compare | 55 | 18 - 20 | 102 | 85 | 5.4 | 8-733-22G | 22 - 23 | 80 | 20 | 38 | 41 | 24 | 89 | 235 | 45 |
| 8-733-26 | Compare | 76 | 22 - 23 | 114 | 95 | 8.5 | 8-733-26G | 24 - 26 | 96 | 23 | 44 | 51 | 29 | 102 | 268 | 52 |
| 8-733-28 | Compare | 92 | 24 - 25 | 127 | 105 | 11.6 | 8-733-28G | 28 - 30 | 105 | 25 | 51 | 56 | 32 | 117 | 300 | 57 |
| 8-733-36 | Compare | 136 | 26 - 28 | 140 | 120 | 16 | 8-733-36G | 32 - 35 | 121 | 29 | 57 | 62 | 38 | 127 | 335 | 64 |
| 8-733-38 | Compare | 170 | 30 - 32 | 152 | 133 | 24 | 8-733-38G | 36 - 39 | 137 | 30 | 70 | 70 | 41 | 152 | 384 | 76 |
| Item NO. | Compare | Working Load Limit | Wire Line Size | Dimensions | N.W. | Item No. | Rope Size | Before Swage Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | H | T | lbs | Galvanized | inch | A | C | D | D1 | d | K | L | W | |||
| 8-733-06 | Compare | 8 | - | 2.24 | 1.54 | 1.5 | 8-733-06G | 1/4 | 1.3 | 0.35 | 0.71 | 0.67 | 0.43 | 1.57 | 4.53 | 0.91 |
| 8-733-10 | Compare | 12 | - | 2.24 | 1.73 | 2 | 8-733-10G | 5/16 - 3/8 | 1.5 | 0.43 | 0.83 | 0.79 | 0.51 | 1.77 | 4.84 | 0.83 |
| 8-733-13 | Compare | 20 | - | 2.48 | 1.97 | 3.5 | 8-733-13G | 7/16 - 1/2 | 1.89 | 0.51 | 0.98 | 0.98 | 0.59 | 2.13 | 5.59 | 0.98 |
| 8-733-16 | Compare | 27 | 1/2 | 2.99 | 2.24 | 4.9 | 8-733-16G | 9/16 - 5/8 | 2.28 | 0.55 | 1.14 | 1.18 | 0.71 | 2.52 | 6.77 | 1.26 |
| 8-733-19 | Compare | 43 | 9/16 - 5/8 | 3.62 | 2.64 | 7.5 | 8-733-19G | 3/4 | 2.64 | 0.63 | 1.26 | 1.38 | 0.87 | 2.99 | 7.95 | 1.5 |
| 8-733-22 | Compare | 55 | 11/16 - 3/4 | 4.02 | 3.35 | 11.9 | 8-733-22G | 7/8 | 3.15 | 0.79 | 1.5 | 1.61 | 0.94 | 3.5 | 9.25 | 1.77 |
| 8-733-26 | Compare | 76 | 13/16 - 7/8 | 4.49 | 3.74 | 18.7 | 8-733-26G | 1 | 3.78 | 0.91 | 1.73 | 2.01 | 1.14 | 4.02 | 10.55 | 2.05 |
| 8-733-28 | Compare | 92 | 15/16 - 1 | 5 | 4.13 | 25.6 | 8-733-28G | 1 1/8 | 4.13 | 0.98 | 2.01 | 2.2 | 1.26 | 4.61 | 11.81 | 2.24 |
| 8-733-36 | Compare | 136 | 1 1/16 - 1 1/8 | 5.51 | 4.72 | 35.3 | 8-733-36G | 1 1/4 - 1 3/8 | 4.76 | 1.14 | 2.24 | 2.44 | 1.5 | 5 | 13.19 | 2.52 |
| 8-733-38 | Compare | 170 | 1 3/16 - 1 1/4 | 5.98 | 5.24 | 52.9 | 8-733-38G | 1 1/2 | 5.39 | 1.18 | 2.76 | 2.76 | 1.61 | 5.98 | 15.12 | 2.99 |
