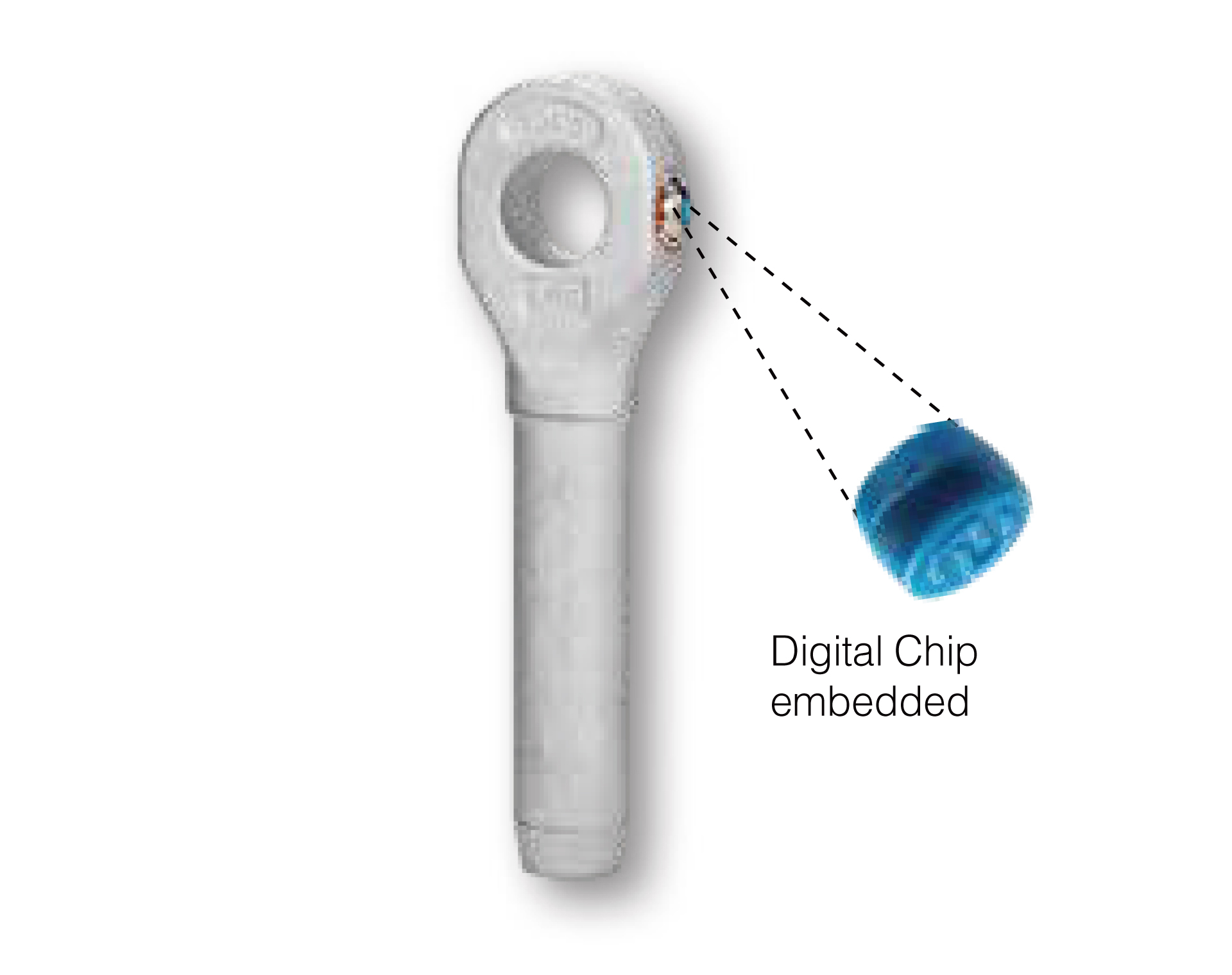

Forged Closed Swage Wire Rope Socket

Item No.8-732

● YOKE 8-732 Closed Swage are forged from
special bar quality carbon steel with very
finest hardness controlled by spheroidize
annealing.
● YOKE Swage properly applied have an
efficiency rating of 100% based on the catalog
strength of wire rope.
● YOKE Swage are recommended for use with
6x19, 6x36, and IWRC wire rope. They are
approved for use with galvanized bridge rope.
● YOKE Swage sockets are not recommended
for use on fiber core or lang lay rope.
● Galvanized finish or self colored.

Compare Datasheet

Metric (mm)
Imperial (inch)

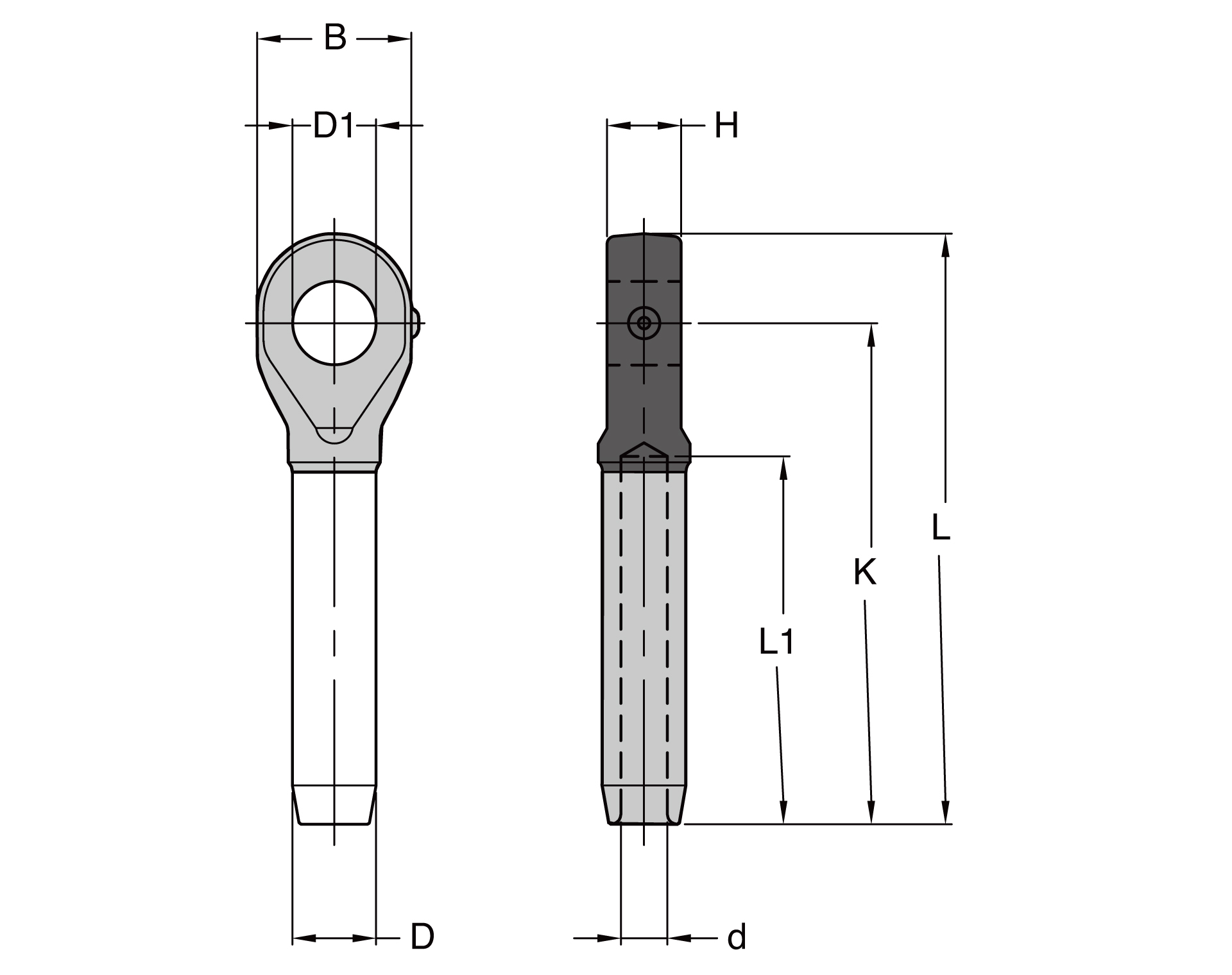

Item NO.	Compare	Dimensions	N.W.	Item No.	Rope Size	Before Swage Dimensions							Max. After Swage Dim.
		H	kg	Galvanized	mm	B	D	D1	d	K	L	L1
8-732-06	Compare	13	0.2	8-732-06G	6 - 7	35	13	19	7	89	110	54	12
8-732-08	Compare	17	0.3	8-732-08G	8	41	20	22	9	114	140	80	18
8-732-10	Compare	17	0.3	8-732-10G	9 - 10	41	20	22	11	114	140	80	18
8-732-11	Compare	22	0.7	8-732-11G	11 - 12	51	25	27	12	146	176	108	23
8-732-13	Compare	22	0.6	8-732-13G	13	51	25	27	14	146	176	108	23
8-732-14	Compare	29	1.4	8-732-14G	14 - 15	61	32	32	16	185	221	135	30
8-732-16	Compare	29	1.3	8-732-16G	16	61	32	32	17	185	221	135	30
8-732-19	Compare	33	2.3	8-732-19G	18 - 20	73	39	36	21	217	259	156	36
8-732-22	Compare	38	3.1	8-732-22G	22 - 23	73	43	43	24	258	304	189	39
8-732-26	Compare	45	4.7	8-732-26G	24 - 25	92	50	52	27	293	342	212	46
8-732-28	Compare	51	6.7	8-732-28G	28	102	57	59	30	323	382	243	52
8-732-32	Compare	57	9.8	8-732-32G	32	114	64	65	34	364	431	270	58
8-732-36	Compare	57	13	8-732-36G	35 - 36	127	71	65	37	402	475	297	65
8-732-38	Compare	64	17.3	8-732-38G	38	140	78	71	41	432	511	315	71
8-732-45	Compare	76	24	8-732-45G	44 - 45	159	86	90	47	508	598	377	78
8-732-50	Compare	83	40.5	8-732-50G	48 - 51	184	100	97	54	584	702	432	90

Item NO.	Compare	Dimensions	N.W.	Item No.	Rope Size	Before Swage Dimensions							Max. After Swage Dim.
		H	lbs	Galvanized	inch	B	D	D1	d	K	L	L1
8-732-06	Compare	0.51	0.4	8-732-06G	1/4	1.38	0.51	0.75	0.28	3.5	4.33	2.13	0.47
8-732-08	Compare	0.67	0.7	8-732-08G	5/16	1.61	0.79	0.87	0.35	4.49	5.51	3.15	0.71
8-732-10	Compare	0.67	0.7	8-732-10G	3/8	1.61	0.79	0.87	0.43	4.49	5.51	3.15	0.71
8-732-11	Compare	0.87	1.5	8-732-11G	7/16	2.01	0.98	1.06	0.47	5.75	6.93	4.25	0.91
8-732-13	Compare	0.87	1.3	8-732-13G	1/2	2.01	0.98	1.06	0.55	5.75	6.93	4.25	0.91
8-732-14	Compare	1.14	3.1	8-732-14G	9/16	2.4	1.26	1.26	0.63	7.28	8.7	5.31	1.18
8-732-16	Compare	1.14	2.9	8-732-16G	5/8	2.4	1.26	1.26	0.67	7.28	8.7	5.31	1.18
8-732-19	Compare	1.3	5.1	8-732-19G	3/4	2.87	1.54	1.42	0.83	8.54	10.2	6.14	1.42
8-732-22	Compare	1.5	6.8	8-732-22G	7/8	3.11	1.69	1.69	0.94	10.16	11.97	7.44	1.54
8-732-26	Compare	1.77	10.4	8-732-26G	1	3.62	1.97	2.05	1.06	11.54	13.46	8.35	1.81
8-732-28	Compare	2.01	14.8	8-732-28G	1 1/8	4.02	2.24	2.32	1.18	12.72	15.04	9.57	2.05
8-732-32	Compare	2.24	21.6	8-732-32G	1 1/4	4.49	2.52	2.56	1.34	14.33	16.97	10.63	2.28
8-732-36	Compare	2.24	28.7	8-732-36G	1 3/8	5	2.8	2.56	1.46	15.83	18.7	11.69	2.56
8-732-38	Compare	2.52	38.1	8-732-38G	1 1/2	5.51	3.07	2.8	1.61	17.01	20.12	12.4	2.8
8-732-45	Compare	2.99	52.9	8-732-45G	1 3/4	6.26	3.39	3.54	1.85	20	23.54	14.84	3.07
8-732-50	Compare	3.27	89.3	8-732-50G	2	7.24	3.94	3.82	2.13	22.99	27.64	17.01	3.54
