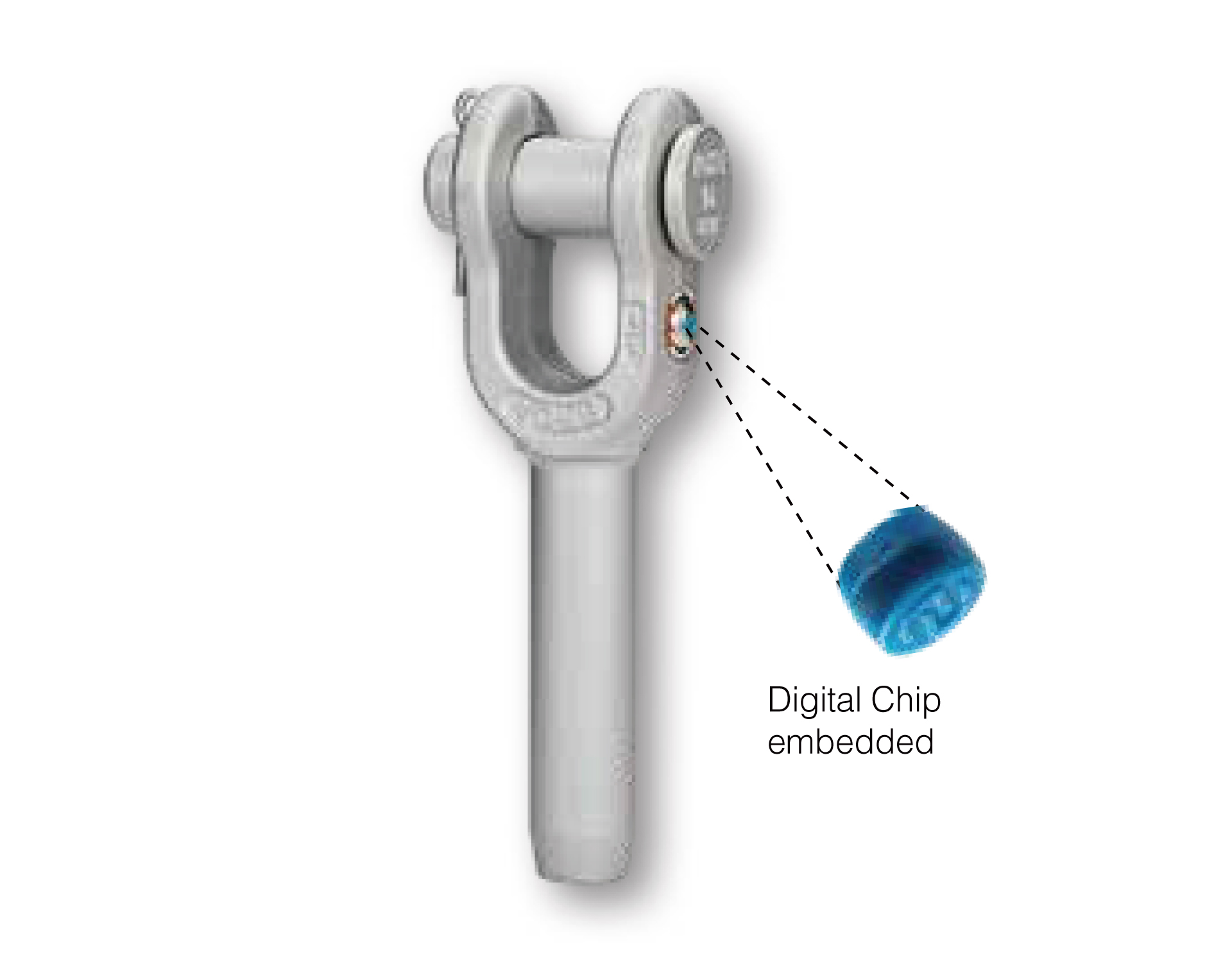

Forged Open Swage Socket with Round Pin
Item No.8-731
● YOKE 8-731 Opened Swage Sockets are forged
from special bar quality carbon steel with very
finest hardness controlled by spheroidize
annealing.
● YOKE Swage Sockets properly applied have an
efficiency rating of 100% based on the catalog
strength of wire rope.
● YOKE Swage Sockets are recommended for use
with 6x19, 6x37, and IWRC wire rope. They are
approved for use with galvanized bridge rope.
● YOKE Swage Sockets are not recommended for
use on fiber core or lang lay rope.
● Galvanized finish or self colored.
from special bar quality carbon steel with very
finest hardness controlled by spheroidize
annealing.
● YOKE Swage Sockets properly applied have an
efficiency rating of 100% based on the catalog
strength of wire rope.
● YOKE Swage Sockets are recommended for use
with 6x19, 6x37, and IWRC wire rope. They are
approved for use with galvanized bridge rope.
● YOKE Swage Sockets are not recommended for
use on fiber core or lang lay rope.
● Galvanized finish or self colored.

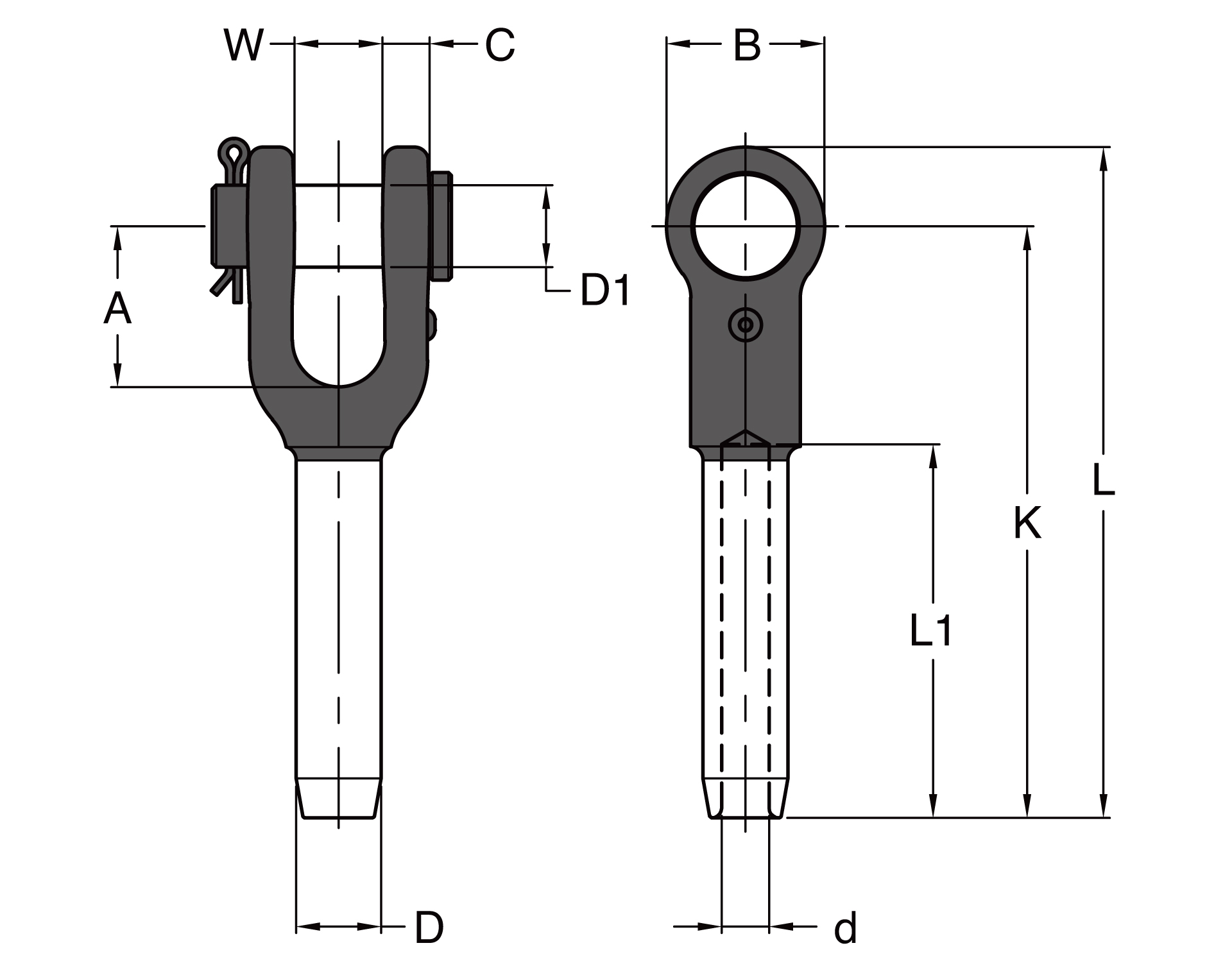

| Item NO. | Compare | N.W. | Item No. | Rope Size | Before Swage Dimensions | Max. After Swage Dim. | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kg | Galvanized | mm | A | B | C | D | D1 | d | K | L | L1 | W | |||
| 8-731-06 | Compare | 0.3 | 8-731-06G | 6 - 7 | 38 | 35 | 9 | 13 | 18 | 7 | 102 | 122 | 54 | 17 | 12 |
| 8-731-08 | Compare | 0.7 | 8-731-08G | 8 | 45 | 42 | 12 | 20 | 21 | 9 | 135 | 159 | 81 | 20 | 18 |
| 8-731-10 | Compare | 0.6 | 8-731-10G | 9 - 10 | 45 | 42 | 12 | 20 | 21 | 11 | 135 | 159 | 81 | 20 | 18 |
| 8-731-11 | Compare | 1.2 | 8-731-11G | 11 - 12 | 50 | 50 | 14 | 25 | 25 | 12 | 174 | 199 | 108 | 25 | 23 |
| 8-731-13 | Compare | 1.1 | 8-731-13G | 13 | 50 | 50 | 14 | 25 | 25 | 14 | 174 | 199 | 108 | 25 | 23 |
| 8-731-14 | Compare | 2.1 | 8-731-14G | 14 - 15 | 57 | 60 | 17 | 32 | 30 | 16 | 210 | 240 | 135 | 31 | 30 |
| 8-731-16 | Compare | 2.1 | 8-731-16G | 16 | 57 | 60 | 17 | 32 | 30 | 17 | 210 | 240 | 135 | 31 | 30 |
| 8-731-19 | Compare | 3.8 | 8-731-19G | 18 - 20 | 70 | 70 | 20 | 39 | 35 | 21 | 256 | 295 | 156 | 38 | 36 |
| 8-731-22 | Compare | 5.4 | 8-731-22G | 22 - 23 | 82 | 80 | 24 | 43 | 41 | 24 | 300 | 340 | 189 | 45 | 40 |
| 8-731-26 | Compare | 8.1 | 8-731-26G | 24 - 25 | 98 | 100 | 26 | 50 | 51 | 27 | 345 | 395 | 212 | 50 | 46 |
| 8-731-28 | Compare | 12.5 | 8-731-28G | 28 | 108 | 103 | 30 | 57 | 57 | 30 | 383 | 442 | 243 | 57 | 52 |
| 8-731-32 | Compare | 17.5 | 8-731-32G | 32 | 120 | 113 | 34 | 64 | 64 | 34 | 419 | 484 | 270 | 63 | 59 |
| 8-731-36 | Compare | 20.9 | 8-731-36G | 35 - 36 | 132 | 127 | 35 | 71 | 64 | 37 | 463 | 534 | 297 | 64 | 65 |
| 8-731-38 | Compare | 30 | 8-731-38G | 38 | 146 | 140 | 43 | 78 | 70 | 41 | 502 | 581 | 315 | 76 | 72 |
| 8-731-45 | Compare | 40.3 | 8-731-45G | 44 - 45 | 171 | 170 | 54 | 86 | 89 | 47 | 584 | 674 | 378 | 89 | 78 |
| 8-731-50 | Compare | 66.4 | 8-731-50G | 48 - 51 | 203 | 203 | 60 | 100 | 95 | 54 | 682 | 798 | 433 | 101 | 91 |
| Item NO. | Compare | N.W. | Item No. | Rope Size | Before Swage Dimensions | Max. After Swage Dim. | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lbs | Galvanized | inch | A | B | C | D | D1 | d | K | L | L1 | W | |||
| 8-731-06 | Compare | 0.7 | 8-731-06G | 1/4 | 1.5 | 1.38 | 0.35 | 0.51 | 0.71 | 0.28 | 4.02 | 4.8 | 2.13 | 0.67 | 0.47 |
| 8-731-08 | Compare | 1.5 | 8-731-08G | 5/16 | 1.77 | 1.65 | 0.47 | 0.79 | 0.83 | 0.35 | 5.31 | 6.26 | 3.19 | 0.79 | 0.71 |
| 8-731-10 | Compare | 1.3 | 8-731-10G | 3/8 | 1.77 | 1.65 | 0.47 | 0.79 | 0.83 | 0.43 | 5.31 | 6.26 | 3.19 | 0.79 | 0.71 |
| 8-731-11 | Compare | 2.6 | 8-731-11G | 7/16 | 1.97 | 1.97 | 0.55 | 0.98 | 0.98 | 0.47 | 6.85 | 7.83 | 4.25 | 0.98 | 0.91 |
| 8-731-13 | Compare | 2.4 | 8-731-13G | 1/2 | 1.97 | 1.97 | 0.55 | 0.98 | 0.98 | 0.55 | 6.85 | 7.83 | 4.25 | 0.98 | 0.91 |
| 8-731-14 | Compare | 4.6 | 8-731-14G | 9/16 | 2.24 | 2.36 | 0.67 | 1.26 | 1.18 | 0.63 | 8.27 | 9.45 | 5.31 | 1.22 | 1.18 |
| 8-731-16 | Compare | 4.6 | 8-731-16G | 5/8 | 2.24 | 2.36 | 0.67 | 1.26 | 1.18 | 0.67 | 8.27 | 9.45 | 5.31 | 1.22 | 1.18 |
| 8-731-19 | Compare | 8.4 | 8-731-19G | 3/4 | 2.76 | 2.76 | 0.79 | 1.54 | 1.38 | 0.83 | 10.08 | 11.61 | 6.14 | 1.5 | 1.42 |
| 8-731-22 | Compare | 11.9 | 8-731-22G | 7/8 | 3.23 | 3.15 | 0.94 | 1.69 | 1.61 | 0.94 | 11.81 | 13.39 | 7.44 | 1.77 | 1.57 |
| 8-731-26 | Compare | 17.9 | 8-731-26G | 1 | 3.86 | 3.94 | 1.02 | 1.97 | 2.01 | 1.06 | 13.58 | 15.55 | 8.35 | 1.97 | 1.81 |
| 8-731-28 | Compare | 27.6 | 8-731-28G | 1 1/8 | 4.25 | 4.06 | 1.18 | 2.24 | 2.24 | 1.18 | 15.08 | 17.4 | 9.57 | 2.24 | 2.05 |
| 8-731-32 | Compare | 38.6 | 8-731-32G | 1 1/4 | 4.72 | 4.45 | 1.34 | 2.52 | 2.52 | 1.34 | 16.5 | 19.06 | 10.63 | 2.48 | 2.32 |
| 8-731-36 | Compare | 46.1 | 8-731-36G | 1 3/8 | 5.2 | 5 | 1.38 | 2.8 | 2.52 | 1.46 | 18.23 | 21.02 | 11.69 | 2.52 | 2.56 |
| 8-731-38 | Compare | 66.1 | 8-731-38G | 1 1/2 | 5.75 | 5.51 | 1.69 | 3.07 | 2.76 | 1.61 | 19.76 | 22.87 | 12.4 | 2.99 | 2.83 |
| 8-731-45 | Compare | 88.8 | 8-731-45G | 1 3/4 | 6.73 | 6.69 | 2.13 | 3.39 | 3.5 | 1.85 | 22.99 | 26.54 | 14.88 | 3.5 | 3.07 |
| 8-731-50 | Compare | 146.4 | 8-731-50G | 2 | 7.99 | 7.99 | 2.36 | 3.94 | 3.74 | 2.13 | 26.85 | 31.42 | 17.05 | 3.98 | 3.58 |
