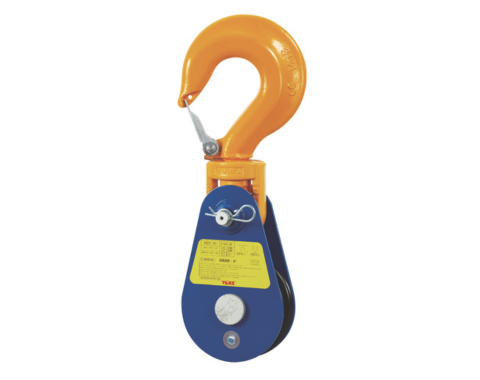

Super Snatch Block with Hook
Item No.8-552
● YOKE Super Snatch Blocks are manufactured from high-quality high-tensile steel
● Available with a capacity of 20 tonnes, suitable for wire rope sizes 1" to 1-1/8"
● Each block is clearly marked with part number, wire rope size, and Working Load Limit (WLL)
● Permanent traceability code linking directly to test certificates for easy verification
● Supplied with bronze bushings and pressure lubrication fittings
● Meets or exceeds all requirements of ASME B30.26
● Safety factor: 4:1
● Fatigue rated
● Each component is marked with a batch number, providing full traceability back to raw materials
● Available with a capacity of 20 tonnes, suitable for wire rope sizes 1" to 1-1/8"
● Each block is clearly marked with part number, wire rope size, and Working Load Limit (WLL)
● Permanent traceability code linking directly to test certificates for easy verification
● Supplied with bronze bushings and pressure lubrication fittings
● Meets or exceeds all requirements of ASME B30.26
● Safety factor: 4:1
● Fatigue rated
● Each component is marked with a batch number, providing full traceability back to raw materials

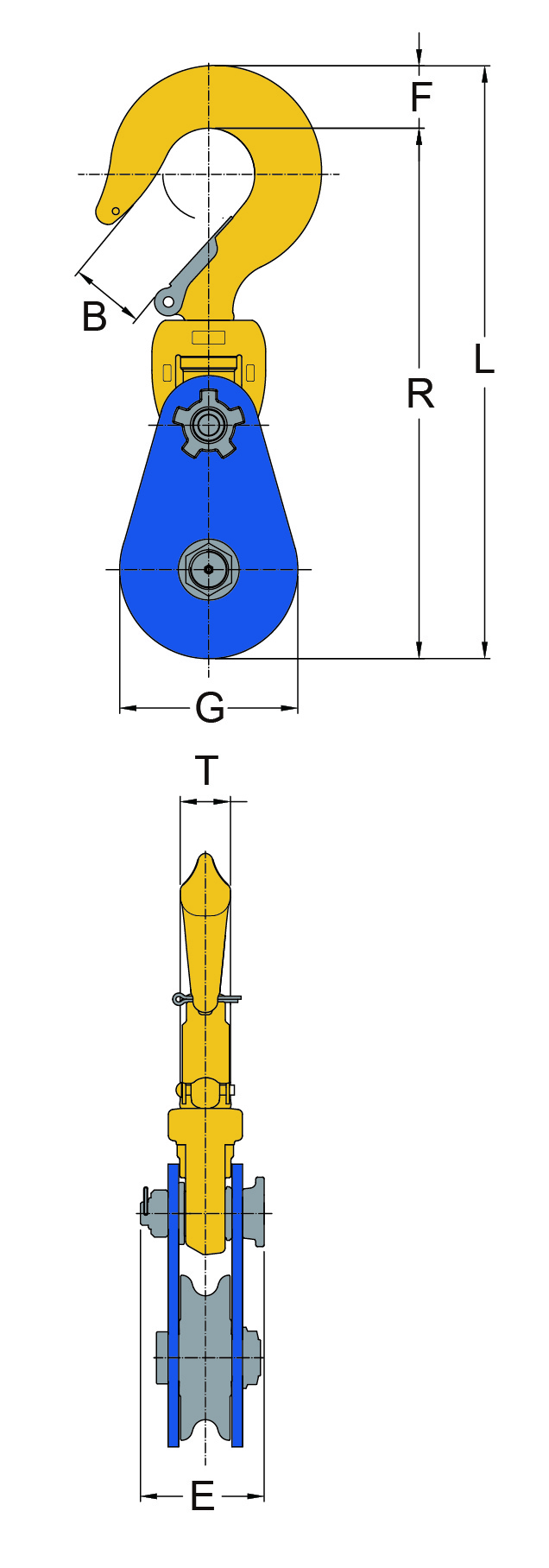

| Item NO. | Compare | Sheave Dia. | Bearing Type | Working Load Limit | Dimensions | N.W. | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | tonnes | B | E | F | G | L | R | T | kg | |||
| 8-552-20 | Compare | 203 | **BB | 20 | 79 | 157 | 76 | 216 | 719 | 643 | 61 | 41 |
| 8-552-2010 | Compare | 254 | BB | 20 | 79 | 157 | 76 | 280 | 826 | 750 | 61 | 53 |
| 8-552-2012-25 | Compare | 305 | BB | 20 | 79 | 157 | 76 | 330 | 881 | 805 | 61 | 63 |
| 8-552-2012-29 | Compare | 305 | BB | 20 | 79 | 157 | 76 | 330 | 881 | 805 | 61 | 63 |
| Item NO. | Compare | Sheave Dia. | Bearing Type | Wire Rope Size | Working Load Limit | Dimensions | N.W. | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | inch | tonnes | B | E | F | G | L | R | T | lbs | |||
| 8-552-20 | Compare | 8 | **BB | 1-1 1/8 | 20 | 3.11 | 6.16 | 2.99 | 8.5 | 28.31 | 25.31 | 2.4 | 90 |
| 8-552-2010 | Compare | 10 | BB | 1-1 1/8 | 20 | 3.11 | 6.16 | 2.99 | 11.02 | 32.52 | 29.53 | 2.4 | 117 |
| 8-552-2012-25 | Compare | 12 | BB | 1 | 20 | 3.11 | 6.16 | 2.99 | 12.99 | 34.69 | 31.69 | 2.4 | 139 |
| 8-552-2012-29 | Compare | 12 | BB | 1 1/8 | 20 | 3.11 | 6.16 | 2.99 | 12.99 | 34.69 | 31.69 | 2.4 | 139 |
