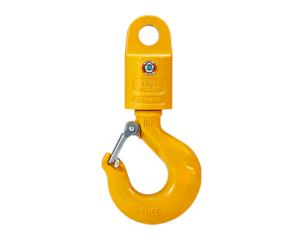

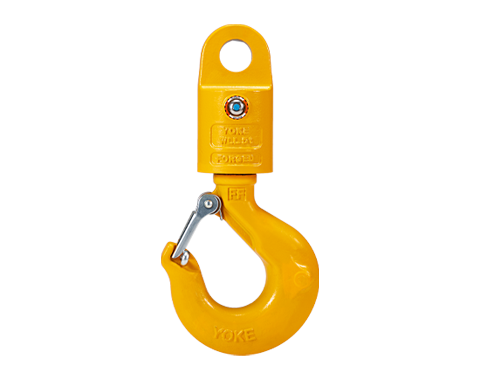

Eye & Hook
Item No.8-327
● YOKE’s Thrust Roller Bearing Swivels are manufactured
using the highest grade of material available.
● YOKE’s Thrust Roller Bearing Swivels are designed with
a safety factor of 5:1.
● YOKE’s Thrust Roller Bearing Swivels are available in
sizes from 3 to 10 tons.
● YOKE’s Thrust Roller Bearing Swivels are available for
wire line 13mm to 22mm.
● YOKE's Thrust Roller Bearing Swivels are coated for
corrosion resistance and longer service life.
● YOKE’s Thrust Roller Bearing Swivels are manufactured
with grease fitting for superior performance.
● YOKE’s Thrust Roller Bearing Swivels are designed for
low starting torque and high rotation speed.
● All parts of YOKE’s Thrust Roller Bearing Swivels are
100% magnaflux crack detected.
● 20,000 cycle fatigue rate to 1.5 times the working load
limit.
● All parts of YOKE’s Thrust Roller Bearing Swivels come
with a batch number for quality certification and
traceability.
using the highest grade of material available.
● YOKE’s Thrust Roller Bearing Swivels are designed with
a safety factor of 5:1.
● YOKE’s Thrust Roller Bearing Swivels are available in
sizes from 3 to 10 tons.
● YOKE’s Thrust Roller Bearing Swivels are available for
wire line 13mm to 22mm.
● YOKE's Thrust Roller Bearing Swivels are coated for
corrosion resistance and longer service life.
● YOKE’s Thrust Roller Bearing Swivels are manufactured
with grease fitting for superior performance.
● YOKE’s Thrust Roller Bearing Swivels are designed for
low starting torque and high rotation speed.
● All parts of YOKE’s Thrust Roller Bearing Swivels are
100% magnaflux crack detected.
● 20,000 cycle fatigue rate to 1.5 times the working load
limit.
● All parts of YOKE’s Thrust Roller Bearing Swivels come
with a batch number for quality certification and
traceability.

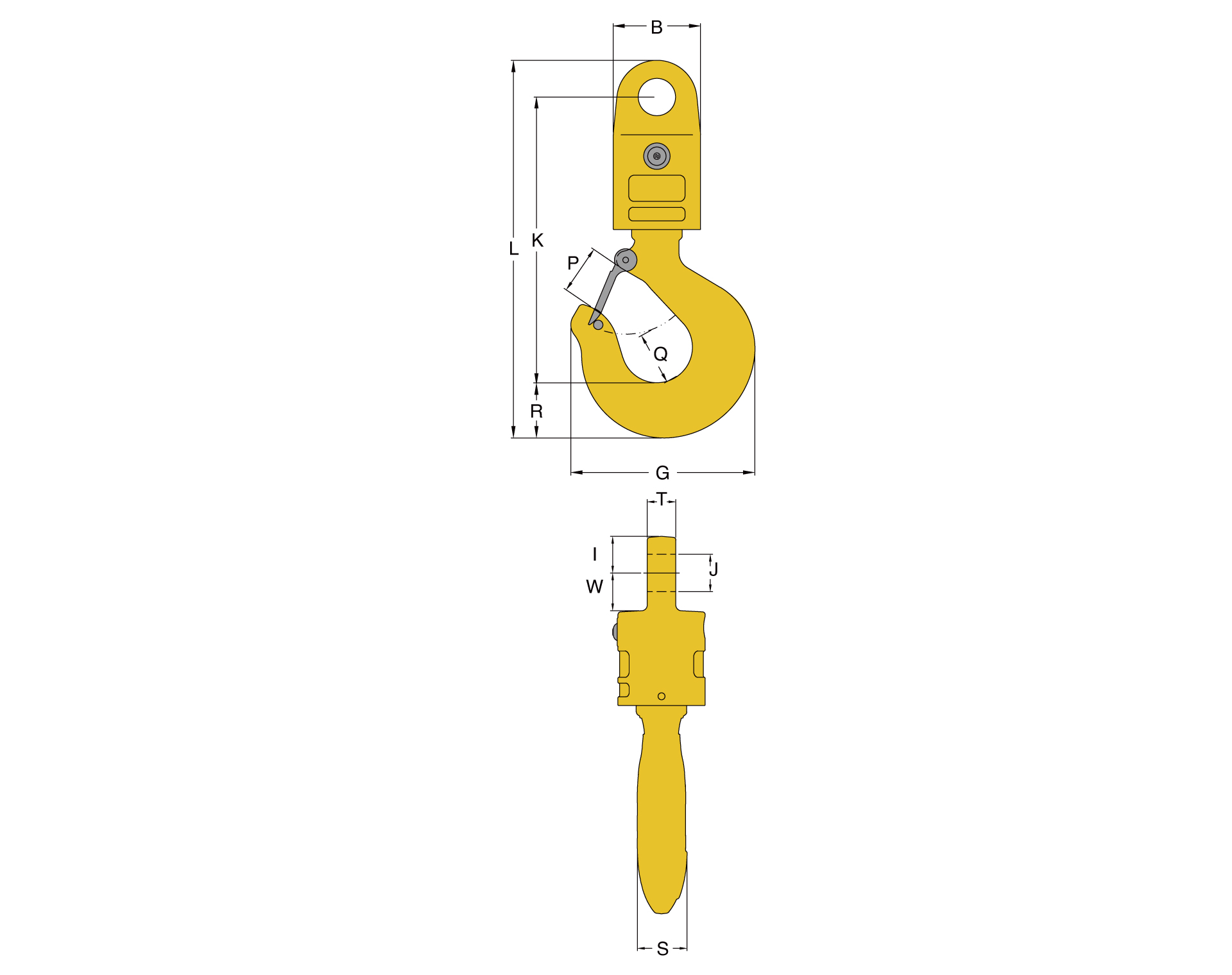

| Item NO. | Compare | Working Load Limit | For Grade 80 Chain | Dimensions | N.W. | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | mm | B | G | I | J | K | L | P | Q | R | S | T | W | kg | ||
| 8-327-03 | Compare | 3.00 | 13 | 70 | 122 | 32 | 26.0 | 208 | 277 | 36 | 38 | 36 | 33 | 19 | 30.0 | 4.0 |
| 8-327-05 | Compare | 5.00 | 16 | 76 | 160 | 32 | 32.5 | 249 | 329 | 43 | 49 | 47 | 42 | 25 | 33.0 | 6.7 |
| 8-327-085 | Compare | 8.50 | 19 | 102 | 196 | 38 | 35.8 | 300 | 396 | 61 | 62 | 58 | 48 | 32 | 42.6 | 12.6 |
| 8-327-10 | Compare | 10.00 | 22 | 114 | 221 | 48 | 43.0 | 350 | 464 | 62 | 65 | 66 | 56 | 43 | 72.0 | 19.5 |
| Item NO. | Compare | Working Load Limit | For Grade 80 Chain | Dimensions | N.W. | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | inch | B | G | I | J | K | L | P | Q | R | S | T | W | lbs | ||
| 8-327-03 | Compare | 3.00 | 1/2 | 2.76 | 4.80 | 1.26 | 1.02 | 8.17 | 10.92 | 1.34 | 1.46 | 1.50 | 1.26 | 0.75 | 1.18 | 8.7 |
| 8-327-05 | Compare | 5.00 | 5/8 | 2.99 | 6.30 | 1.26 | 1.28 | 9.80 | 12.95 | 1.69 | 1.81 | 1.89 | 1.38 | 0.98 | 1.30 | 14.7 |
| 8-327-085 | Compare | 8.50 | 3/4 | 4.02 | 7.72 | 1.50 | 1.41 | 11.82 | 15.59 | 2.40 | 2.44 | 2.28 | 1.85 | 1.26 | 1.68 | 27.7 |
| 8-327-10 | Compare | 10.00 | 7/8 | 4.49 | 8.70 | 1.89 | 1.69 | 13.76 | 18.26 | 2.83 | 2.40 | 2.60 | 2.24 | 1.69 | 2.83 | 42.8 |
