Eye & Jaw
Item No.8-325
● YOKE’s Thrust Roller Bearing Swivels are manufactured
using the highest grade of material available.
● YOKE’s Thrust Roller Bearing Swivels are designed with
a safety factor of 5:1.
● YOKE’s Thrust Roller Bearing Swivels are available in
sizes from 3 to 10 tons.
● YOKE’s Thrust Roller Bearing Swivels are available for
wire line 13mm to 22mm.
● YOKE's Thrust Roller Bearing Swivels are coated for
corrosion resistance and longer service life.
● YOKE’s Thrust Roller Bearing Swivels are manufactured
with grease fitting for superior performance.
● YOKE’s Thrust Roller Bearing Swivels are designed for
low starting torque and high rotation speed.
● All parts of YOKE’s Thrust Roller Bearing Swivels are
100% magnaflux crack detected.
● 20,000 cycle fatigue rate to 1.5 times the working load
limit.
● All parts of YOKE’s Thrust Roller Bearing Swivels come
with a batch number for quality certification and
traceability.
using the highest grade of material available.
● YOKE’s Thrust Roller Bearing Swivels are designed with
a safety factor of 5:1.
● YOKE’s Thrust Roller Bearing Swivels are available in
sizes from 3 to 10 tons.
● YOKE’s Thrust Roller Bearing Swivels are available for
wire line 13mm to 22mm.
● YOKE's Thrust Roller Bearing Swivels are coated for
corrosion resistance and longer service life.
● YOKE’s Thrust Roller Bearing Swivels are manufactured
with grease fitting for superior performance.
● YOKE’s Thrust Roller Bearing Swivels are designed for
low starting torque and high rotation speed.
● All parts of YOKE’s Thrust Roller Bearing Swivels are
100% magnaflux crack detected.
● 20,000 cycle fatigue rate to 1.5 times the working load
limit.
● All parts of YOKE’s Thrust Roller Bearing Swivels come
with a batch number for quality certification and
traceability.

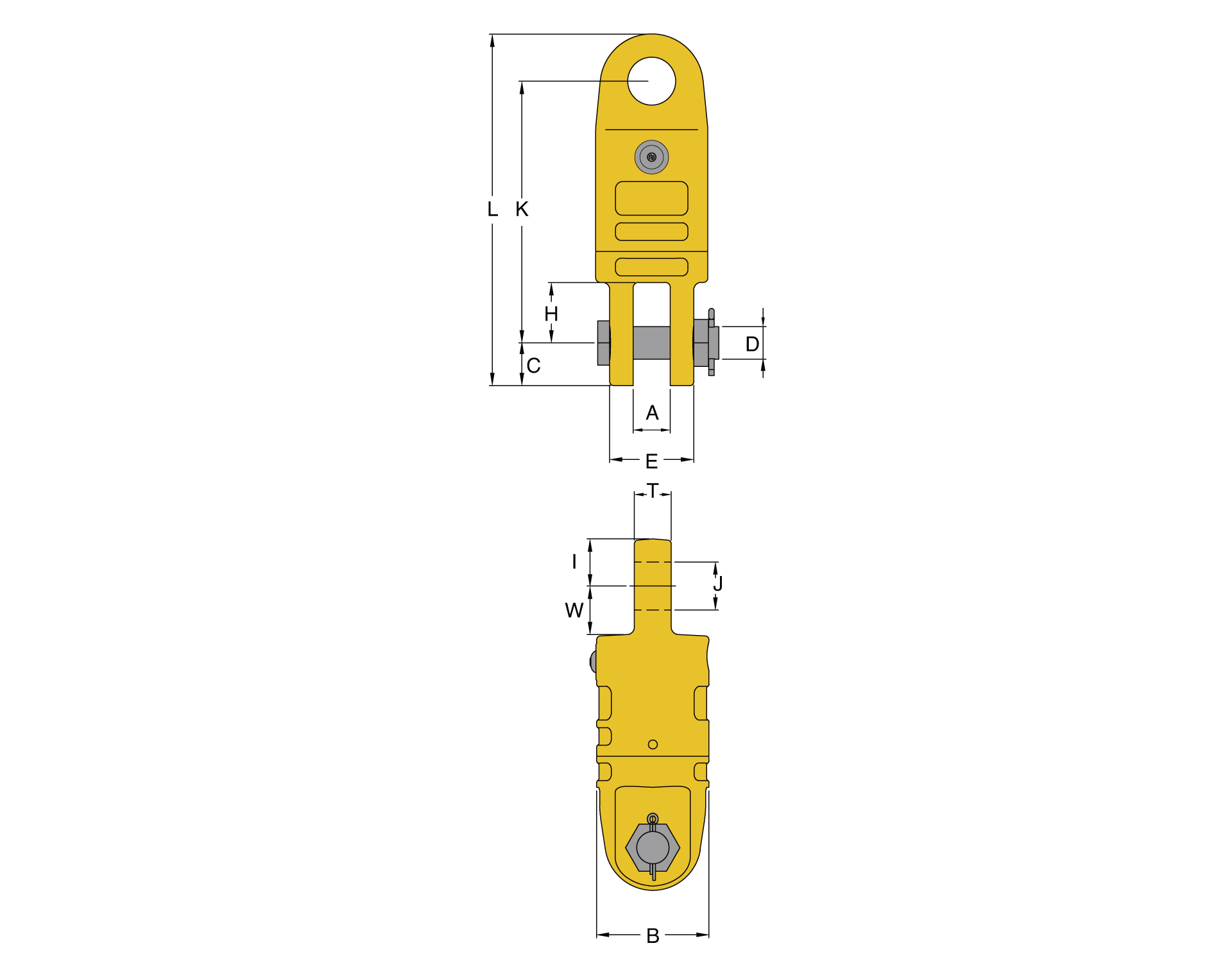

| Item NO. | Compare | Working Load Limit | For Grade 80 Chain | Dimensions | N.W. | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | mm | A | B | C | D | H | I | J | K | L | T | W | kg | ||
| 8-325-03 | Compare | 3.00 | 13 | 22.5 | 70 | 25.5 | 19.0 | 33.5 | 32 | 26.0 | 152 | 210 | 19 | 30.0 | 3.5 |
| 8-325-05 | Compare | 5.00 | 16 | 25.0 | 76 | 29.0 | 22.0 | 41.0 | 32 | 32.5 | 178 | 239 | 25 | 33.0 | 5.2 |
| 8-325-085 | Compare | 8.50 | 19 | 40.0 | 102 | 35.0 | 25.4 | 54.0 | 38 | 35.8 | 216 | 289 | 32 | 42.6 | 10.2 |
| 8-325-10 | Compare | 10.00 | 22 | 44.0 | 114 | 44.0 | 38.0 | 89.0 | 48 | 43.0 | 299 | 391 | 43 | 72.0 | 18.3 |
| Item NO. | Compare | Working Load Limit | For Grade 80 Chain | Dimensions | N.W. | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | inch | A | B | C | D | H | I | J | K | L | T | W | lbs | ||
| 8-325-03 | Compare | 3.00 | 1/2 | 0.89 | 2.76 | 1.00 | 0.75 | 1.32 | 1.26 | 1.02 | 5.98 | 8.25 | 0.75 | 1.18 | 7.8 |
| 8-325-05 | Compare | 5.00 | 5/8 | 0.98 | 2.99 | 1.14 | 0.87 | 1.61 | 1.26 | 1.28 | 6.99 | 9.39 | 0.75 | 1.30 | 11.4 |
| 8-325-085 | Compare | 8.50 | 3/4 | 1.57 | 4.02 | 1.38 | 1.00 | 2.13 | 1.50 | 1.41 | 8.48 | 11.36 | 1.26 | 1.68 | 22.5 |
| 8-325-10 | Compare | 10.00 | 7/8 | 1.73 | 4.49 | 1.73 | 1.50 | 3.50 | 1.89 | 1.69 | 11.77 | 15.39 | 1.69 | 2.83 | 40.3 |
