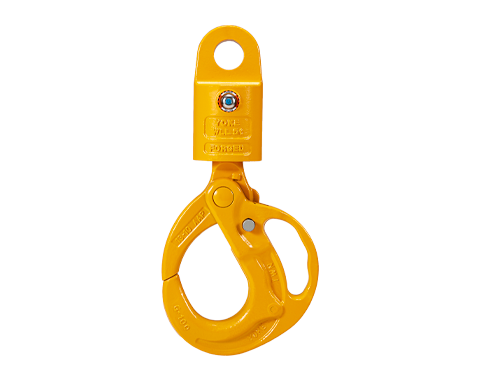

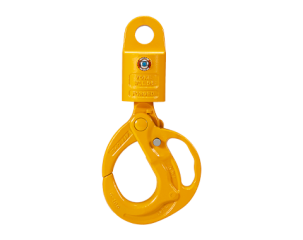

Eye & Safe Locking Hook
Item No.8-321
● YOKE’s Thrust Roller Bearing Swivels are manufactured
using the highest grade of material available.
● YOKE’s Thrust Roller Bearing Swivels are designed with
a safety factor of 5:1.
● YOKE’s Thrust Roller Bearing Swivels are available in
sizes from 3 to 10 tons.
● YOKE’s Thrust Roller Bearing Swivels are available for
wire line 13mm to 22mm.
● YOKE's Thrust Roller Bearing Swivels are coated for
corrosion resistance and longer service life.
● YOKE’s Thrust Roller Bearing Swivels are manufactured
with grease fitting for superior performance.
● YOKE’s Thrust Roller Bearing Swivels are designed for
low starting torque and high rotation speed.
● All parts of YOKE’s Thrust Roller Bearing Swivels are
100% magnaflux crack detected.
● 20,000 cycle fatigue rate to 1.5 times the working load
limit.
● All parts of YOKE’s Thrust Roller Bearing Swivels come
with a batch number for quality certification and
traceability.
using the highest grade of material available.
● YOKE’s Thrust Roller Bearing Swivels are designed with
a safety factor of 5:1.
● YOKE’s Thrust Roller Bearing Swivels are available in
sizes from 3 to 10 tons.
● YOKE’s Thrust Roller Bearing Swivels are available for
wire line 13mm to 22mm.
● YOKE's Thrust Roller Bearing Swivels are coated for
corrosion resistance and longer service life.
● YOKE’s Thrust Roller Bearing Swivels are manufactured
with grease fitting for superior performance.
● YOKE’s Thrust Roller Bearing Swivels are designed for
low starting torque and high rotation speed.
● All parts of YOKE’s Thrust Roller Bearing Swivels are
100% magnaflux crack detected.
● 20,000 cycle fatigue rate to 1.5 times the working load
limit.
● All parts of YOKE’s Thrust Roller Bearing Swivels come
with a batch number for quality certification and
traceability.

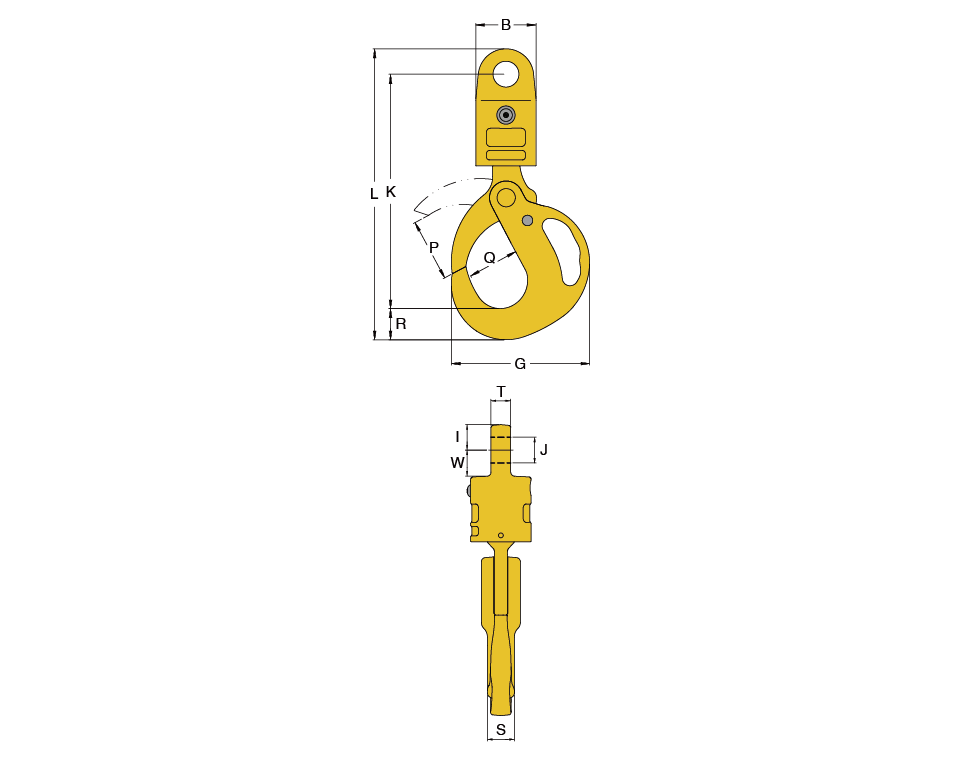

| Item NO. | Compare | Working Load Limit | For Grade 80 Chain | Dimensions | N.W. | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | mm | B | G | I | J | K | L | P | Q | R | S | T | W | kg | ||
| 8-321-03 | Compare | 3.00 | 13 | 70 | 156 | 32 | 26.0 | 240 | 303 | 47 | 49 | 31 | 27 | 19 | 30 | 4.0 |
| 8-321-05 | Compare | 5.00 | 16 | 76 | 174 | 32 | 32.5 | 295 | 366 | 80 | 64 | 39 | 34 | 25 | 33 | 7.0 |
| 8-321-085 | Compare | 8.50 | 19 | 102 | 213 | 38 | 36.0 | 366 | 451 | 113 | 78 | 47 | 39 | 32 | 43 | 12.7 |
| 8-321-10 | Compare | 10.00 | 22 | 114 | 251 | 48 | 43.0 | 453 | 557 | 132 | 92 | 56 | 54 | 43 | 72 | 21.6 |
| Item NO. | Compare | Working Load Limit | For Grade 80 Chain | Dimensions | N.W. | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | inch | B | G | I | J | K | L | P | Q | R | S | T | W | lbs | ||
| 8-321-03 | Compare | 3.00 | 1/2 | 2.76 | 5.39 | 1.26 | 1.02 | 9.43 | 11.92 | 2.80 | 1.93 | 1.22 | 1.06 | 0.75 | 1.18 | 8.8 |
| 8-321-05 | Compare | 5.00 | 5/8 | 2.99 | 6.85 | 1.26 | 1.28 | 11.61 | 14.42 | 3.15 | 2.52 | 1.54 | 1.34 | 0.98 | 1.30 | 15.3 |
| 8-321-085 | Compare | 8.50 | 3/4 | 4.02 | 8.35 | 1.50 | 1.41 | 14.25 | 17.62 | 4.49 | 3.07 | 1.85 | 1.54 | 1.26 | 1.68 | 28.0 |
| 8-321-10 | Compare | 10.00 | 7/8 | 4.49 | 9.88 | 1.89 | 1.69 | 17.70 | 21.81 | 5.00 | 3.62 | 2.17 | 2.13 | 1.69 | 2.83 | 47.5 |
