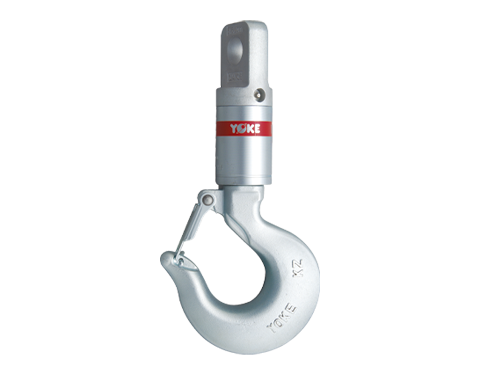

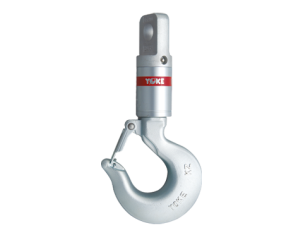

Angular Contact Bearing Swivels - Eye + Hook
Item No.8-307
● YOKE Swivels are manufactured using the
highest grade of material available.
● YOKE Swivels are designed with a safety
factor of 5:1.
● YOKE Swivels are available in sizes from 0.75 tonnes to
25 tonnes.
● YOKE Swivels are available for wire lines 1/4" to 1 1/4".
● YOKE Swivels are zinc plated for corrosion
resistance and longer life.
● YOKE Swivels are manufactured with grease
fittings for superior performance.
● YOKE Swivels are designed for low starting
torque and high rotation speed.
● All Swivels parts are 100% magnaflux crack
detected.
● 20,000 cycle fatigue rate to 1.5 times working
load limit.
● All parts with batch number for quality
certified and traceability.
highest grade of material available.
● YOKE Swivels are designed with a safety
factor of 5:1.
● YOKE Swivels are available in sizes from 0.75 tonnes to
25 tonnes.
● YOKE Swivels are available for wire lines 1/4" to 1 1/4".
● YOKE Swivels are zinc plated for corrosion
resistance and longer life.
● YOKE Swivels are manufactured with grease
fittings for superior performance.
● YOKE Swivels are designed for low starting
torque and high rotation speed.
● All Swivels parts are 100% magnaflux crack
detected.
● 20,000 cycle fatigue rate to 1.5 times working
load limit.
● All parts with batch number for quality
certified and traceability.

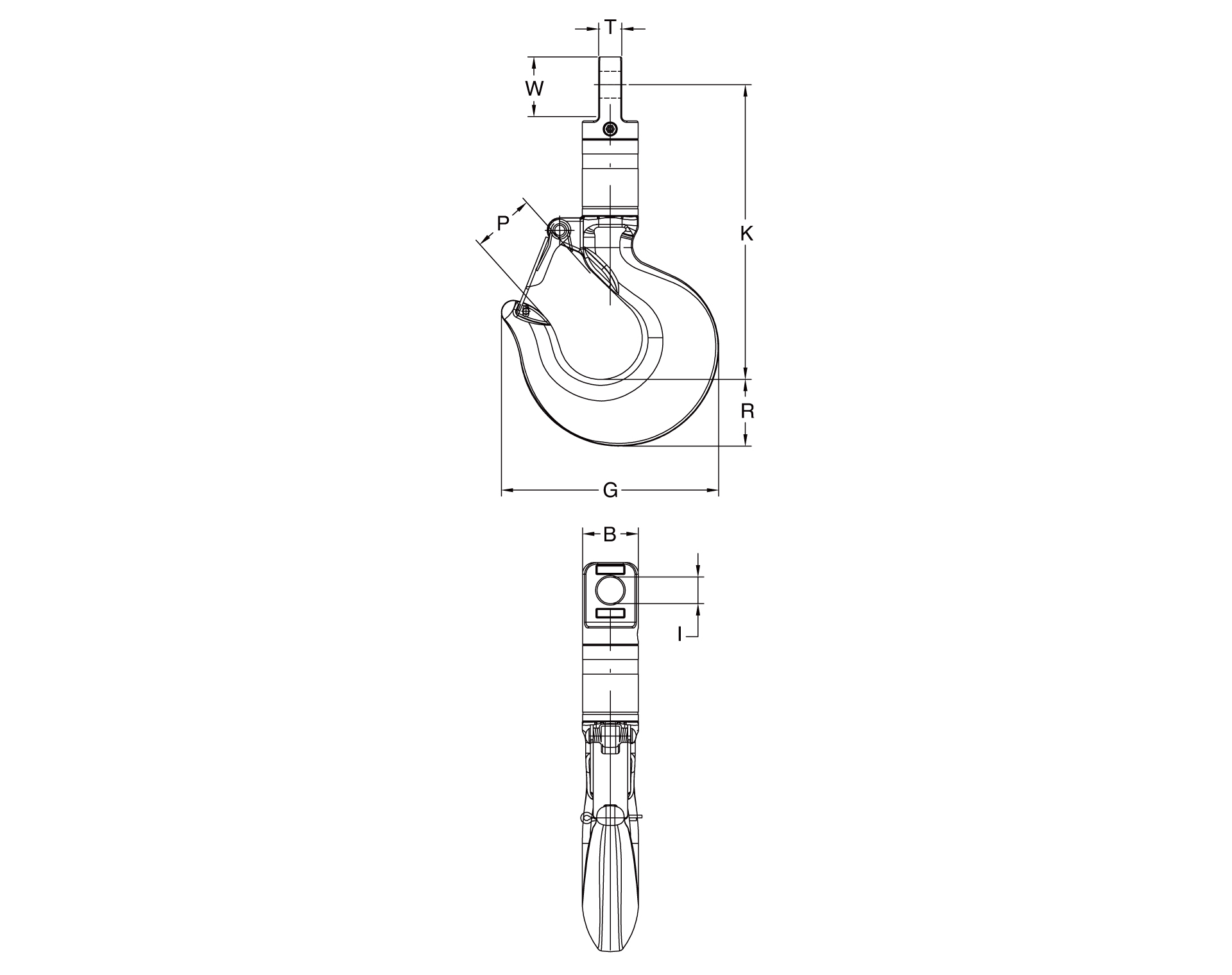

| Item NO. | Compare | Working Load Limit | For Grade 80 Chain | Dimensions | N.W. | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | mm | B | G | I | K | P | R | T | W | kg | ||
| 8-307-0075 | Compare | 0.75 | 6 | 32 | 80 | 18 | 157 | 25 | 21 | 10 | 40 | 0.7 |
| 8-307-015 | Compare | 1.5 | 10 | 41 | 102 | 16 | 163 | 30 | 29 | 13 | 34 | 1.3 |
| 8-307-03 | Compare | 3 | 13 | 51 | 122 | 25 | 223 | 36 | 36 | 19 | 47 | 2.9 |
| 8-307-05 | Compare | 5 | 16 | 64 | 160 | 30 | 278 | 43 | 47 | 25 | 61 | 5.7 |
| 8-307-085 | Compare | 8.5 | 19 | 76 | 221 | 38 | 331 | 62 | 66 | 32 | 78 | 10.6 |
| 8-307-10 | Compare | 10 | 22 | 102 | 277 | 46 | 441 | 81 | 76 | 44 | 121 | 23.5 |
| 8-307-15 | Compare | 15 | 25 | 108 | 277 | 54 | 485 | 81 | 76 | 49 | 124 | 28.9 |
| 8-307-25 | Compare | 25 | 32 | 132 | 353 | 66 | 583 | 83 | 92 | 59 | 145 | 54.5 |
| Item NO. | Compare | Working Load Limit | For Grade 80 Chain | Dimensions | N.W. | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | inch | B | G | I | K | P | R | T | W | lbs | ||
| 8-307-0075 | Compare | 0.75 | 1/4 | 1.26 | 3.15 | 0.71 | 6.18 | 0.98 | 0.83 | 0.39 | 1.57 | 1.5 |
| 8-307-015 | Compare | 1.5 | 3/8 | 1.61 | 4.02 | 0.63 | 6.42 | 1.18 | 1.14 | 0.5 | 1.32 | 2.9 |
| 8-307-03 | Compare | 3 | 1/2 | 2.01 | 4.8 | 1 | 8.8 | 1.42 | 1.42 | 0.75 | 1.85 | 6.4 |
| 8-307-05 | Compare | 5 | 5/8 | 2.52 | 6.31 | 1.19 | 10.94 | 1.69 | 1.85 | 1 | 2.42 | 12.6 |
| 8-307-085 | Compare | 8.5 | 3/4 | 2.99 | 8.7 | 1.5 | 13.03 | 2.44 | 2.6 | 1.25 | 3.06 | 23.3 |
| 8-307-10 | Compare | 10 | 7/8 | 4.02 | 10.91 | 1.81 | 17.34 | 3.19 | 2.99 | 1.73 | 4.76 | 51.8 |
| 8-307-15 | Compare | 15 | 1 | 4.25 | 10.91 | 2.13 | 19.09 | 3.19 | 2.99 | 1.93 | 4.88 | 63.7 |
| 8-307-25 | Compare | 25 | 1 1/4 | 5.2 | 13.9 | 2.6 | 22.95 | 3.27 | 3.62 | 2.32 | 5.71 | 120 |
