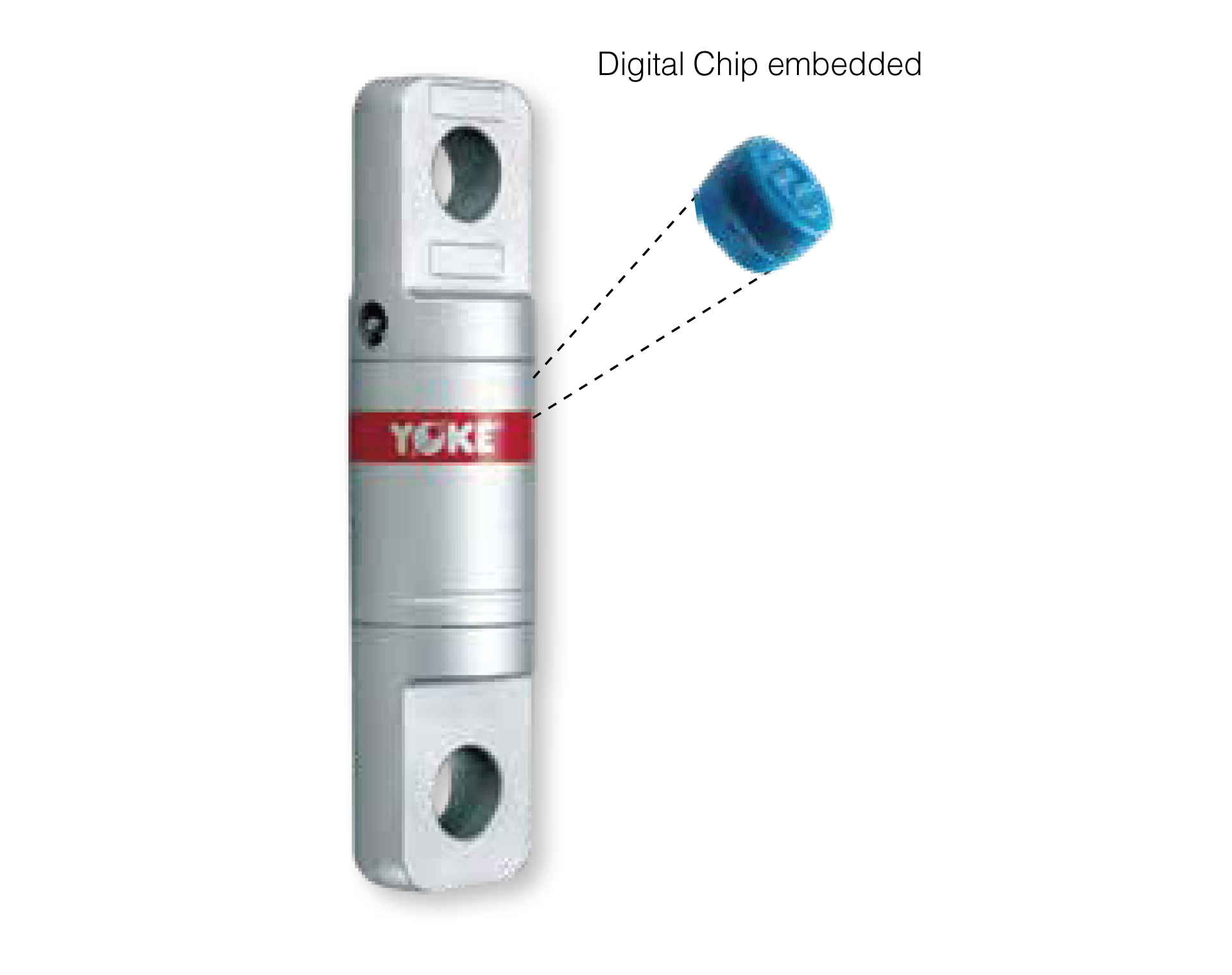

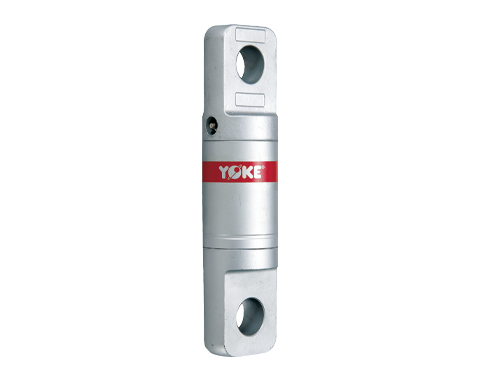

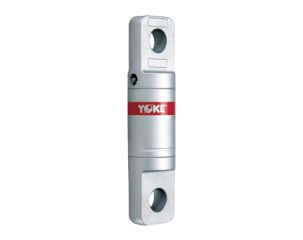

Angular Contact Bearing Swivels - Eye + Eye
Item No.8-306
● YOKE Swivels are manufactured using the
highest grade of material available.
● YOKE Swivels are designed with a safety
factor of 5:1.
● YOKE Swivels are available in sizes from 0.75 tonnes to
25 tonnes.
● YOKE Swivels are available for wire lines 1/4" to 1 1/4".
● YOKE Swivels are zinc plated for corrosion
resistance and longer life.
● YOKE Swivels are manufactured with grease
fittings for superior performance.
● YOKE Swivels are designed for low starting
torque and high rotation speed.
● All Swivels parts are 100% magnaflux crack
detected.
● 20,000 cycle fatigue rate to 1.5 times working
load limit.
● All parts with batch number for quality
certified and traceability.
highest grade of material available.
● YOKE Swivels are designed with a safety
factor of 5:1.
● YOKE Swivels are available in sizes from 0.75 tonnes to
25 tonnes.
● YOKE Swivels are available for wire lines 1/4" to 1 1/4".
● YOKE Swivels are zinc plated for corrosion
resistance and longer life.
● YOKE Swivels are manufactured with grease
fittings for superior performance.
● YOKE Swivels are designed for low starting
torque and high rotation speed.
● All Swivels parts are 100% magnaflux crack
detected.
● 20,000 cycle fatigue rate to 1.5 times working
load limit.
● All parts with batch number for quality
certified and traceability.

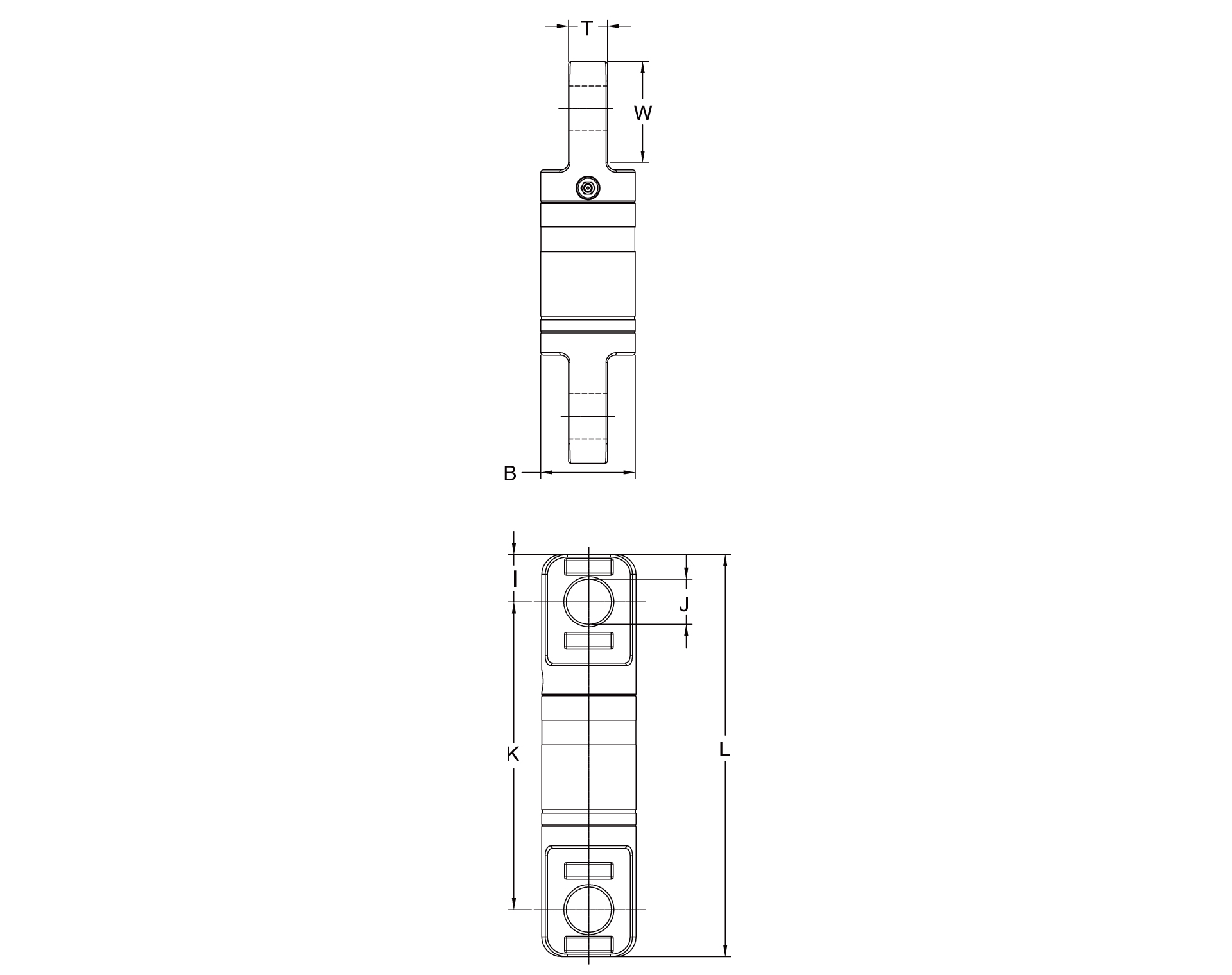

| Item NO. | Compare | Working Load Limit | For Grade 80 Chain | Dimensions | N.W. | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | mm | B | I | J | K | L | T | W | kg | ||
| 8-306-0075 | Compare | 0.75 | 6 | 32 | 18 | 19 | 103 | 139 | 12 | 37 | 0.5 |
| 8-306-015 | Compare | 1.5 | 10 | 41 | 16 | 17 | 105 | 137 | 13 | 34 | 0.86 |
| 8-306-03 | Compare | 3 | 13 | 51 | 25 | 23 | 156 | 207 | 19 | 47 | 1.98 |
| 8-306-05 | Compare | 5 | 16 | 64 | 30 | 33 | 198 | 259 | 25 | 61 | 3.83 |
| 8-306-085 | Compare | 8.5 | 19 | 76 | 38 | 36 | 236 | 313 | 32 | 78 | 7.1 |
| 8-306-10 | Compare | 10 | 22 | 102 | 46 | 42 | 353 | 445 | 44 | 121 | 16.5 |
| 8-306-15 | Compare | 15 | 25 | 108 | 64 | 54 | 316 | 443 | 49 | 110 | 21 |
| 8-306-25 | Compare | 25 | 32 | 132 | 70 | 66 | 407 | 547 | 59 | 145 | 39 |
| Item NO. | Compare | Working Load Limit | For Grade 80 Chain | Dimensions | N.W. | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | inch | B | I | J | K | L | T | W | lbs | ||
| 8-306-0075 | Compare | 0.75 | 1/4 | 1.26 | 0.71 | 0.75 | 4.06 | 5.47 | 0.47 | 1.46 | 1.1 |
| 8-306-015 | Compare | 1.5 | 3/8 | 1.61 | 0.63 | 0.66 | 4.15 | 5.41 | 0.5 | 1.32 | 1.9 |
| 8-306-03 | Compare | 3 | 1/2 | 2.01 | 1 | 0.91 | 6.14 | 8.15 | 0.75 | 1.85 | 4.4 |
| 8-306-05 | Compare | 5 | 5/8 | 2.52 | 1.19 | 1.28 | 7.81 | 10.2 | 1 | 2.42 | 8.4 |
| 8-306-085 | Compare | 8.5 | 3/4 | 2.99 | 1.5 | 1.41 | 9.31 | 12.31 | 1.25 | 3.06 | 15.6 |
| 8-306-10 | Compare | 10 | 7/8 | 4.02 | 1.81 | 1.66 | 13.9 | 17.52 | 1.73 | 4.76 | 36.3 |
| 8-306-15 | Compare | 15 | 1 | 4.25 | 2.52 | 2.13 | 12.44 | 17.44 | 1.93 | 4.33 | 46.3 |
| 8-306-25 | Compare | 25 | 1 1/4 | 5.2 | 2.76 | 2.6 | 16.02 | 21.54 | 2.36 | 5.12 | 85.9 |
