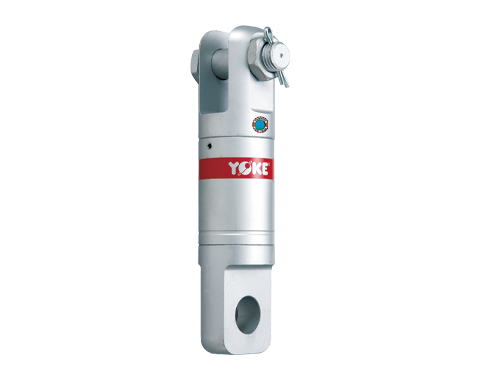

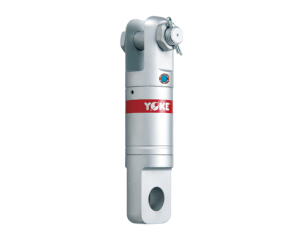

Angular Contact Bearing Swivels - Jaw + Eye
Item No.8-304
● YOKE Swivels are manufactured using the highest
grade of material available.
● YOKE Swivels are designed with a safety factor of 5:1.
● YOKE Swivels are available in sizes from 0.75 tonnes to 25
tonnes.
● YOKE Swivels are available for wire lines 1/4" to 1 1/4".
● YOKE Swivels are zinc plated for corrosion resistance
and longer life.
● YOKE Swivels are manufactured with grease fittings for
superior performance.
● YOKE Swivels are designed for low starting torque and
high rotation speed.
● All Swivels parts are 100% magnaflux crack detected.
● 20,000 cycle fatigue rate to 1.5 times working load limit.
● All parts with batch number for quality certified and
traceability.
grade of material available.
● YOKE Swivels are designed with a safety factor of 5:1.
● YOKE Swivels are available in sizes from 0.75 tonnes to 25
tonnes.
● YOKE Swivels are available for wire lines 1/4" to 1 1/4".
● YOKE Swivels are zinc plated for corrosion resistance
and longer life.
● YOKE Swivels are manufactured with grease fittings for
superior performance.
● YOKE Swivels are designed for low starting torque and
high rotation speed.
● All Swivels parts are 100% magnaflux crack detected.
● 20,000 cycle fatigue rate to 1.5 times working load limit.
● All parts with batch number for quality certified and
traceability.

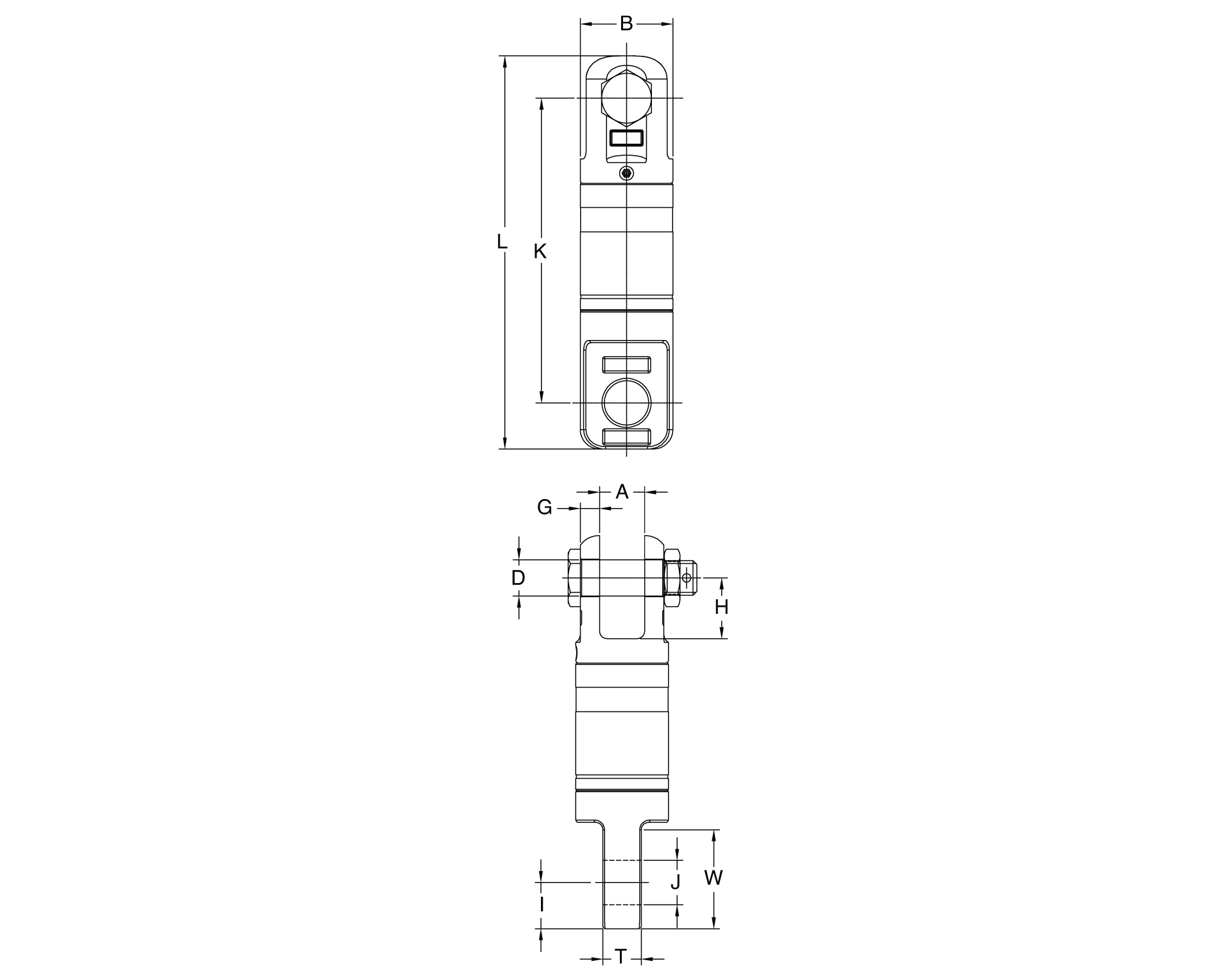

| Item NO. | Compare | Working Load Limit | For Grade 80 Chain | Dimensions | N.W. | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | mm | A | B | D | G | H | I | J | K | L | T | W | kg | ||
| 8-304-0075 | Compare | 0.75 | 6 | 15.0 | 32 | 10.0 | 6.0 | 22.0 | 18 | 19.0 | 103 | 134 | 12 | 37 | 0.5 |
| 8-304-015 | Compare | 1.50 | 10 | 13.0 | 41 | 13.0 | 8.0 | 20.0 | 16 | 17.0 | 104 | 138 | 13 | 34 | 0.9 |
| 8-304-03 | Compare | 3.00 | 13 | 19.0 | 51 | 19.0 | 10.0 | 30.0 | 25 | 23.0 | 157 | 206 | 19 | 47 | 2.1 |
| 8-304-05 | Compare | 5.00 | 16 | 25.0 | 64 | 22.0 | 14.0 | 40.0 | 30 | 33.0 | 199 | 259 | 25 | 61 | 4.1 |
| 8-304-085 | Compare | 8.50 | 19 | 40.0 | 76 | 30.0 | 14.0 | 54.0 | 38 | 36.0 | 243 | 315 | 32 | 78 | 7.1 |
| 8-304-10 | Compare | 10.00 | 22 | 44.0 | 102 | 38.0 | 21.0 | 89.0 | 46 | 42.0 | 354 | 445 | 44 | 121 | 17.6 |
| 8-304-15 | Compare | 15.00 | 25 | 48.0 | 108 | 38.0 | 25.0 | 57.0 | 64 | 54.0 | 317 | 434 | 49 | 110 | 21.6 |
| 8-304-25 | Compare | 25.00 | 32 | 62.0 | 132 | 51.0 | 30.0 | 70.0 | 70 | 66.0 | 390 | 524 | 60 | 130 | 39.7 |
| Item NO. | Compare | Working Load Limit | For Grade 80 Chain | Dimensions | N.W. | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| tonnes | inch | A | B | D | G | H | I | J | K | L | T | W | lbs | ||
| 8-304-0075 | Compare | 0.75 | 1/2 | 0.59 | 1.26 | 0.39 | 0.24 | 0.87 | 0.71 | 0.75 | 4.06 | 5.28 | 0.47 | 1.46 | 1.1 |
| 8-304-015 | Compare | 1.50 | 3/8 | 0.51 | 1.61 | 0.50 | 0.30 | 0.79 | 0.63 | 0.66 | 4.09 | 5.43 | 0.50 | 1.32 | 2.0 |
| 8-304-03 | Compare | 3.00 | 1/2 | 0.75 | 2.01 | 0.75 | 0.38 | 1.18 | 1.00 | 0.91 | 6.19 | 8.11 | 0.75 | 1.85 | 4.6 |
| 8-304-05 | Compare | 5.00 | 5/8 | 0.98 | 2.52 | 0.87 | 0.55 | 1.57 | 1.19 | 1.28 | 7.83 | 10.20 | 1.00 | 2.42 | 9.0 |
| 8-304-085 | Compare | 8.50 | 3/4 | 1.57 | 2.99 | 1.18 | 0.55 | 2.13 | 1.50 | 1.41 | 9.56 | 12.39 | 1.25 | 3.06 | 15.6 |
| 8-304-10 | Compare | 10.00 | 7/8 | 1.73 | 4.02 | 1.50 | 0.83 | 3.50 | 1.81 | 1.65 | 13.94 | 17.52 | 1.73 | 4.76 | 38.8 |
| 8-304-15 | Compare | 15.00 | 1 | 1.89 | 4.25 | 1.50 | 0.98 | 2.24 | 2.52 | 2.13 | 12.48 | 17.09 | 1.93 | 4.33 | 47.6 |
| 8-304-25 | Compare | 25.00 | 1 1/4 | 2.44 | 5.20 | 2.01 | 1.18 | 2.76 | 2.76 | 2.60 | 15.35 | 2.60 | 2.36 | 5.12 | 87.4 |
